Product Introduction
Perfect Laser is a world leading manufacturer for CNC routers.

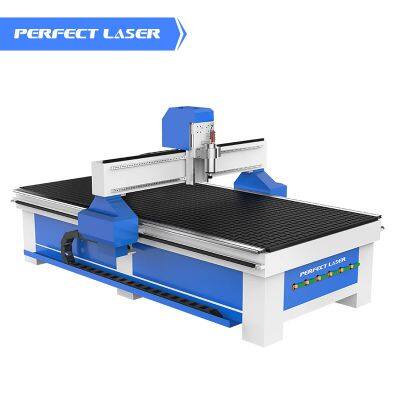

PE-1325 CNC routers are designed for Ads industry with pure aluminum, which ensures the parallelism and greatly increases the precision and speed of the engine bed.
It is a CNC routers for woodworking and can be applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics.
It covers main sizes of marks and labels in the market.

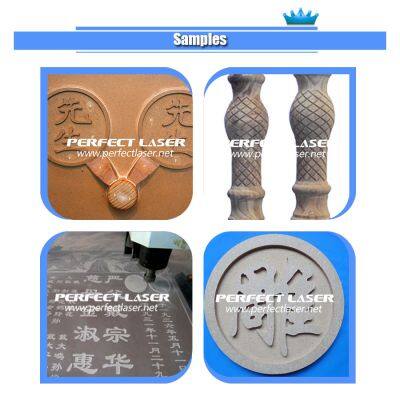

It can cut through MDF, wood, acrylic with thickness of 20-25mm one time and can be applied to large-scale relief, too.1325 CNC routers are doubtlessly a perfect product in the range of advertising.

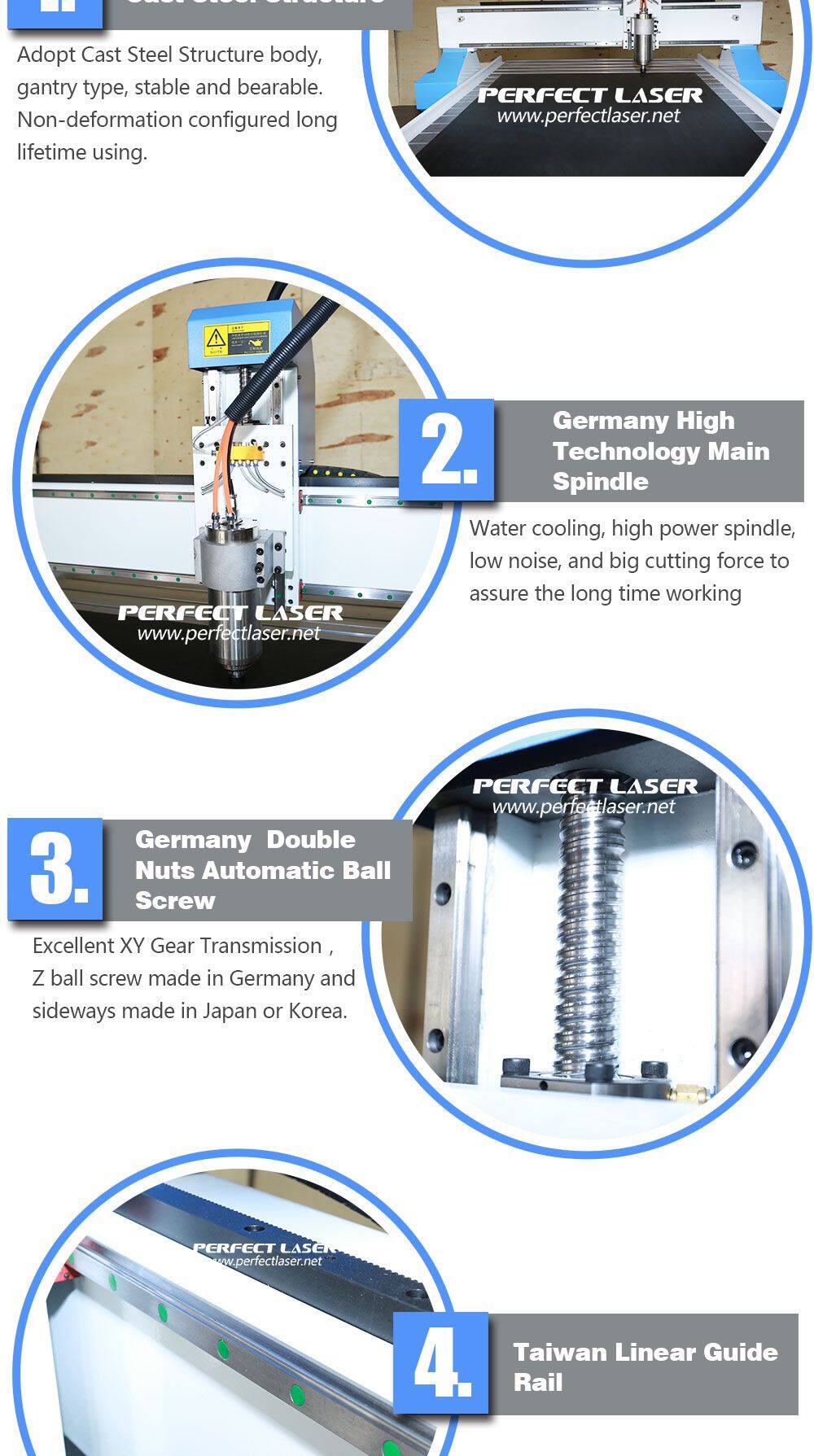

Product Features

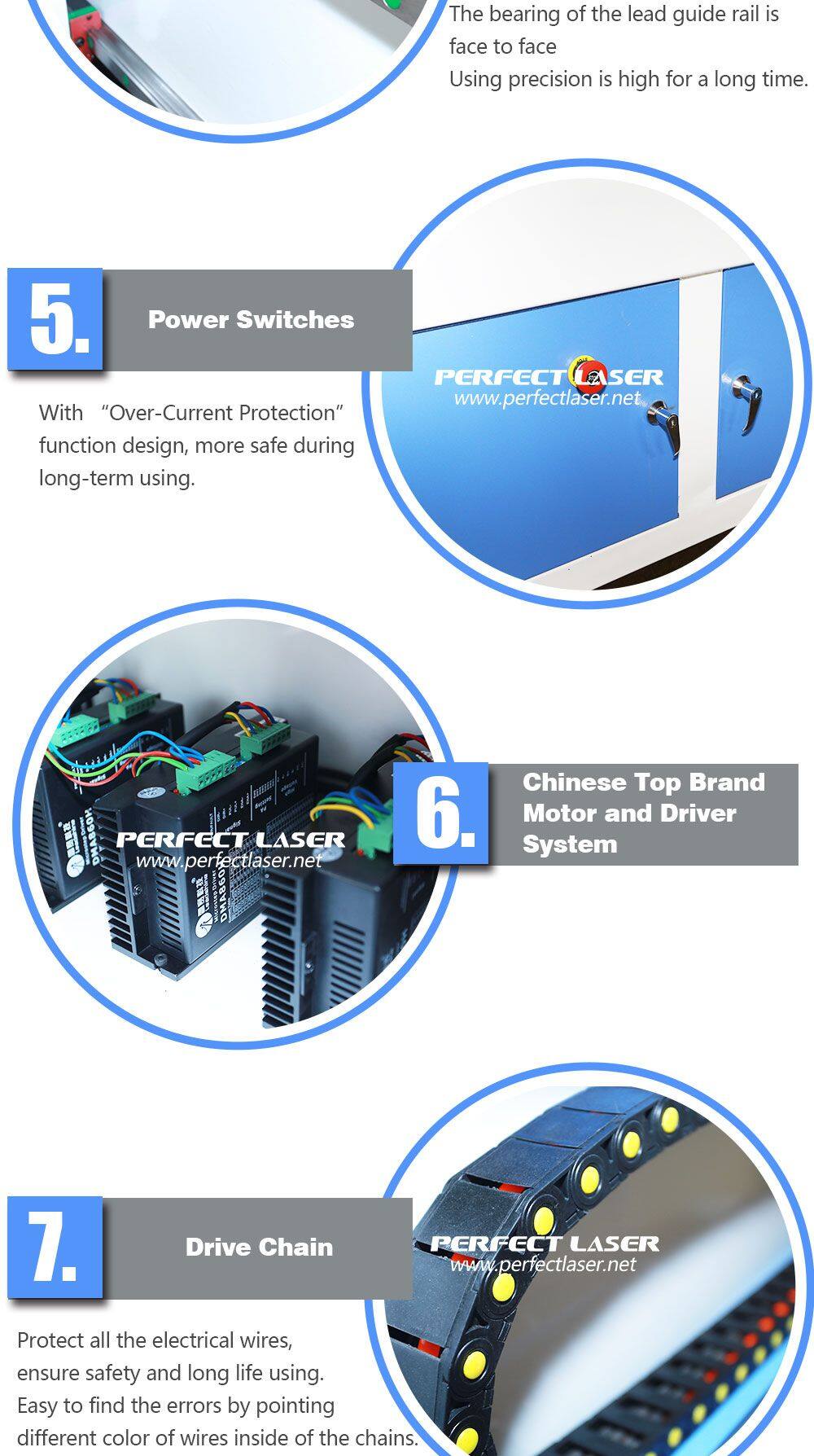

1. Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.
2. Germany double nuts automatic ball screw, Excellent two-bolt pole made in Germany and sideways made in Japan or Korea.
3. Advanced DSP digit-control system (optional item), handle operation and large liquid crystal display brings out more convenient operation, easier maintenance and more human nature on the design of the machine.

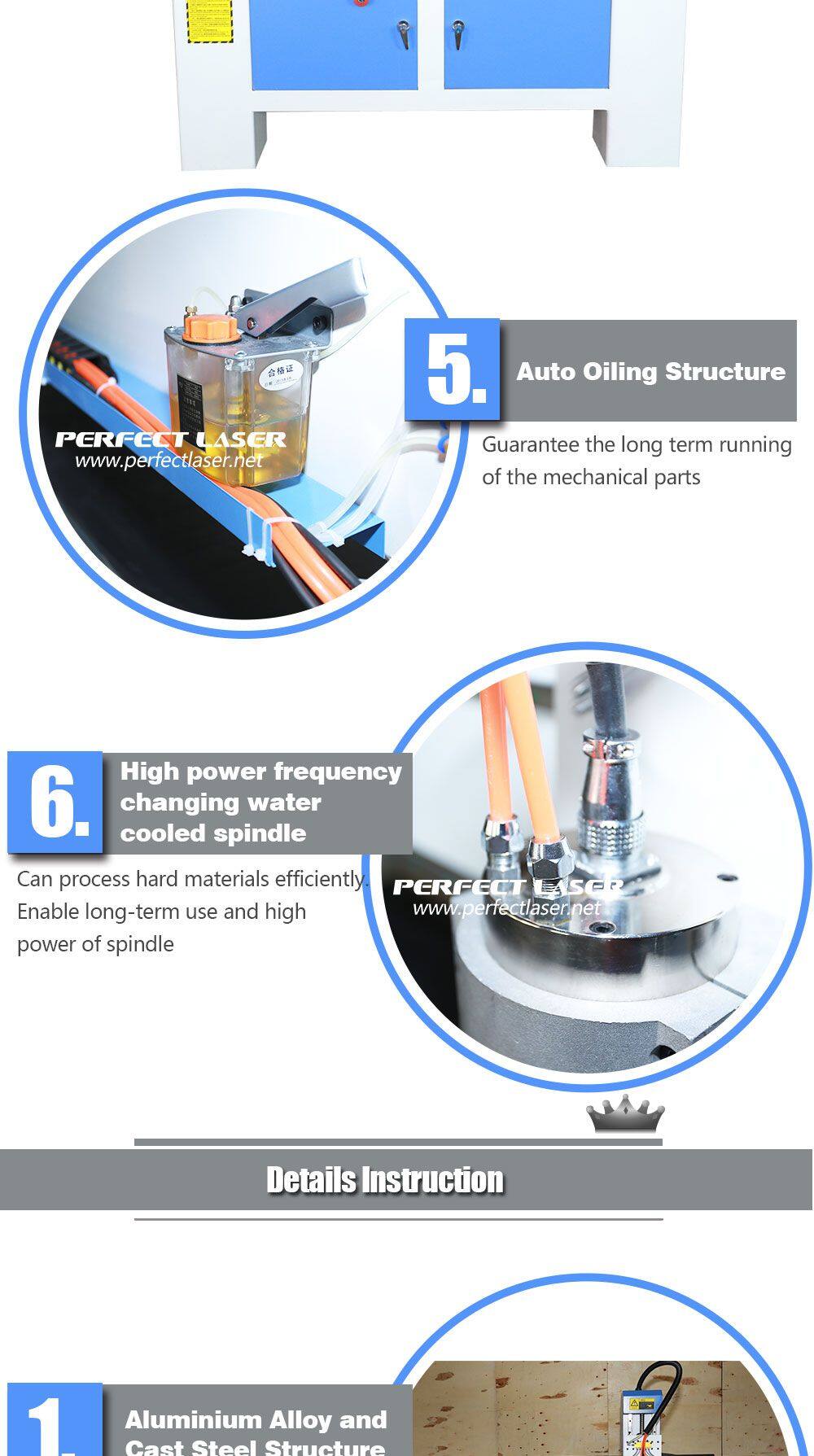

4. No dust oiling structure, guarantee the long term running of the mechanical aspect.

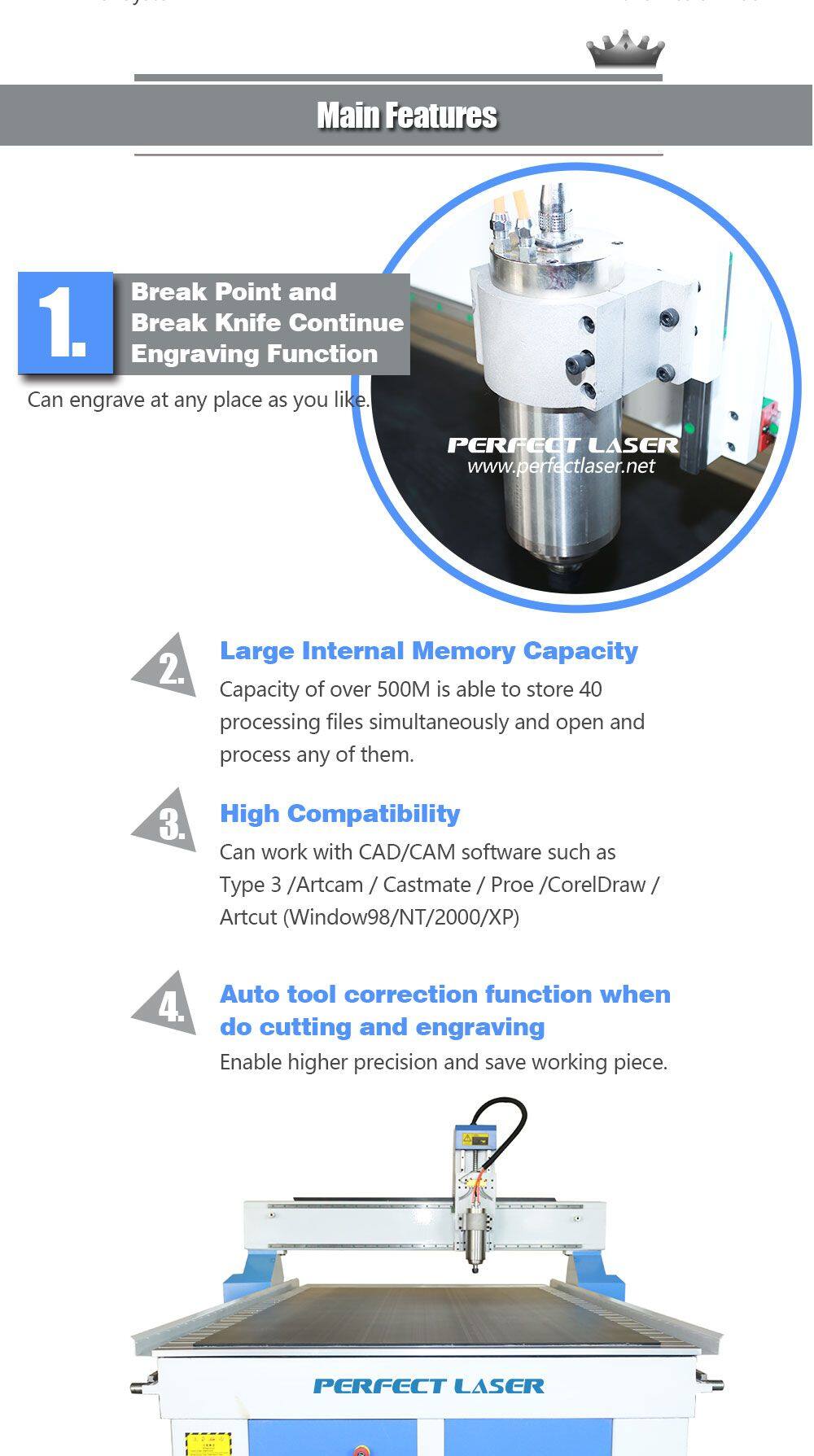

5. Break point and break knife continue engraving function, can engrave at any place as you like
6. The compatibility of cnc router cutting machine is high, CAD/CAM software such as Type 3 /Art Arm / Castmate / Proe /CorelDraw /Art cut.
7. High power frequency changing water cooled spindle, can process hard materials efficiently.
8. Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them
9. Reinforced load-bearing bed,Precision round rail,Spindle motor 1.5kw /2.2kw/3kw/4.5kw CNC router, Screw drive, heavy steel platform, Auto water cycle, Enlarge driver, 10 pcs stone use knives for free. It can be sued as aluminum cnc router.
10. It can be also called 1325 CNC routers,CNC routers for woodworking,wood CNC engraving machine,aluminum CNC router, 3kw CNC router, 4.5kw CNC routers.

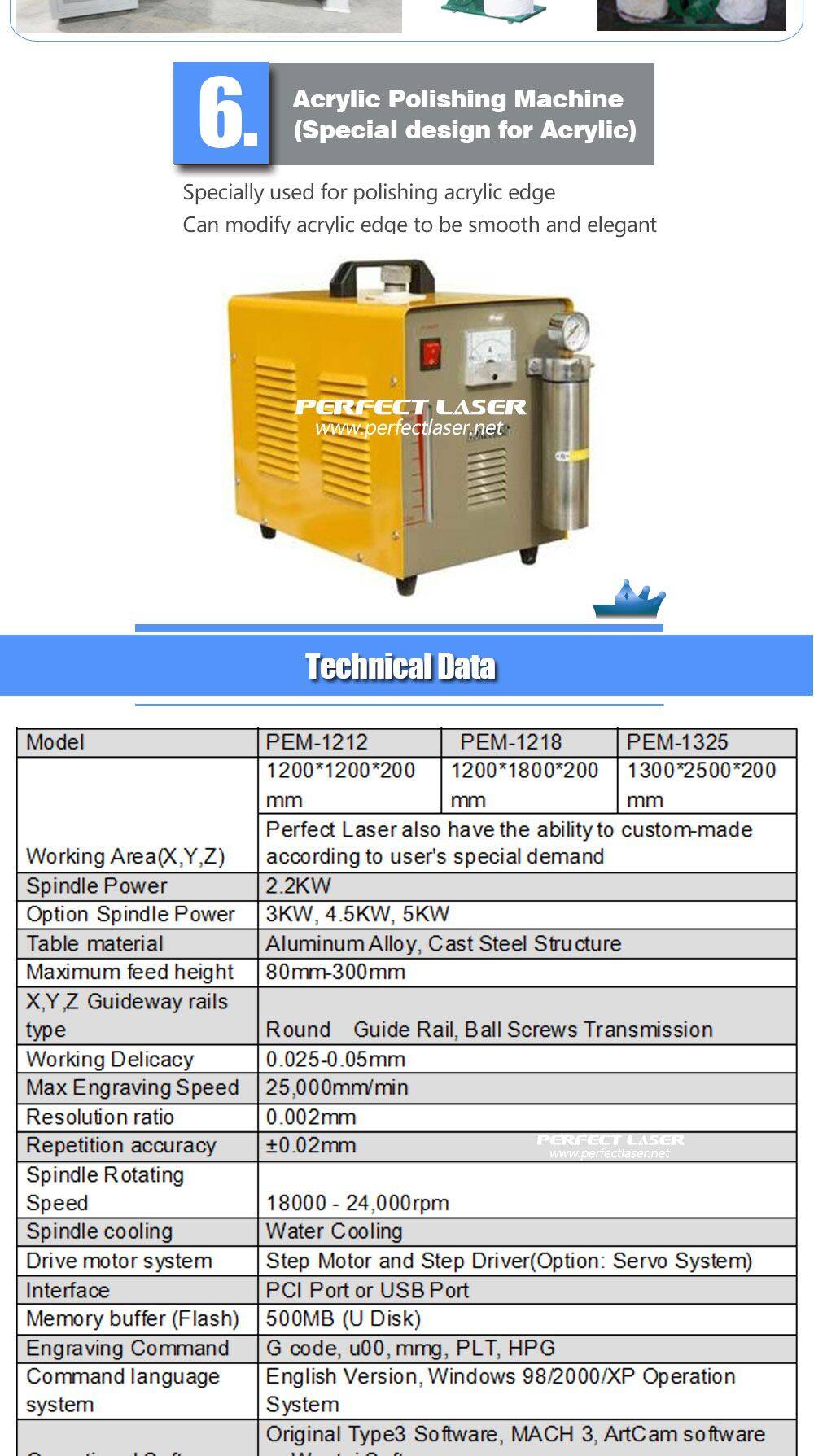

Technical Data
Product |
Advertising CNC Router |
||
Model |
PE-1325 (1300*2500mm) |
||
Power |
2.2kw |
3kw |
4.5kw |
Table material |
Aluminum Alloy |
||
Maximum feed height |
80mm |
||
X,Y,Z Guideway rails type |
Round Shape Guide Rail, Rod Transmission |
||
Max engraving speed |
4,000-7,000mm/min |
||
Resolution ratio |
0.002mm |
||
Repetition accuracy |
±0.02mm |
||
Spindle power |
1.5kw (Optional 2.2kw, 3kw,4.5kw) |
||
Spindle rotating Speed |
6000 - 24,000rpm |
||
Spindle cooling |
Water Cooling |
||
Drive motor system |
Step Motor and Step Driver |
||
Interface |
PCI Port or USB Port |
||
Memory buffer (Flash) |
128MB |
||
Engraving command |
G code, u00, mmg, PLT, HPG |
||
Command language system |
English Version, Windows 98/2000/XP Operation System |
||
Operational Software |
Original Type3 Software, ArtCam software or Wentai Software |
||
Command language system |
English Version, Windows 98/2000/XP Operation System |
||
Software compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
||
Working temperature |
0-45 |
||
Relative humidity |
30% - 75% |
||
