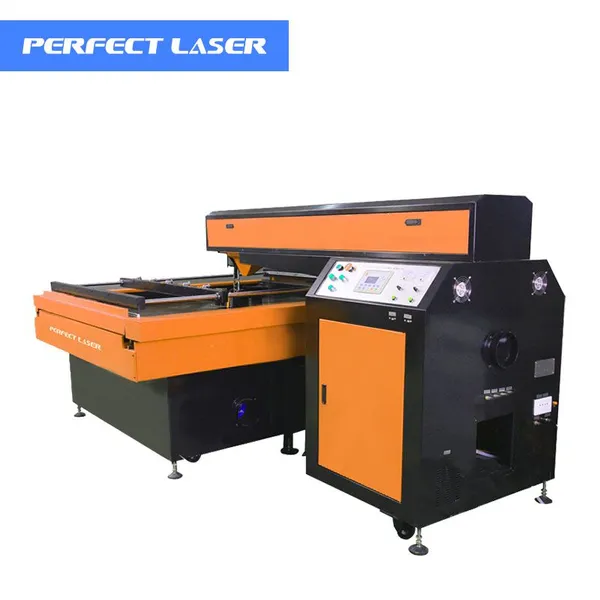

Help CenterWholesale Factory Price Making Template Die Board Auto-Feeding Cnc Co2 Plywood Laser Cutting Machine
Related Products
-
300W 400W 600W Flat Laser Making Machine Wood Board CNC Die Cutting Template Cutting Machine Machinery For Wood Dying 18mm MDFUS$ 12500 - 15500MOQ: 1 Piece -
Factory Price 400W 600W 18mm MDF CNC Laser Cutting Machine For Die Board MakingUS$ 12500 - 15500MOQ: 1 Piece
-
Perfect Laser-18MM Plywood MDF Cutter 400W 600W CO2 Laser Die Board Cutting Machine Laser CutterUS$ 22500 - 35500MOQ: 1 Piece
-
Perfect Laser 400W 600W Dies Board Laser Punch Cutting Machine Cutter For Laser Die MakingUS$ 22500 - 35500MOQ: 1 Piece
-
Perfect Laser 1000W Large Area High-precision Wood Die Board Laser Cutting Machines for Die Board Laser CuttingUS$ 22500 - 35500MOQ: 1 Piece

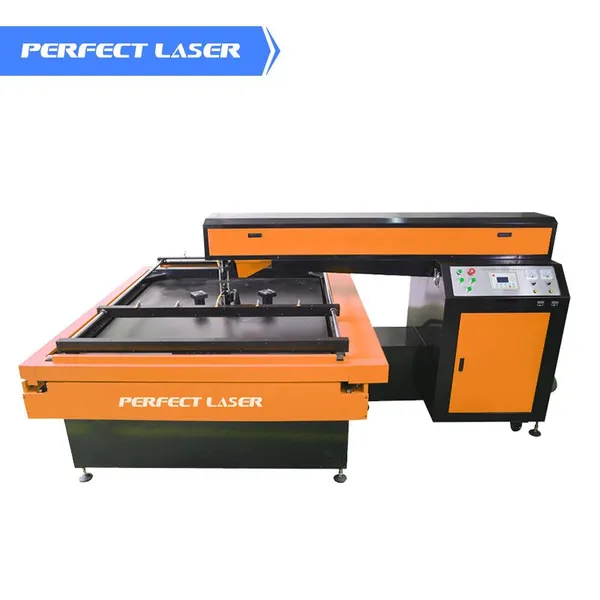

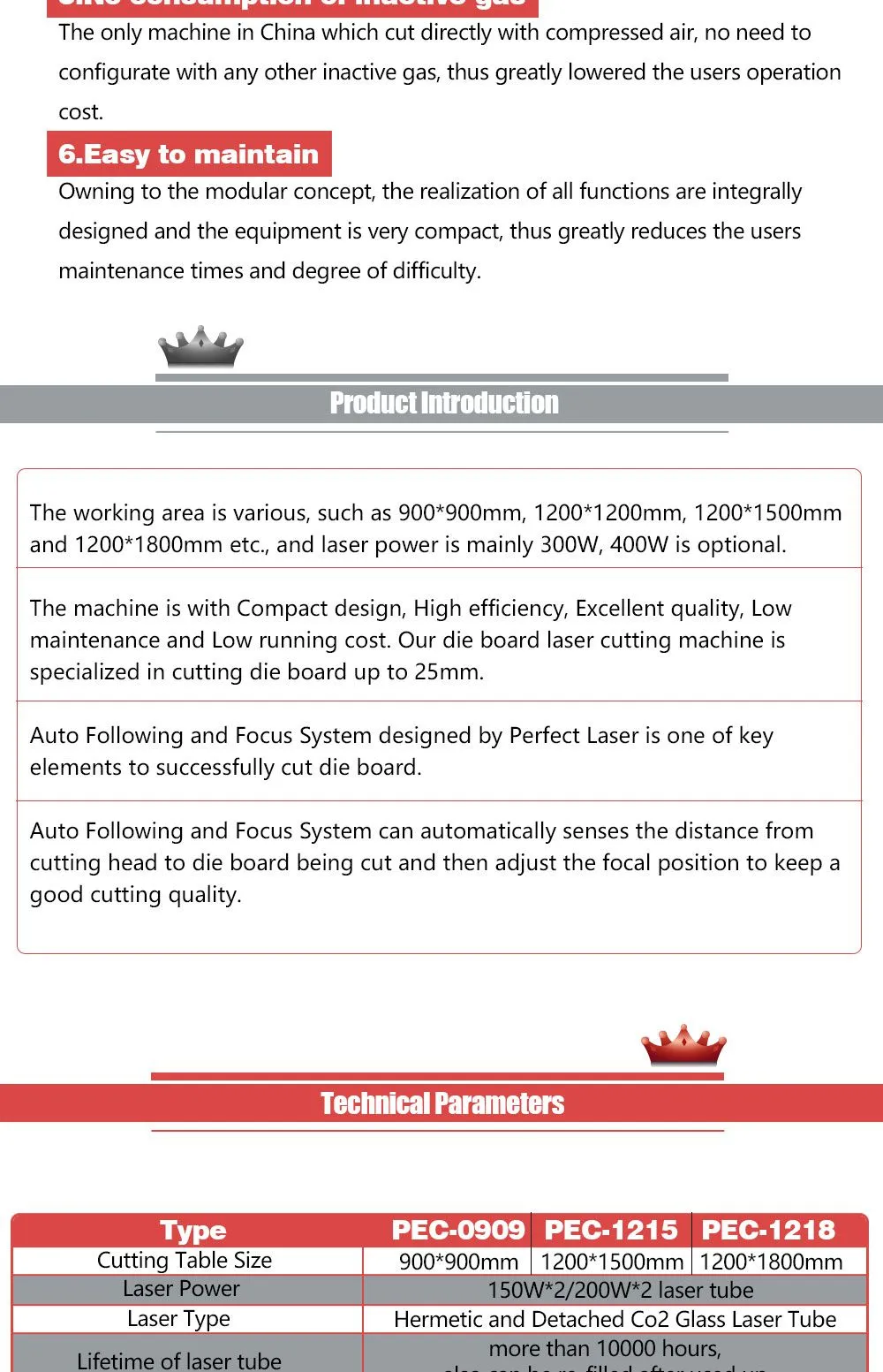

Product Introduction

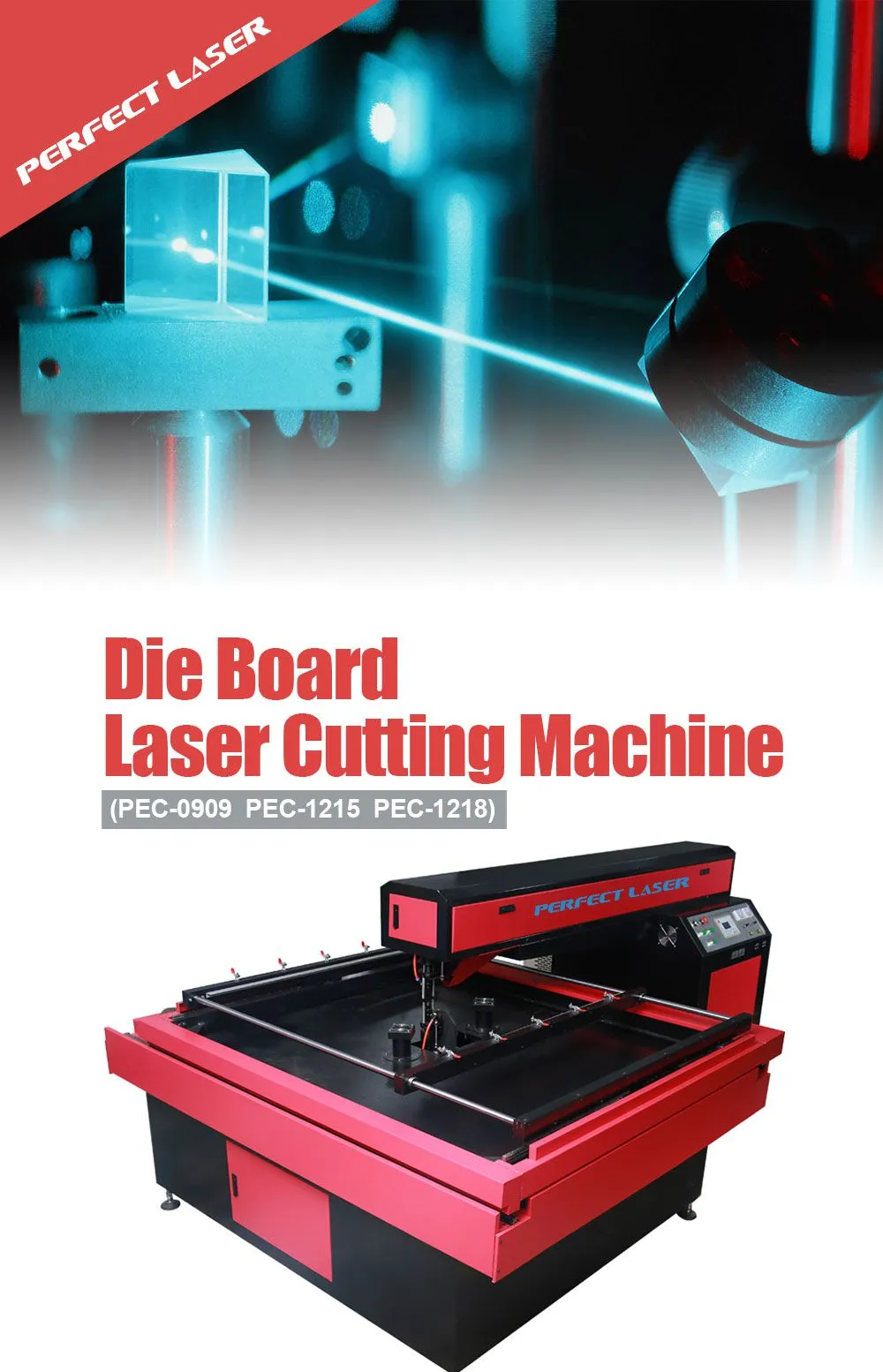

Perfect Laser is the world famous manufacturers for die board laser cutting machine.
Perfect laser die cutting machine is specialized in cutting die board up to 20mm-25mm, with high efficiency, excellent quality, low maintenance and low running cost, widely applicable for packaging, advertising Industry. We provide 300w laser cutting machine and 400w laser cutting machine for you to choose.

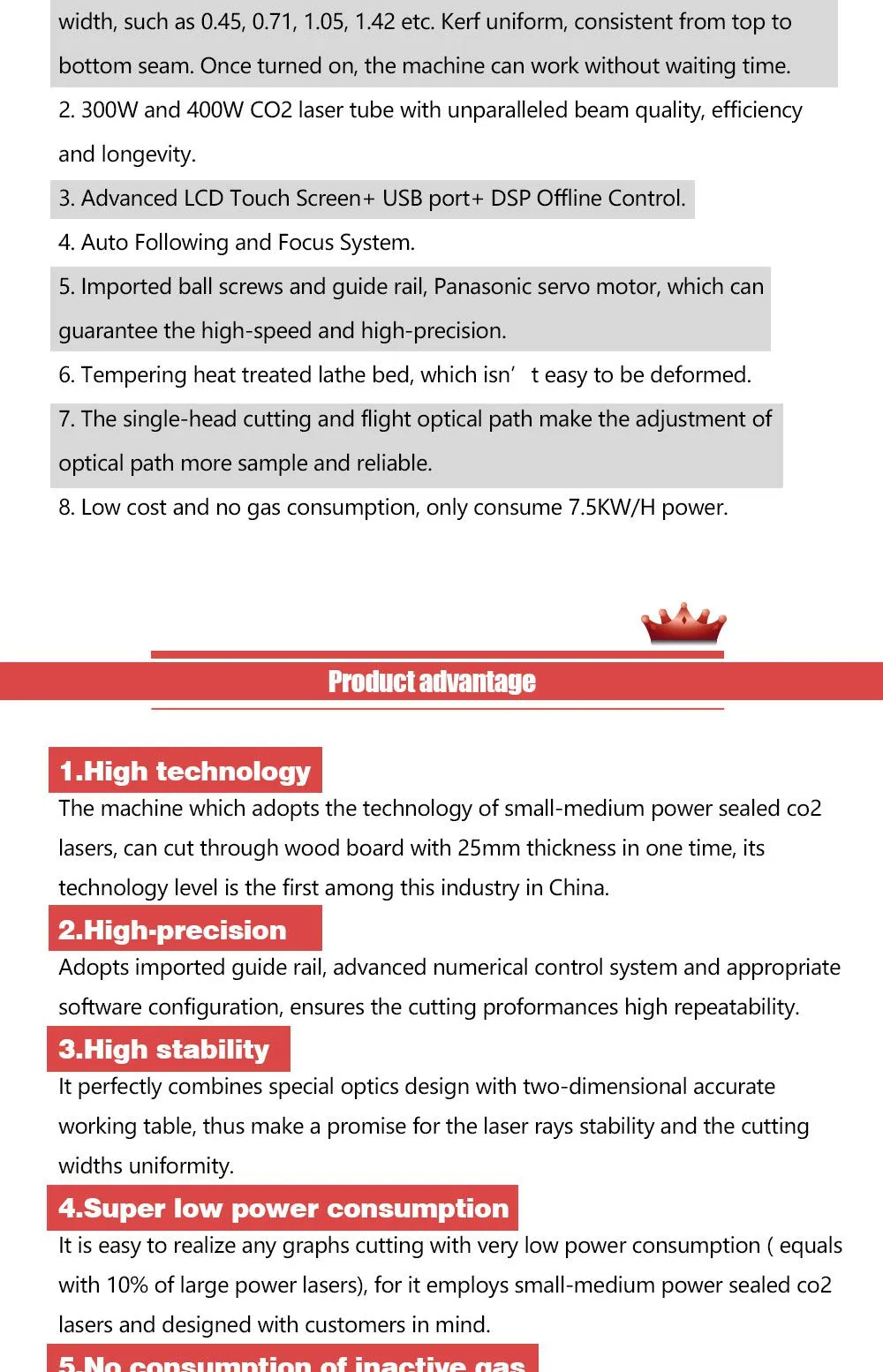

Product Features

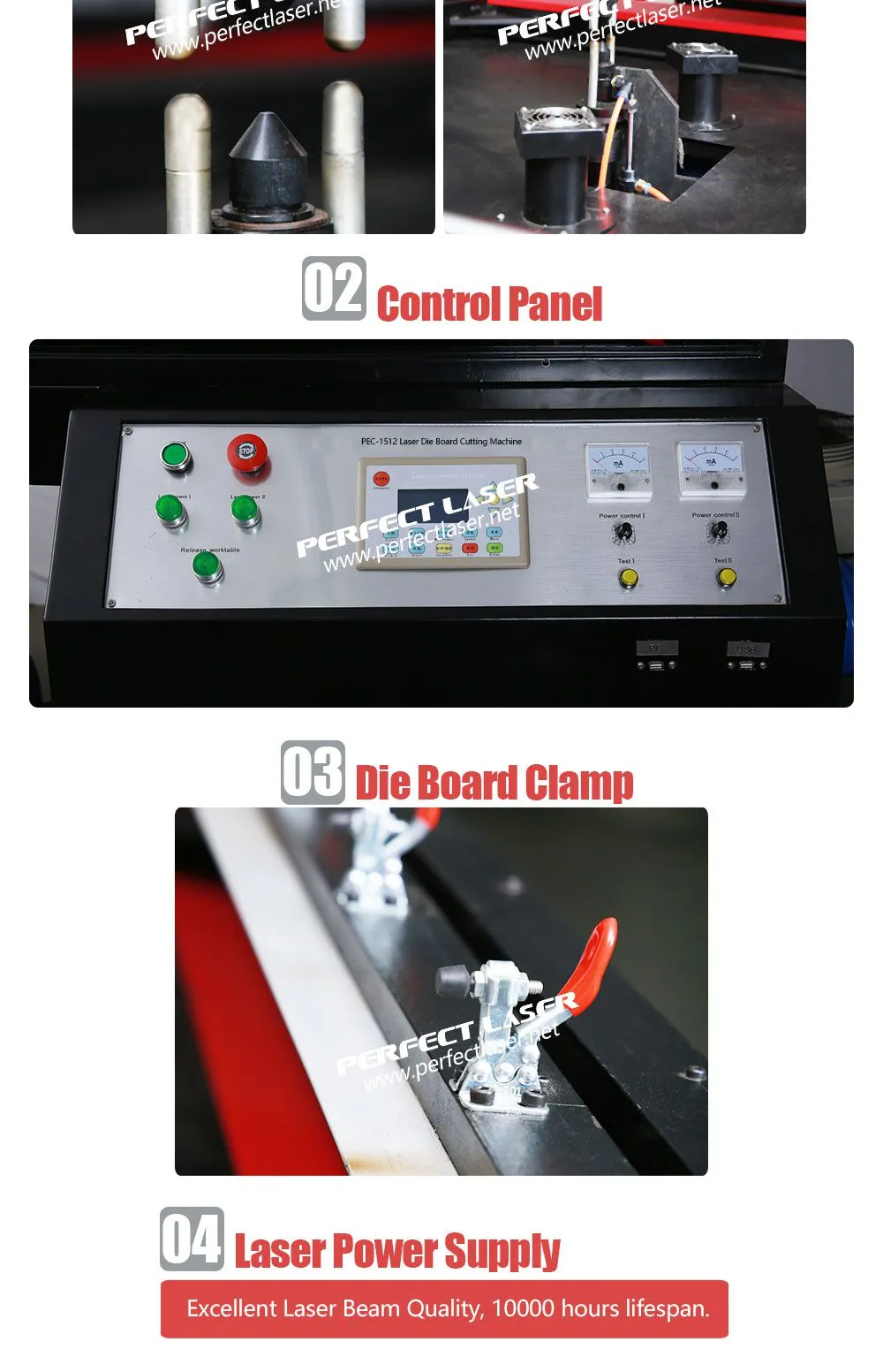

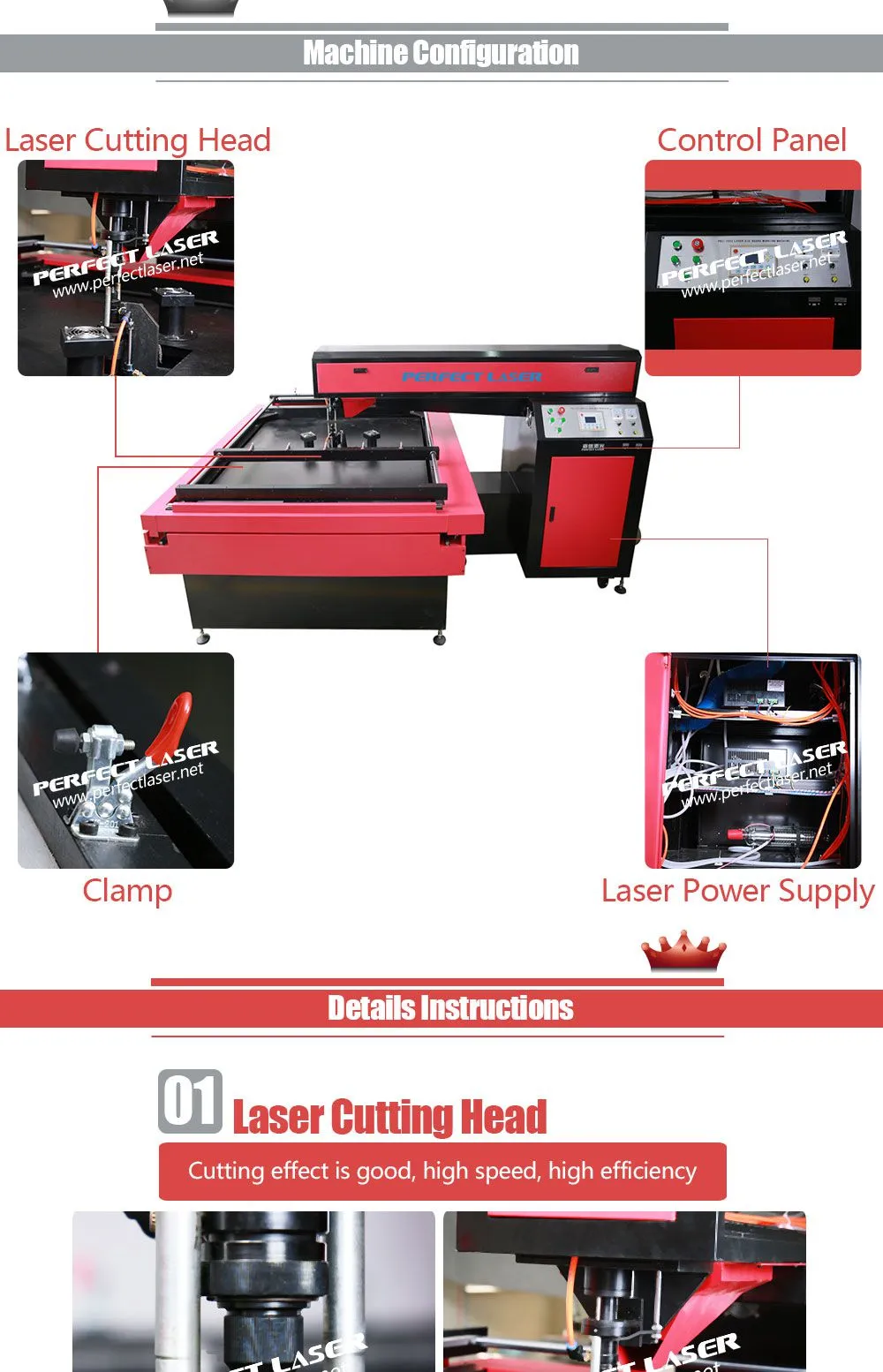

1. Adopt automatic following and focusing system,and it can automatically senses the distance from cutting head to die board surface and adjust the focus distance to keep a good cutting quality.
2. The die cutting machine also can be called plywood cutting machine.It is for die board install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced double laser heads coaxial cutting technology, which makes the plywood cutting machine can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched 2D accurate working table insure the high stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn’t easy to be deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut arbitrary width by the plywood cutting machine, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
7. The wooden die board laser cutting directly with compressed air, and the plywood cutting machine doesn't need to buy any other inactive gas, greatly lowered the users operation cost.

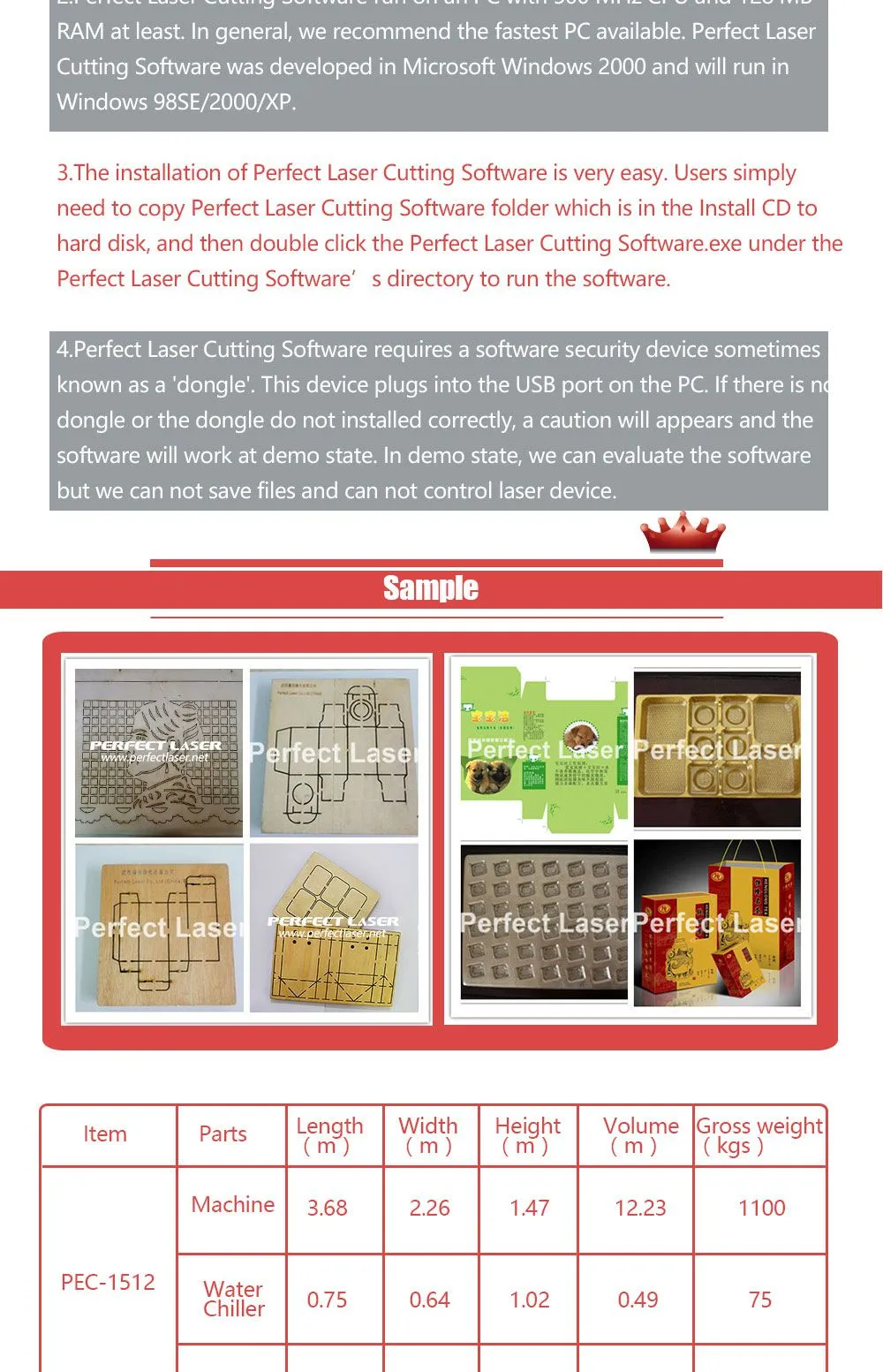

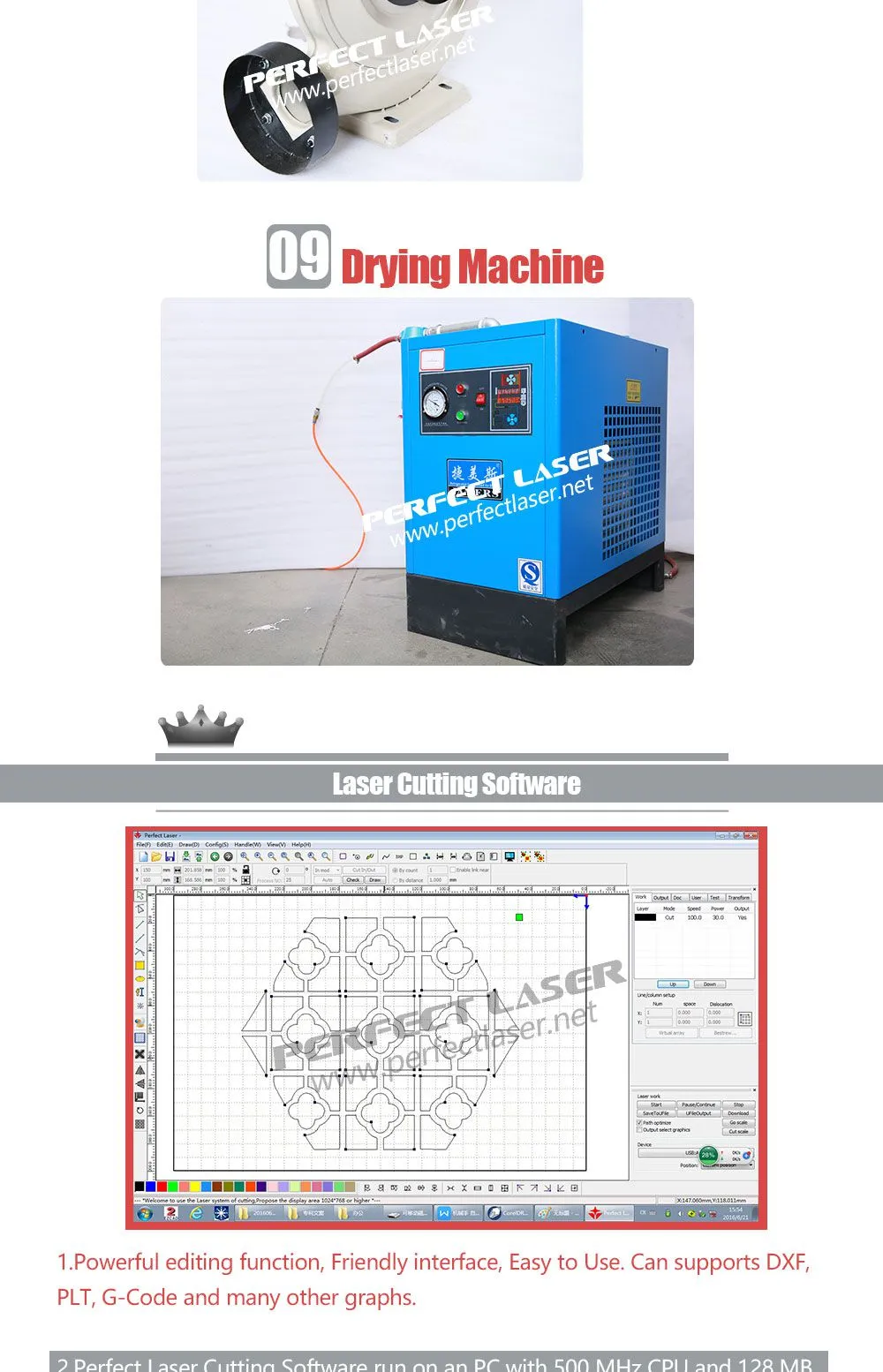

8. Adopt profession software, which is particularly designed for die cutting machine, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.
Application

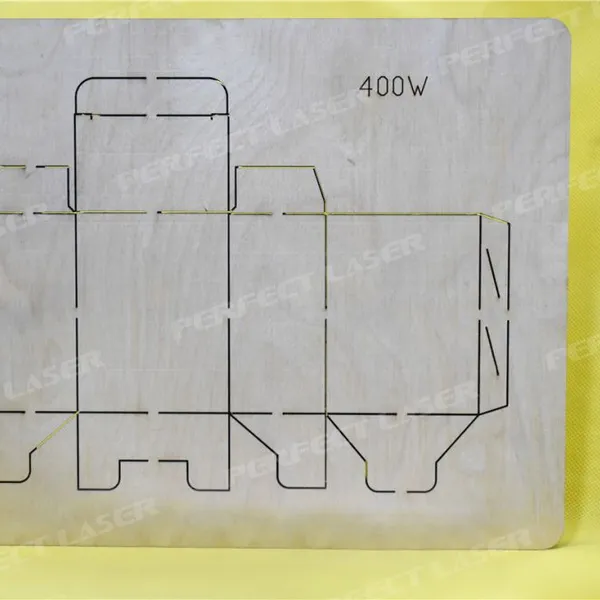

The plywood cutting machine is mainly used in 20-25mm die board cutting. It's also can be used to do MDF cutting, wood cutting, bamboo cutting, plywood cutting, acrylic cutting, organic glass cutting, plastic cutting, PVC board cutting, plexiglass cutting etc. materials cutting.
Application Industry: die cutting machine can be used in packages, advertisement, handicrafts and other industries.
The plywood cutting machine also can be called as die cutting machine,die cut wood,plywood cutting machine,300w laser cutting machine,400w laser cutting machine.
Technical Data
Model |
PEC-0909 |
PEC-1215 |
PEC-1218 |
Cutting Table Size |
900×900mm |
1200×1500mm |
1200×1800mm |
Laser Type |

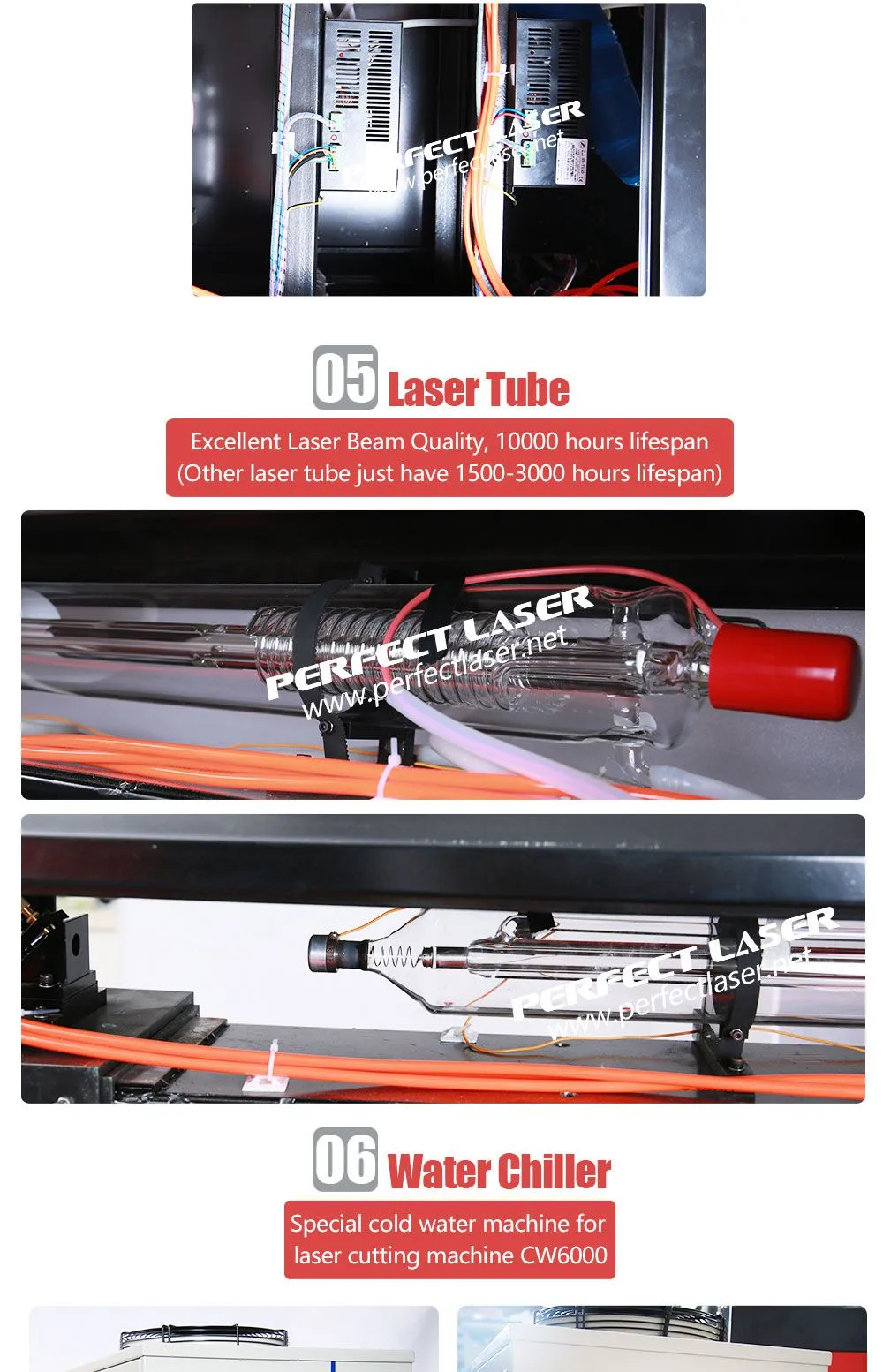

CO2 Glass Laser Tube |
||
Lifetime of Laser Tube |
W8:≥10000 Hours W6:>15000 Hours |
||
Cooling Mode |
Water Cooling and Protection System |
||
Cutting Speed |
0-6000mm/min |
||
Repeated Position Precision |
±0.01mm |
||
Maximum Cutting Depth |
22mm |
||
Cutting Width |
0.35mm - 0.75mm Adjustable >0.75mm Adjustable |
||
Support Format |
HPGI,PLT,AI,DXF etc. |
||
Controlling Software |
Hangzhou Times |
||
Fixture Type |
Pneumatic |
||
Compatible Software |
Core Draw,Auto CAD,Photoshop |
||
Driving System |
Standard:Domestic Motor Optional:Japan Panasonic Servo Motor and Drive |
||
Machine Power |
≥7000W |
||
Working Voltage |
AC 220V(+/10%)50-60Hz |
||
Operating Temperature |
0-45℃ |
||
Operating Humidity |
5-95% |
||
