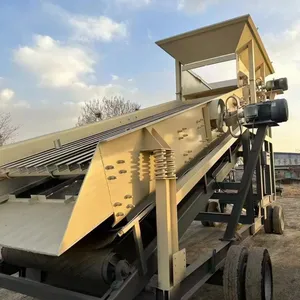

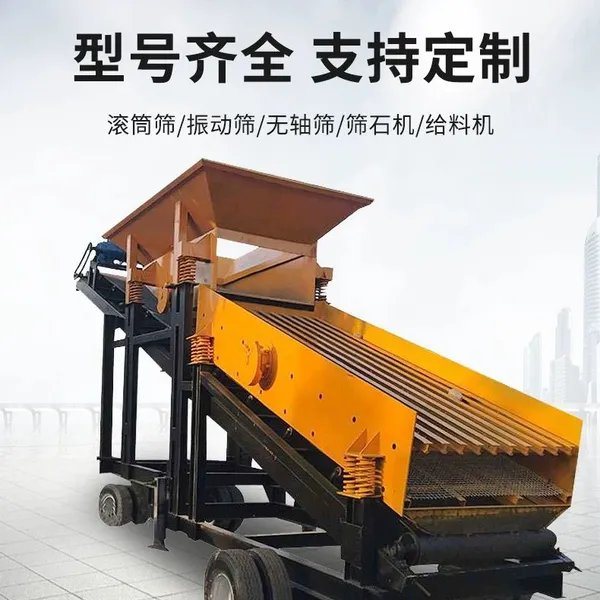

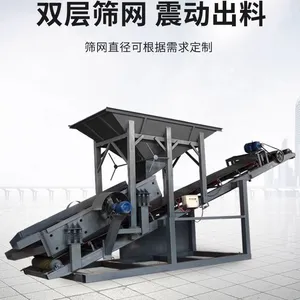

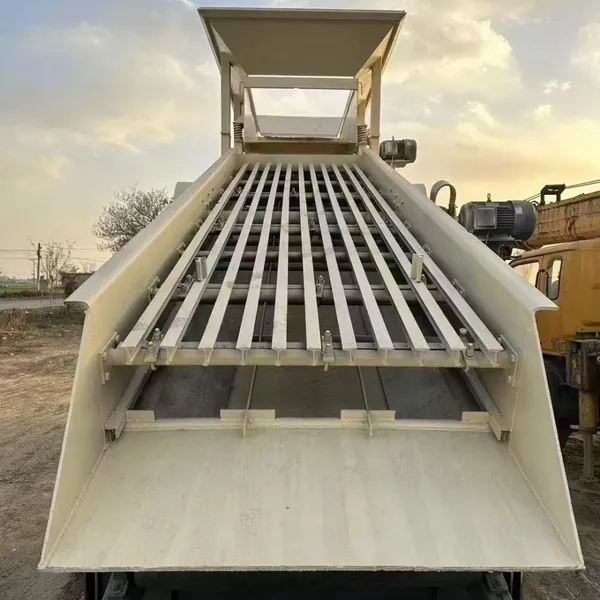

The mobile stone screening machine is a kind of efficient and flexible screening equipment, which is widely used in construction, highways, mines, water conservancy and other engineering projects, and is used to screen sand, ore and other solid materials.
I. Features of the equipment
1. High flexibility: The mobile stone screening machine adopts a mobile design, usually equipped with crawlers or tires, which can easily adapt to various complex terrains and operating environments, and facilitate the transfer between different sites.
Two. Small area: Due to its compact structural design, the mobile stone screener covers a small area and is suitable for operation in a limited space.
3. High screening efficiency: The equipment adopts advanced screening technology, such as vibrating screening or drum screening, which can efficiently separate materials according to particle size and improve screening efficiency and accuracy.
4. Easy to operate: The operation interface of the mobile stone screening machine is simple and clear, and the operator can operate it after simple training, which reduces the difficulty and cost of operation.
II. Equipment structure
The mobile sifting machine is mainly composed of the screening part, the transmission part, the support part and the moving part. Among them, the screening part usually adopts a multi-layer sieve design, and the number of layers and aperture size of the sieve can be adjusted as needed to meet the screening needs of different particle sizes. The transmission part is responsible for driving the sieve to vibrate or rotate to realize the screening of materials. The support part ensures the stability of the equipment during operation. The mobile part enables the equipment to move flexibly between different sites.
III. Working principle
The working principle of the mobile stone screening machine is mainly based on the principle of vibration or drum screening. Take the vibrating screen as an example, the equipment generates an excitation force through the vibration motor, which makes the sieve vibrate, thus throwing the material up and moving forward. During the vibration process, the material smaller than the sieve aperture falls through the sieve and becomes the sub-sieve object; the material larger than the sieve aperture continues to move forward until it is discharged from the end of the sieve and becomes the sieve. Drum screening is through the rotation of the drum, so that the material rolls in the drum and is subjected to the screening effect of the sieve to realize the separation of the material.
IV. Operation and maintenance
1. Pre-operation inspection: Before starting the equipment, the power line, grounding, lubrication of the transmission parts and the working status of the screen plate of the equipment should be checked to ensure that the equipment is in a normal state.
Two. Operation notes: During the operation process, it should be ensured that the feeding is uniform, the force of the discharge should be controlled, and the excessive or excessive discharge should be avoided to damage the sieve. At the same time, the operation status and discharge of the equipment should be regularly observed, and abnormal situations should be detected and dealt with in time.
3. Maintenance: Regularly clean and lubricate the equipment to maintain the good operating condition of the equipment. At the same time, the wear of the screen, transmission parts and other consumable parts should be checked regularly, and replaced or repaired in time.
