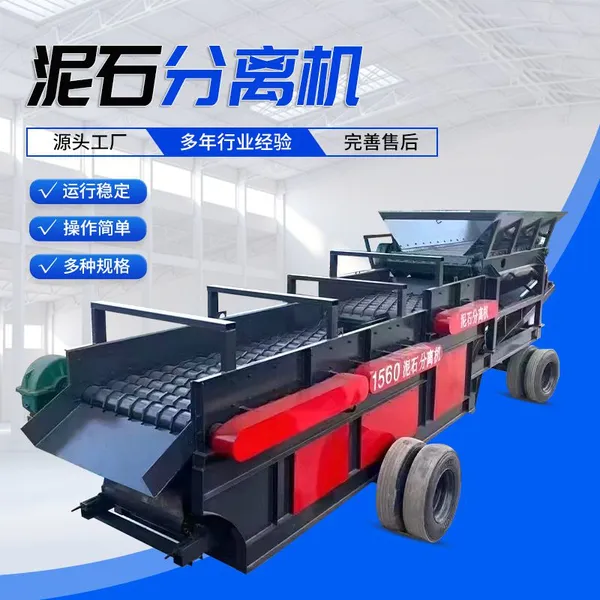

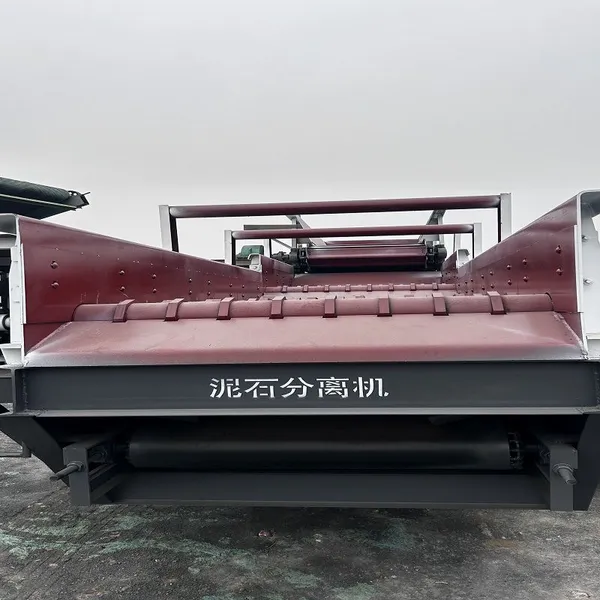

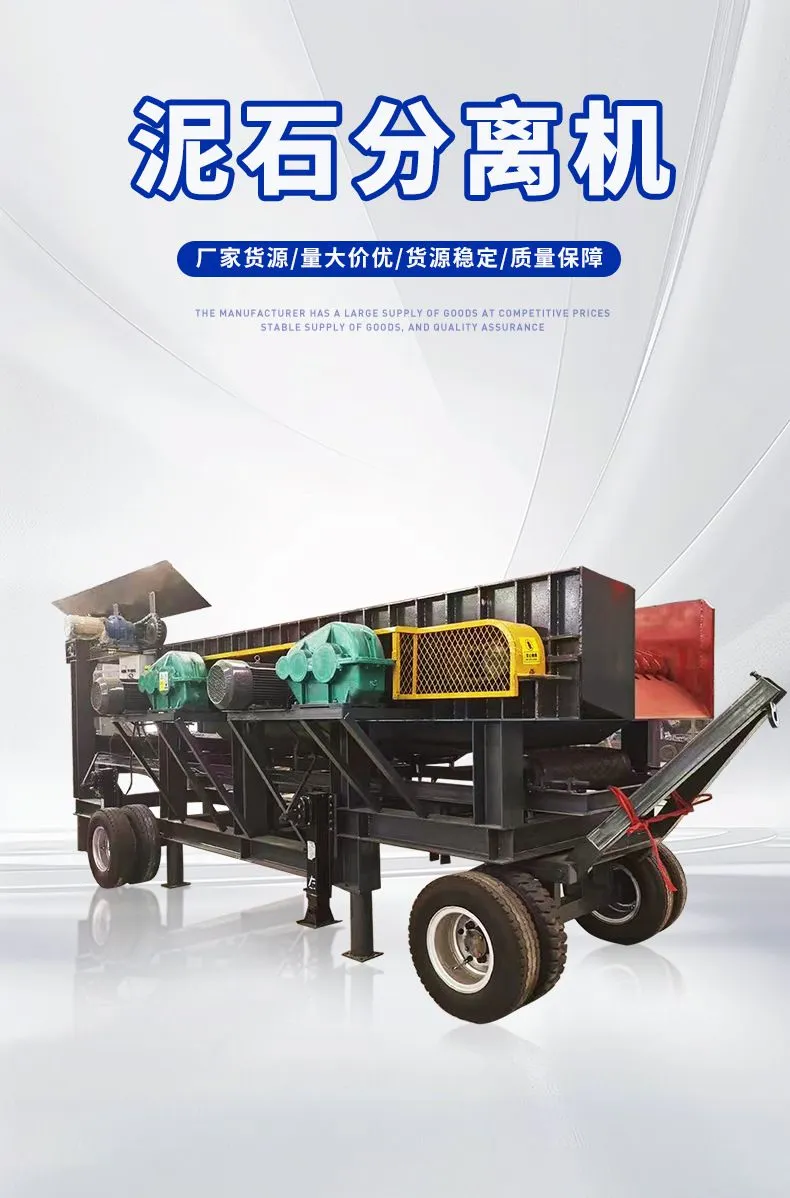

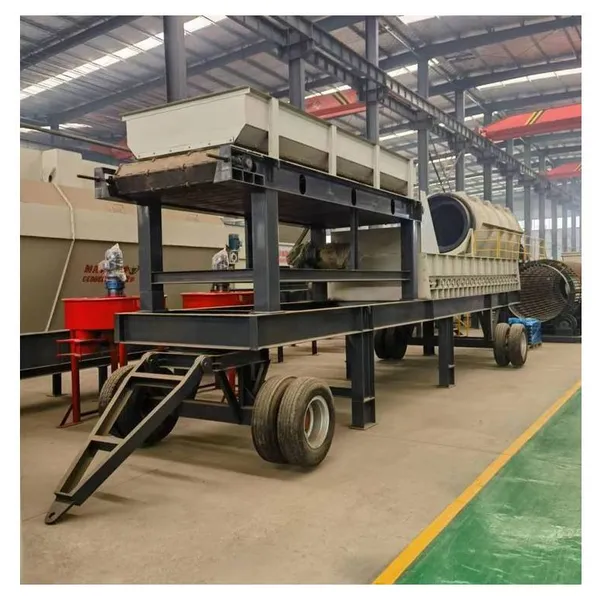

The mud and stone separator is a professional separation and screening equipment, which is mainly used to separate tailings containing silt and stones to realize mud and stone treatment and resource recovery.
I. Definition and use:
The mud and stone separator, also known as the roller sieve, is a kind of screening equipment specially designed for coarse and fine separation of high-humidity, high-viscosity and large complex materials.
It is widely used in many fields such as construction sites, mines, water treatment, construction waste treatment, environmental protection management, water conservancy engineering and agriculture and animal husbandry.
II. Working principle:
The working principle of the mud and stone separator is mainly based on the separation of particulate matter under the action of gravity and centrifugal force, as well as vibrating screening technology.
When the mud and stone mixture is sent to the separator, through the high-speed rotation and vibration of the sieve, the denser stone block is thrown to the edge of the sieve and slides to the collection area by a large centrifugal force, while the less dense soil remains in the central area of the sieve and is pushed to the outlet with the rotation of the sieve, finally realizing the soil and stone The separation of blocks.
III. Equipment composition:
The mud and stone separator is mainly composed of sieve box, sieve frame, sieve net, vibration motor, motor seat, vibration-absorbing spring and bracket and other components.
The sieve box is welded by steel plates of various thicknesses, which has good strength and rigidity; the sieve mesh is used to screen various materials, which can be selected according to actual needs; the vibration motor provides a vibration source to make the sieve mesh vibrate; the vibration-absorbing spring reduces the mechanical impact in the vibration process, protects the equipment and prolongs the service life.
IV. Advantages of equipment:
The mud and stone separator has the advantages of high sorting efficiency, low energy consumption, convenient installation, wear resistance and corrosion resistance, intelligent control and strong adaptability.
It can quickly separate soil from stones, improve treatment efficiency, and reduce environmental pollution and resource waste.
V. Application field:
In mining, the mud and stone separator can be used for the pretreatment and purification of ore; on construction sites, it can be used to treat excavated soil and construction waste to realize on-site resource utilization; in river improvement, it can quickly clean up silt and keep the river smooth; at the disaster relief site, it can also be used to clean up ruins. Speed up the rescue progress.
