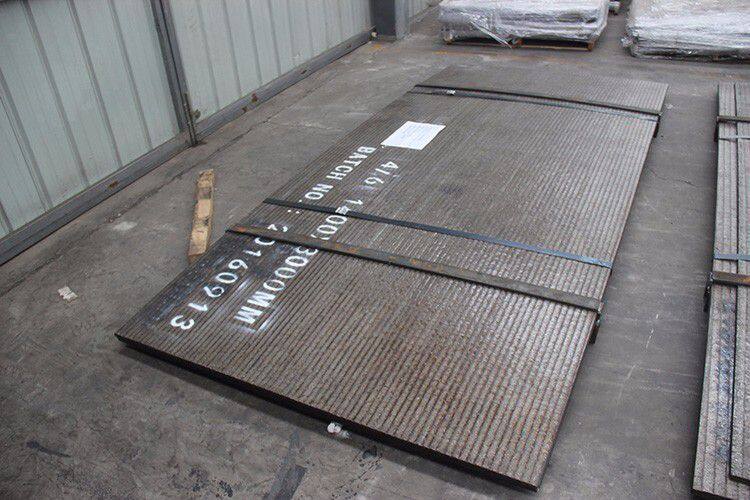

High Chromium Impact Resistant Steel Bimetal Plate for Coal Chute Liner

High Chromium Impact Resistant Steel Bimetal Plate for Coal Chute Liner photo-1
High Chromium Impact Resistant Steel Bimetal Plate for Coal Chute Liner photo-2
High Chromium Impact Resistant Steel Bimetal Plate for Coal Chute Liner photo-3
High Chromium Impact Resistant Steel Bimetal Plate for Coal Chute Liner photo-4

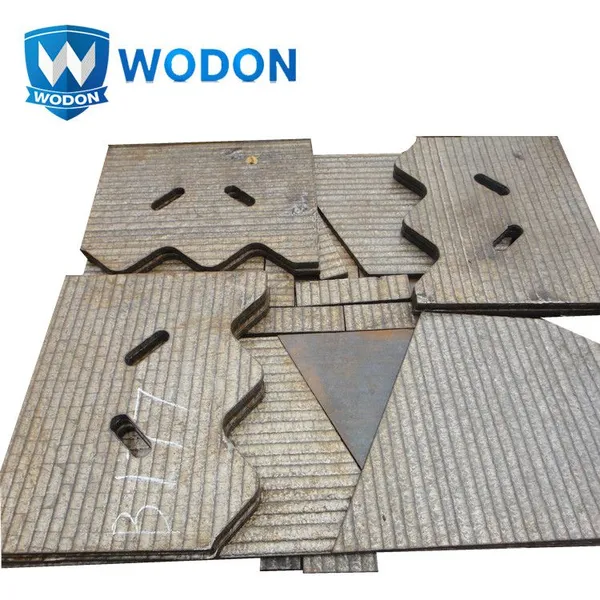

High Chromium Impact Resistant Steel Bimetal Plate for Coal Chute Liner photo-5

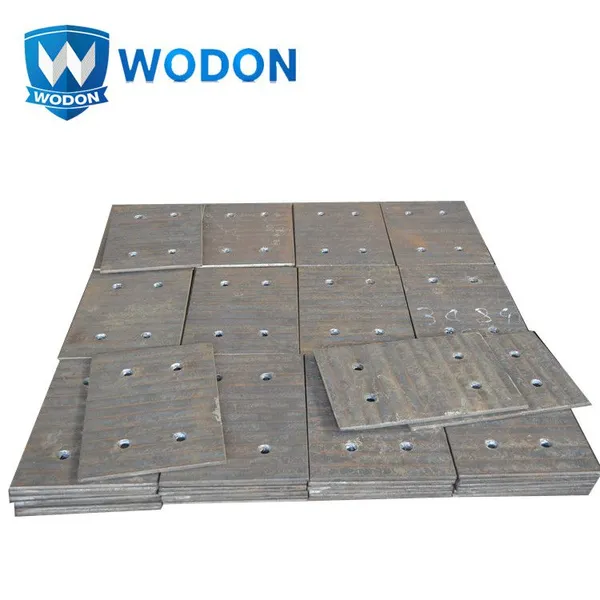

High Chromium Impact Resistant Steel Bimetal Plate for Coal Chute Liner photo-6
CHF 199 - 199 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
high chromium impact resistant steel bimetal plate for coal chute linerhigh chromium impact resistant steel bimetal plate for coal chute liner

WODON Chromium Carbide Overlay Wear Plate, open arc and submerged arc welding.






Product Name
high chromium impact resistant steel bimetal plate for coal chute liner
Material
Q235/Q345+Chromium carbide overlay
Base metal
Q235/Q345
Hardfacing layer
Chromium carbide overlay
Chemical composition
C: 3.0-5.0% Cr:25-40%
Hardness
HRC55-65
Microstructure
Carbide (Cr7C3)volume fraction above 50%
Wear resistance
High wear/abrasion resistance
Flatness tolerance
±3mm/m
Thickness tolerance
uniform overlay thickness, with tolerance within 0-0.5mm
Impact resistance
Medium
Technology
Hardfacing, open arc welding, submerged arc welding

Plate Size
Open arc welding wear  plate: 1400*3400mm
Submerged arc welding wear plate : 1400*3000mm, 1400*3500mm, 2100*3500mm
Cusomized sizes


Main thicknesses
3+3,4+4,5+5,6+4,6+5,6+6,8+4,8+5,8+6,8+7,8+8,10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20,12+4,12+5,12+6,12+7,12+8,12+9,12+1,12+11,12+12, 12+17, 12+25,14+6,14+8,14+10,16+6,16+8,16+10,18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10, customized thicknesses.
Company Information

Since 2004, Wodon has more than 200 employees.

high chromium impact resistant steel bimetal plate for coal chute liner

 Wodon product: flux cored welding wires, chromium carbide overlay steel plates, wear resistant partss, wear pipes, wear fittings.

high chromium impact resistant steel bimetal plate for coal chute liner

Welding wire and wear plate workshops

high chromium impact resistant steel bimetal plate for coal chute linerhigh chromium impact resistant steel bimetal plate for coal chute liner

Wodon's quality managment

high chromium impact resistant steel bimetal plate for coal chute liner

Warehouse

high chromium impact resistant steel bimetal plate for coal chute liner

Packing & Delivery

Packing Details: steel pallets or plywood carton and pallets

1. Welding wire 50kgs package

2. Welding wire 150/200kgs packing

3. Welding wire 15kgs vacuum packing

 high chromium impact resistant steel bimetal plate for coal chute liner

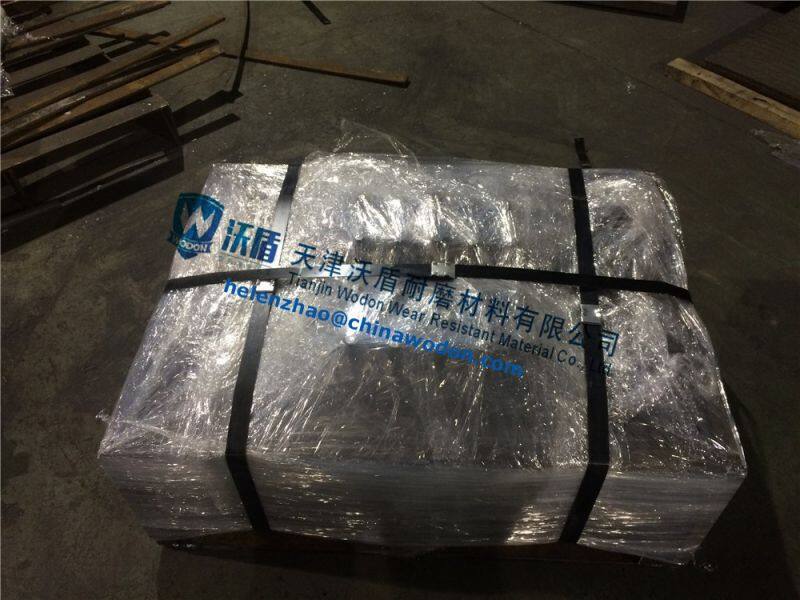

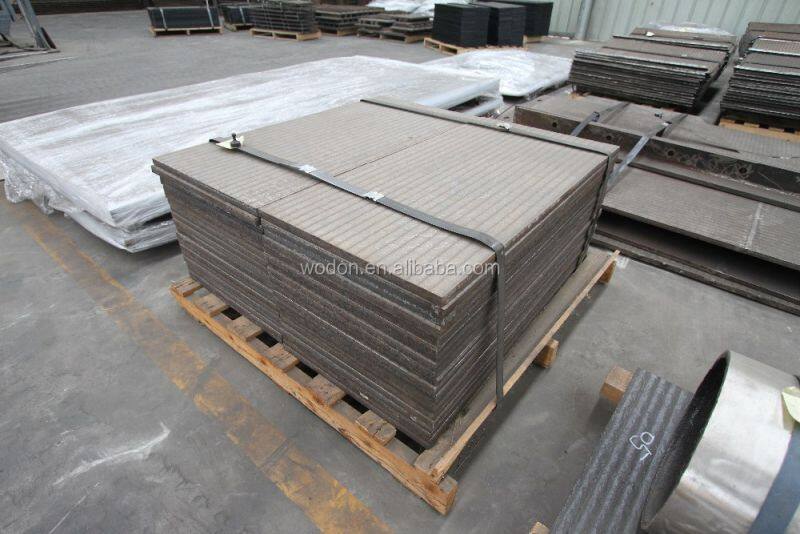

4. Wear plate packing

5. Nude plate on pallet packing

6. Film wrapped wear parts packing


FAQ

Q: Are you trading company or manufacturer ?

A: We are ISO certified flux cored welding wire and CCO wear plate factory.



Q: Are you able to produce customized chemical composition and dimension?

A: Yes, we could offer special welding wire and wear plate according customers' requirement.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 20~30% T/T in advance, balance against the copy of BOL. Other payment terms are negotiable.



Q: Do you provide after-sales service ?

A: Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer's problems. If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
