Help CenterAlloy Abrasion-Resistant Steel Plates ASI Standard Components for Mine Screen Customized Cutting Bending Welding Services
Related Products
-
High Abrasion Hardfacing Wearing Plate Alloy Chute and Hopper Liners Mine ScreenUS$ 399.69 - 399.69MOQ: 1 Square Meter -
Wodon Excavator Wear Liners Wearable Hardfacing Plate Bucket Steel Product Wearable Hardfacing Plate Bucket Steel ProductUS$ 299.69 - 299.69MOQ: 1 Square Meter
-
Vibrating Screen Chrome Carbide Wear Resistant Sieve Mining PlatesUS$ 499.9 - 499.9MOQ: 1 Square Meter
-
Ming Chrome Carbide Hardfacing Abrasion Vibrating Wear Resistant Sieve PlatesUS$ 399.69 - 399.69MOQ: 1 Square Meter
-
Wodon Wear Resistant Chromium Carbide Steel Plate Durable Concrete Mixer Plate ANSI Certified ASTM Cutting Bending WeldingCHF 300 - 300MOQ: 1 Square Meter
Customized high abrasion chromium carbide overlay steel wear plate for crusher liner

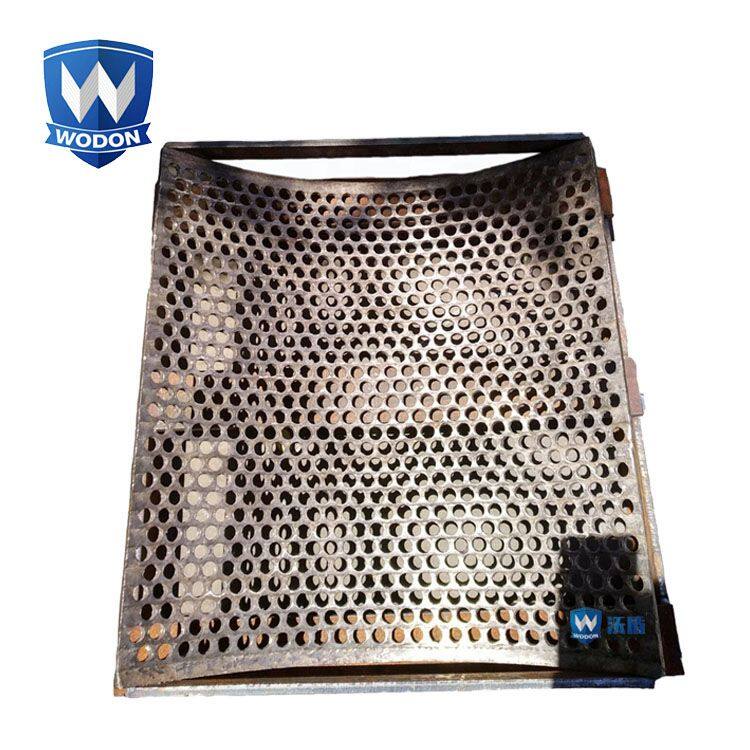

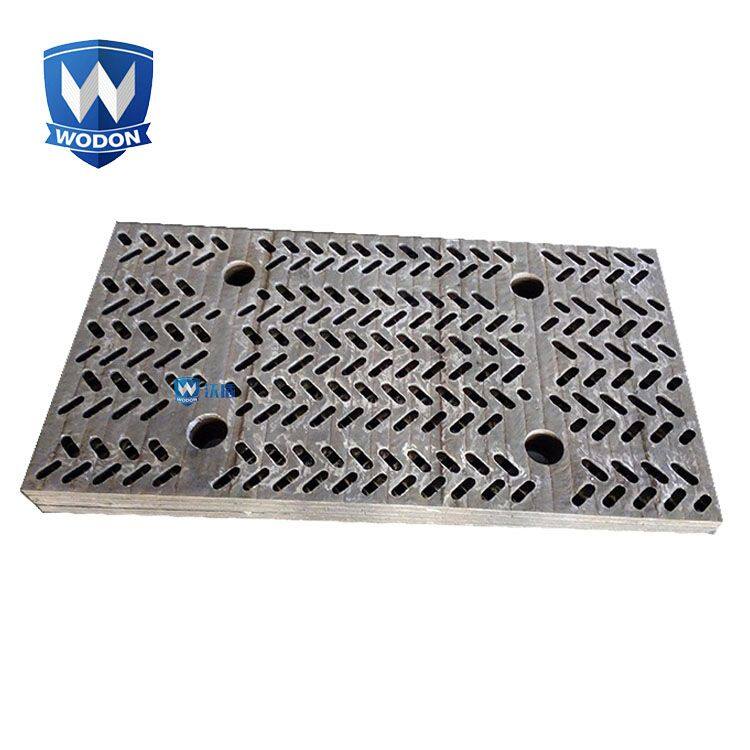

abrasion alloy wear resistant steel plates components mine screen
gtes r liner
Customized high chromium carbide overlay abrasion alloy welded resistant wear resistant steel plates
Customized chromium carbide overlay abrasion alloy welded wear resistant steel plates parts components
CCustomized chromium carbide overlay abrasion alloy welded wear resistant steel plates parts components ustomized high abrasion chromium carbide overlay steel wear plate for crusher liner
Chromium Carbide Overlay Wear Plates

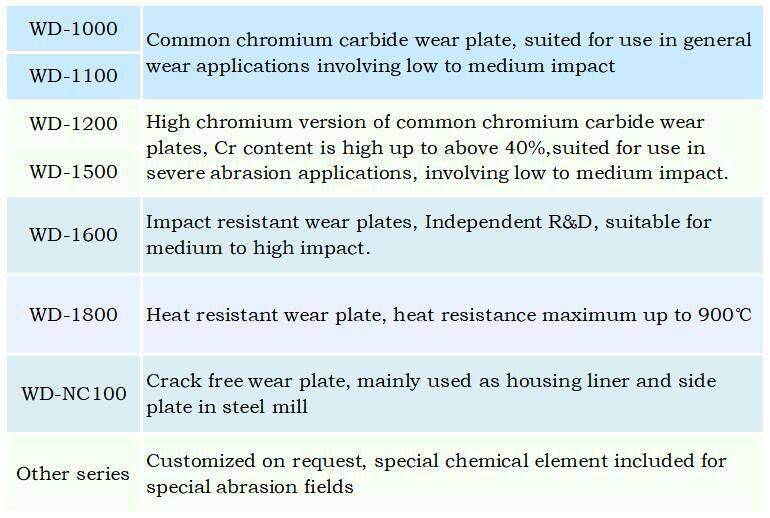

| Model | Characteristics | Hardness | Chemical Composition (%) | Operating Temperature | ||||||
| (HRC) | C | Cr | Mn | Si | Mo+Nb | Ni+V+W | Fe | |||
| WD-1000 | Common chromium carbide wear plate, suited for use in general wear applications involving low to medium impact | 58-65 | 3.0-5.0 | 17.0-27.0 | 1.0-3.0 | 1.0-3.0 | / | / | Bal. | <400℃ |
| WD-1100 | ||||||||||
| WD-1200 | High chromium carbide wear plates, Cr content is high up to above 40%,suited for use in severe abrasion applications, involving low to medium impact. | 58-65 | 3.0-6.0 | 25.0-45.0 | 1.0-3.0 | 1.0-3.0 | / | / | Bal. | <400℃ |
| WD-1500 | ||||||||||
| WD-1600 | Impact resistant wear plates, Independent R&D, suitable for medium to high impact. | 58-65 | 3.5-6.5 | 25.0-45.0 | 1.0-3.0 | 1.0-3.0 | * | / | Bal. | <600℃ |
| WD-1800 | Heat resistant wear plate, heat resistance maximum up to 900℃ | 58-65 | 4.0-7.0 | 25.0-40.0 | / | / | * | * | Bal. | <900℃ |
| WD-NC100 | Crack free wear plate, mainly used as housing liner and side plate in steel mill | 50-55 | ||||||||
| Other series | Customized on request, special chemical element included for special abrasion fields | / | ||||||||

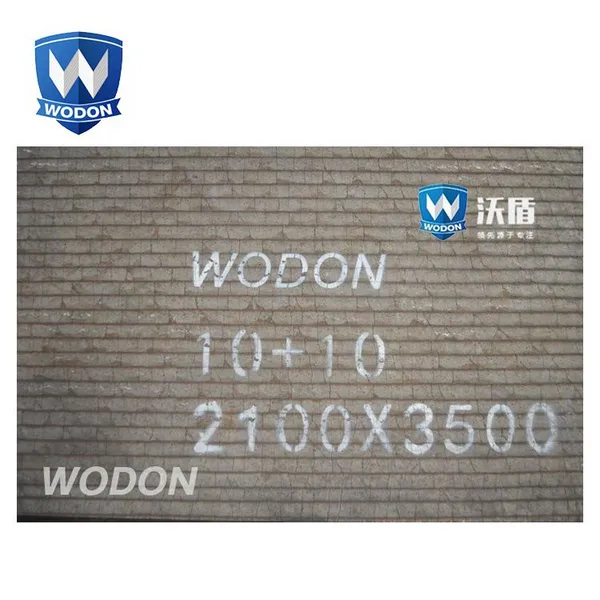

| Sheet size: 1400*3400mm 1400*3000mm 1500*3000mm 1400*3500mm 2000*3000mm 2100*3500mm Other on request | ||||||||||
| Base metal material: Q235, Q345 and so on. | ||||||||||
| Overlayer thickness: 3-50mm | ||||||||||
Jiangsu Wodon Wear Resistant Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu, a port hub city in North China. There are over 300 staffs, including 30 experienced R&D engineers. Our main products include: Chromium carbide overlay (CCO) wear plates, Flux cored hardfacing welding wires etc.
With independent intellectual property rights and a number of patents, we have a strong R&D and debugging team, which can provide customers with a streamlined service.
Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company’s technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
4 Major production bases: Jiangsu, Hebei, Hunan, Jiangsu
68 Wear plate production lines (over 130 welding torches)
5 Welding wire production lines
Annual output of chromium carbide wear plates: 200,000 square meters
Annual output of flux cored hardfacing wires: 9000 tons.
Quality Assurance
Wodon has professional technicians and excellent engineers to make product quality improve constantly. Since its foundation Wodon follows the way of professional development and wins the market with its advanced technology development, perfect product quality and fully integrated services. We have kept long closed cooperation relations with Beijing Industry University and scientific research institutions like Steel Research headquarters and Beijing Electricity Research .
Quality Guarantee
Wodon has ISO quality management system certification and execute all the contents of certification. We set up strict rules and regulations, process, and make specific requirements on each quality management from Inspection of raw materials into factory, product realization process, process inspection , final inspection, product protection, Incoming product management until final after - sales service.
Commitment
Wodon has specialized after-sales team-work, can solve problems efficiently and quickly. If any problems, related persons will solve it within 12 hrs after getting notice from suppliers.
1. The overlay chemical composition is the key
The main ingredients of Wodon plates are C(%) :3.0-5.0 and Cr(%):25-40. This chemical proportion results in a large amount of Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles throughout the layer will guarantee a super wear resistant surface.
Performance test:
Test equipment: Quartz sand rubber wheel abrasion test machine.
Conditions: Choosing same dimension specimens for different materials and wear plate producers, and put them under the same wearing working conditions in our testing equipment.
45 minutes for each specimen
Results: The test results show that the life span of Wodon wear plate is 2.5 times higher than domestic wear plates and 1.5 times than imported ones.
2. Chromium carbide microstructure
The wear resistance of wear plate depends mostly on the hardness, shape, size, amount and distribution of the chromium carbide hard particles.
As you can check on the picture, the carbide (Cr7C3) volume fraction on the microstructure is above 50%.
3. Bonding strength between the overlay and base plate.
The overlay and base plate are very well bonding. The overlay will penetrate into base plate about 0.8mm-1.8mm, reaching up to 350Mpa in our tests.
Customized high chromium carbide overlay abrasion alloy welded resistant wear resistant steel plates
