Wodon chromium carbide coated bin liner plate with super wear resistance
- 1000 Square Meter / Square Meters per Month
- T/T Credit Card
You May Like
-
mining service high wear resistant abrasion steel plate vibrating screen
-
High chromium carbide overlay high tensile wear plate for excavator buckets liner
-
Wodon abrasion resistant bimetal liner for truck bed hopper and chute
-
CCO leader bucket wear liners mining products
-
high chromium impact resistant steel bimetal plate for coal chute liner
-
Anti-abrasion cladding lining plate hardfacing wear plate for dragline grab bucket
Product Description

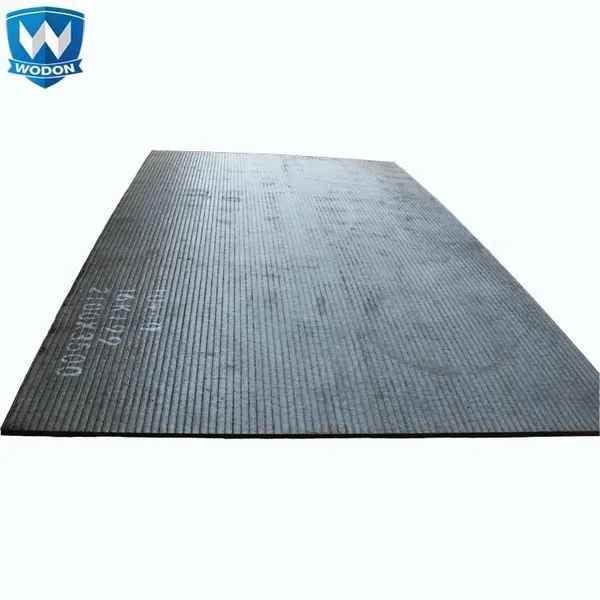

Wodon chromium carbide coated bin liner plate with super wear resistance
Our company make the wear resistant Bin Liner, Hopper Liner and Chute Liner of the Submerged arc or Open arc welding wear plates, which are also producted in our own factory.

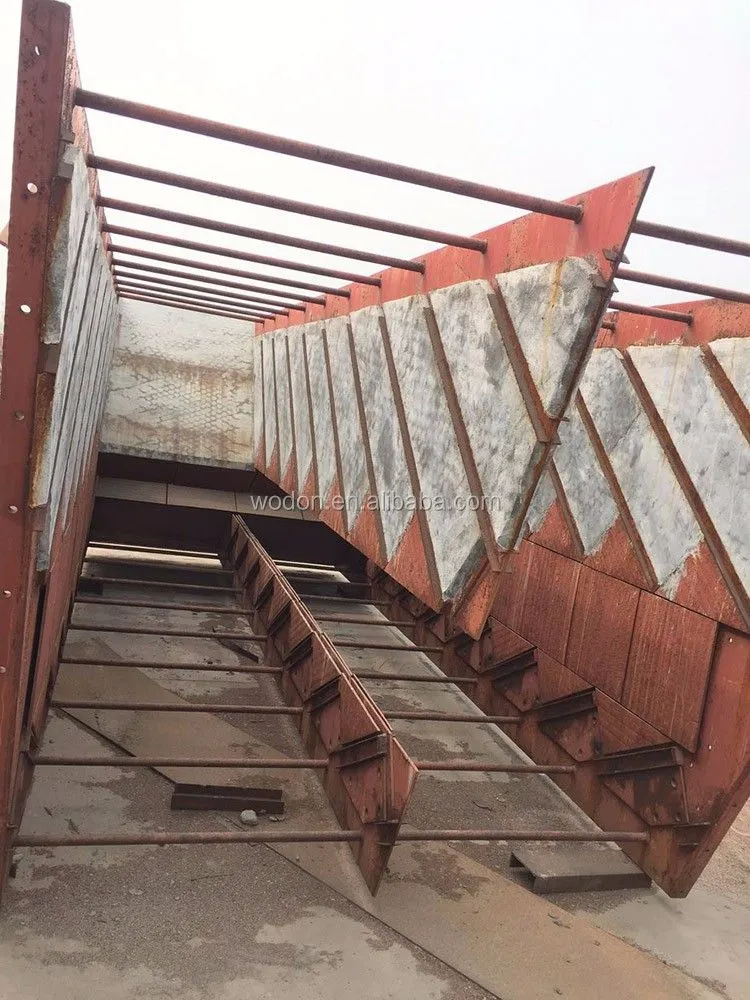

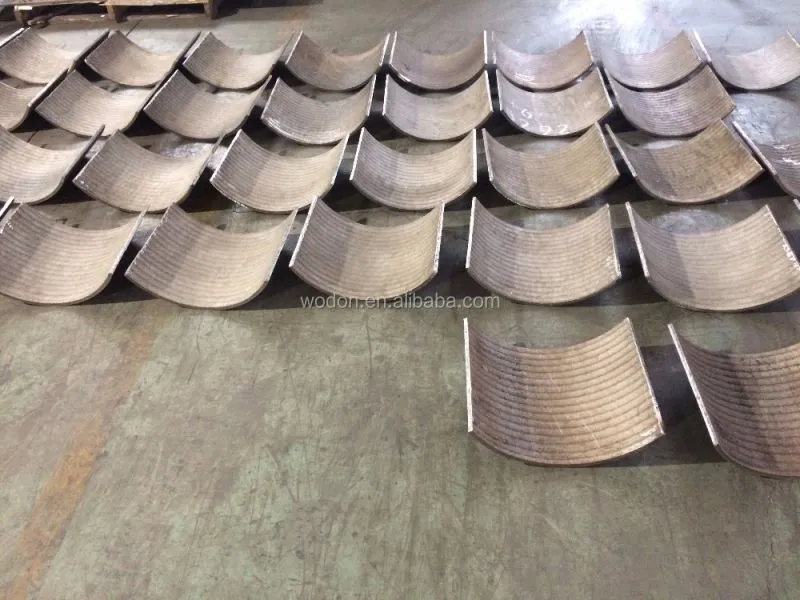

Wear abrasion resistant Bin Liner

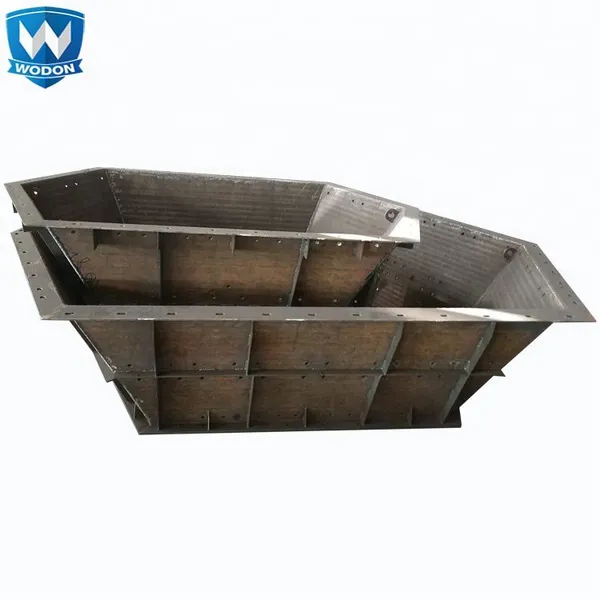

Wear abrasion resistant chute Liner

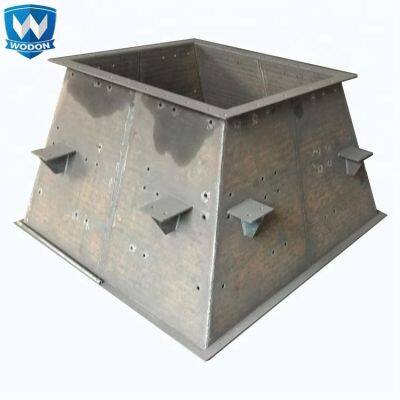

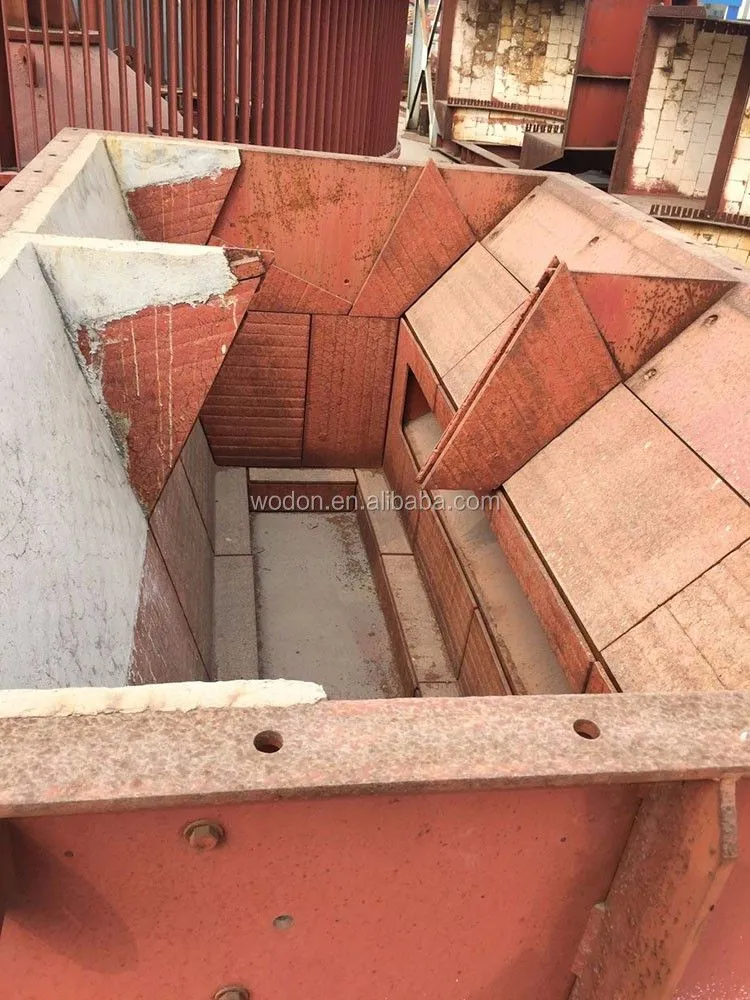

Wear abrasion resistant Hopper Liner
What is Wodon wear plate?
Wodon wear resistant steel plates are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly throughout the layer, creating a strong microstructure. The hardness is HRC 58~65 and depends on the overlay's thickness.
The main ingredients of Wodon plate are C (%): 3.0~5.0 and Cr (%): 25~40. This chemical proportion results in a large amount of Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles thoughout the layer will guarantee a super wear resistant surface.
The overlay and base plate are metallurgical bonding. The overlay will penetrate into base plate about 0.8~1.8 mm, reaching up to 350 Mpa in our tests.
Product name | Wodon COO wear abrasion resistant Bin Liner Hopper Liner chute Liner |
Material | Q235/Q345+Chromium carbide overlay alloy |
Certificate | ISO9001:2008 |
Chemical composition | C: 3.0~5.0 % Cr: 25~40 % |
Microstructure |
Chromium carbide hard particles volume fraction above 50 % The maximum hardness of chromium carbide is HV 1800 |
Wear Resistance | Our test shows that the wear resistance of Wodon plate is 30 times higher than low carbon stell and 12 times than heat treated steel |
Impact resistance | Wodon wear plates can withstand medium impact |
Temperature resistance | Wodon wear plates can withstand temperatures up to 600 ℃. We can customize high temperature resistance wear plates according to customer's requirements which can withstand maximum terperatures up to 900 ℃ |
Flatness tolerance | ± 3 mm/m |
Thickness tolerance | Uniform overlay thickness, with tolerance within 0~0.5 mm |
Surface treatment | hardfacing, cladding, open arc or submerged arc welding |
Standard sizes |
Open arc welding: 1400*3400 mm, customized Submerged arc welding: 1400*3000 mm, 1400*3500 mm, 2100*3500 mm, customized |
The main thicknesses (mm) |
3 on 3, 4 on 4, 5 on 5 4 on 6, 5 on 6, 6 on 6, 8 on 6 4 on 8, 5 on 8, 6 on 8, 7 on 8, 8 on 8 4 on 10, 5 on 10, 6 on 10, 7 on 10, 8 on 10, 9 on 10, 10 on 10, 20 on 10 4 on 12, 5 on 12, 6 on 12, 7 on 12, 8 on 12, 10 on 12, 11 on 12, 12 on 12 6 on 14, 8 on 14, 10 on 14 6 on 16, 8 on 16, 10 on 16 6 on 18, 8 on 18, 10 on 18 5 on 20, 6 on 20, 8 on 20, 10 on 20, 20 on 20, 10 on 30, 10 on 40 Customized
|

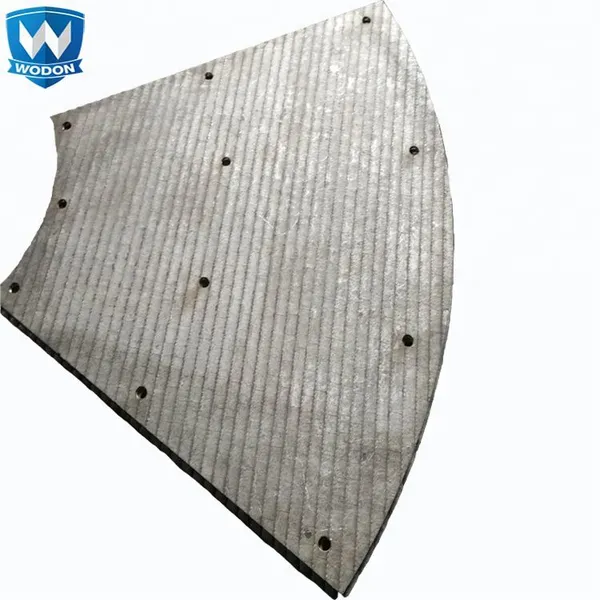

Wodon wear plates are used to make many complex wear parts to be positioned in high wear places. We have several equipment to transform our plates: six of CNC automatic plasma cutting machine, 4 multi functional bending machines and pressing machines, with high processing capacity operated by engineers and technical experts. We can provide wear plate cutting, bending, punching and welding according to customer's drawings.
In the picture there are many cracks, please don't worry. The wear resistant steel plate is not broken and the cracks are good to release the thermal stress. Wodon wear plate is composed of many welding beads and the overlay contains a series of evenly spaced hairlike cracks (The cracks are distributed throughout the overlay thickness, but end up on the base plate's surface). These transversely distributed cracks relief the structure's tension improving wear resistant steel plate's performance like mechanical properties and the overlay don't fall off the base metal.
Wodon hardface wear plate is composed of many welding beads and the wear resistant overlay contains a series of evenly spaced herringbone cracks.These transversely distributed cracks relief the structure's tension improving wear plate's performance. The Cracks are distributed throughout the overlay thickness, but end up on the base plate's surface.Those Cracks don't have any effect to the machining properties and no fall off the wear resistant overlay.
The wear resistant overlay and base plate are metallurgical bonding. The overlay will penetrate into base plate about 0.8~1.8 mm by welding heat. In our tests are the bonding strength reaching up to 350 MPa.
The above picture shows the welding fusion line of Open arc welding(the up one) and Submerged arc welding (the down one).
Wodon Wear plate others
1. Chemical Composition: High carbon high chromium
2. Hardness: HRC58-65
3. Good Performance: good mechanical processing propertie to be cut, bended, punched, bolted and welded, smooth surface with uniform overlay, super wear resistance, medium impact resistance, good heat resistance.
5. Production Capacity: 90,000 square meters per year
6. Short Delivery Time: Generally 7 days according the quantity
7. We have many experienced professionals to research and develop wear plates according to customers' specified chemical compositions.
8. We can recommend proper wear plates and provide technical solutions based on working conditions.
9. on site inspection and third party inspection are available.
10. As an ISO9001:2008 approved manufacture, our mission is to improve our management system and provide high quality products continuously.
We have our own Quality Inspection Technology Department and the team are made of many experience exports with material science bachelor-degree and the leaders with material science master-degree. In the pictures you can also see our equipment in our laboratory. Our inspection team make regular testing on raw material, production process and our products according our company's strict policy.
We are certified with the ISO9001:2008 and keep continuously improving our quality management system. We have strict procedures for raw materials, products inspection, production process, storage management and after sales service.
We are certified with the ISO1400:2004 and keep continuously improving our environmental management system. We use the electric boiler not the coal fired boiler to protect the environmental. We use the advanced dust removal and ventilation equipment to keep the air clean.
We are certified with the OHSAS18001-2007 and keep continuously improving our occupational health and safety management system. Our every technical staff wears filter mask, protective clothing and gloves and welding goggles.
Jiangsu Wodon Wear Resistant Material Co., Ltd is located in Jiangsu city, China's northern international shipping center. We are specialized in researching, developing and producing wear resistant products with many years experience in this field. We have more than 200 employees, with an annual output of 90000 squaremeters of wear plates and 9000 tons of welding consumables.
Our company covers the area about 43000 square meters. And this year we are established one more branch factory in Jiangsu to improve our production capacity.The new branch factory will be finish and full function operate in June 2017 according the company's policy.
There are 3 Workshops (36000 square meter) only in Jiangsu now, after the new branch factory finished, we will have one more big Workshop in Jiangsu, so that have more place to process wear resistant work pieces like wear resistant liner, pipe and fittings and wear resistant steel plates.
With solid technical knowledge and R&D capacity, we have many experienced surface engineering professionals and often invite experts as advisers to provide solutions related to industrial abrasion. Our products have been widely applied in different in dustries like: power, cement, iron and steel, mining, port, coal, petroleum, chemical industry, railway, valves, sugar and shipbuilding industry. In addition, our company can offer professional solutions for the abrasion in different working conditions in order to reduce costs, increase lifetime of the workpiece and extand equipment overhaul period, therefore building a very good reputation among our customers.
We use CNC automatic plasma cutting machine to cut our wear plats with high effiention and high processing precision and the multi functionial bending machine is very useful to process complex wear parts.
We have our own Quality Inspection Technology Department and the team are made of many experience exports with material science bachelor-degree and the leaders with material science master-degree. In the pictures you can also see our equipment in our laboratory. Our inspection team make regular testing on raw material, production process and our products according our company's strict policy.
The above picture shows our laboratory. There are many equipments to suppert our Quality Inspection Technology Department, for sample: a series of metallographic analysis equipments, protable spectrum, protable ultrasonic thickness tester, protable ultrasonic hardness tester, destop Rockwell hardness tester, Infrared carbon sulfur analyzer, Quartz sand rubber wheel abrasion test machine and Reciprocating abrasion tester.

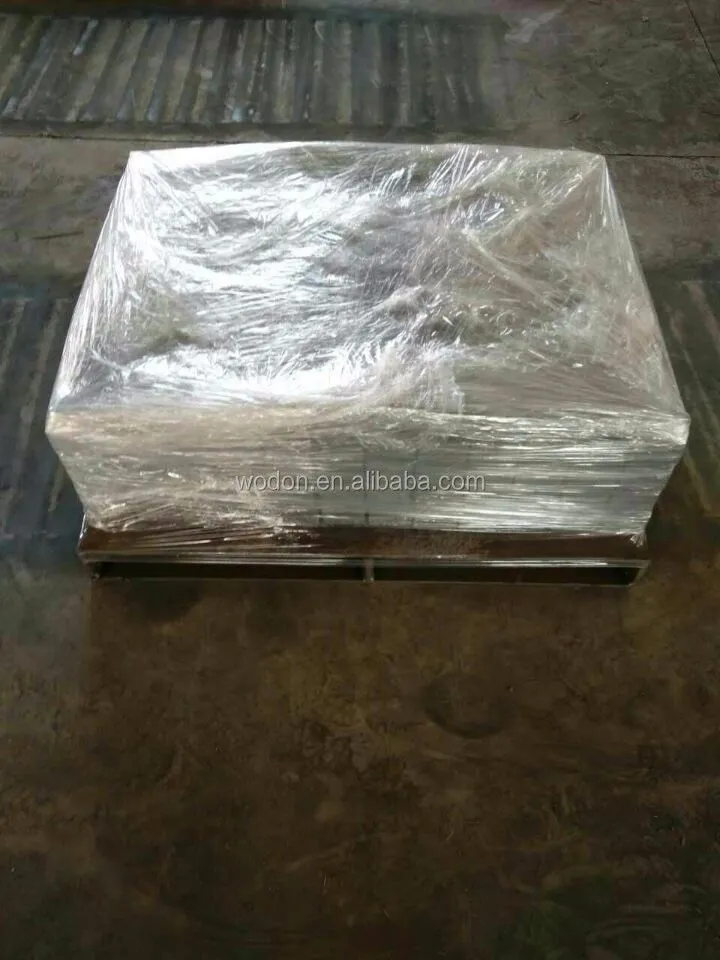

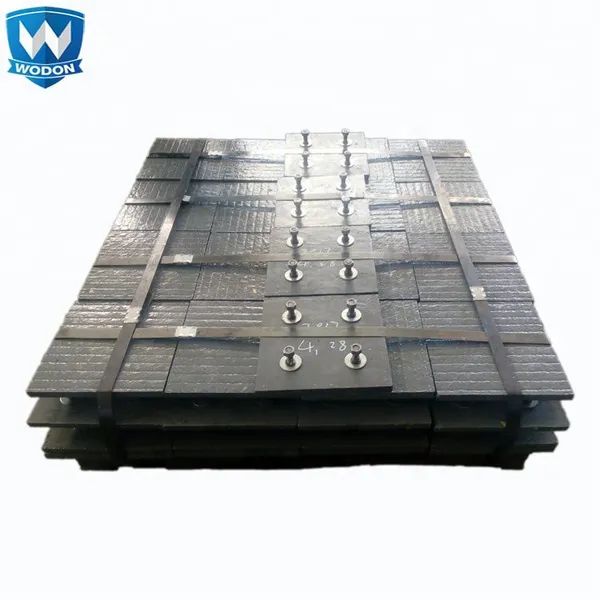

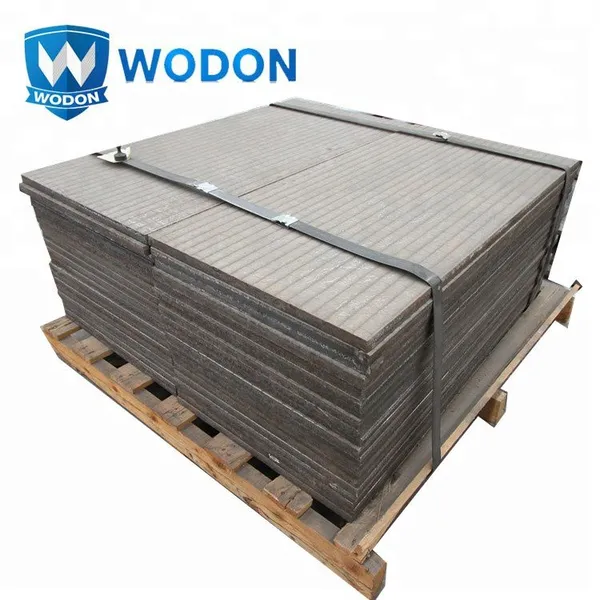

Packaging: Steel pallet, Non fumigation pallets, Flim, Customized
Packaging Size: customized, Loading into 20ft or 40ft Contraner
Delivery Detail: Generally it is 10~25 days, according to quantity.
Q: Are you trading company or manufacturer ?
A: We are manufacturer with more than 3 factorys, our own sales department and our own inspection technology department.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance against copy of BL.
also, FOB, CIF, CFR all are available for your product.
If you have another question, pls feel free to contact us as below:
