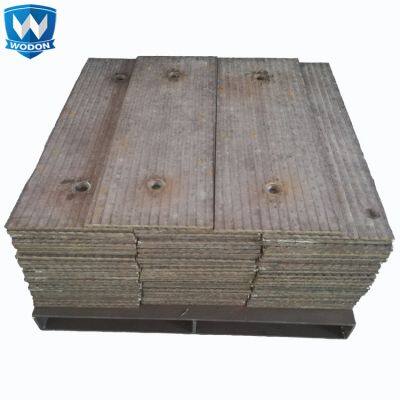

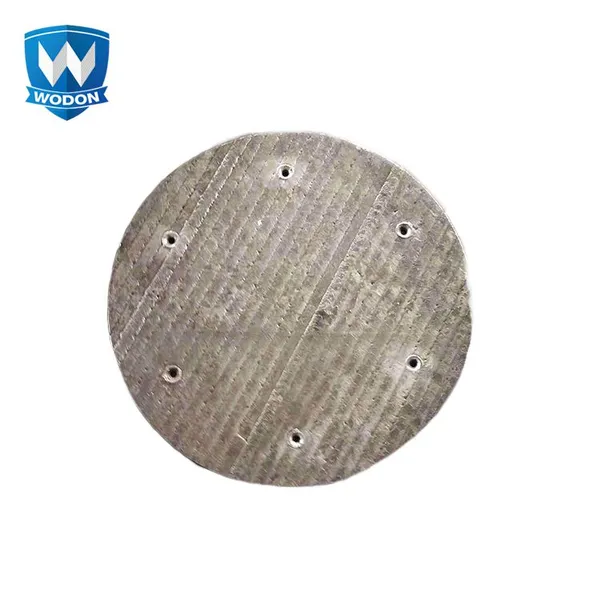

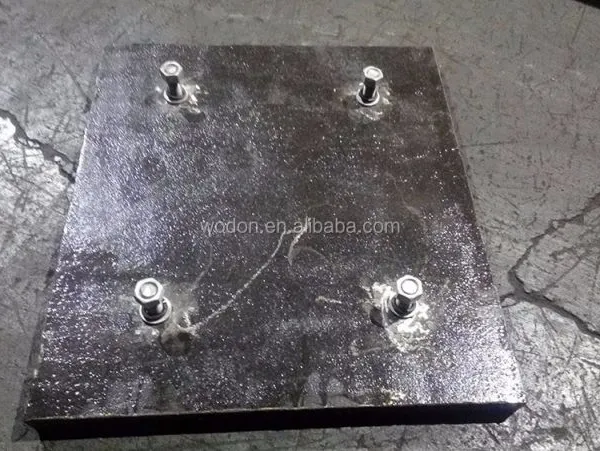

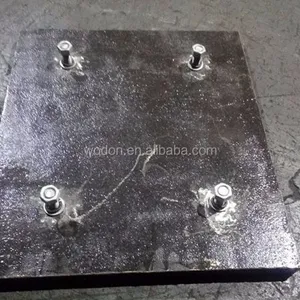

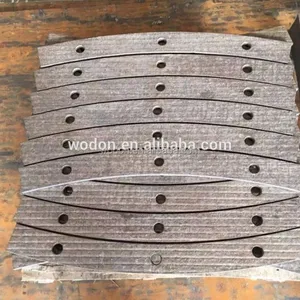

high hardness chrome carbide wear abrasion resistant lining plate for mining machinery engineering
- 1000 Square Meter / Square Meters per Month
- T/T Credit Card
You May Like
-
Crack-Free Chromium Carbide Overlay Wear Plate Metallurgical Industry Abrasion Resistance ASI API Cutting Bending Welding
-
cast steel hardfacing wear plate resistant lining for grab bucket inside install
-
wear resistant plate hardfacing truck bed linings for mining equipment
-
high hardness wear resistant plate bimetal chromium carbide overlay crusher feed cones chute liners
-
Hardfacing cladding bimetal wear plate high chrome resistance wear plate high impact for liner chutes
-
chromium carbide overlay wear plate steel heat resistance for mining cement and power Conveyor
Product Description
Main Features
Wodon wear plates are manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate. The capability of our wear resistance plate is 5-6 times than the heat-treated steel; 5 times than stainless steel; 5-6 times than high manganese steel; 11 times than 16Mn ( date from normal temperature abrasive wear test ).
China factory for rolling mill housing liner wear resistant plate
Wear Plate Parameters
Product Name | China factory unique technology produce abrasion resistant liner for mill machine |
Brand | WODON |
Base Plate | Q235/Q345. |
Hardness | HRC58-65. |
Chemical Composition | C(%): 3.0-5.0 ,Cr(%): 25-40. |
Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above 50%. |
Hardfacing layer | High chromium high carbide overlay. |
Surface Treatment | Hardfacing, clading, coated. |
Technique | Hardfacing, open arc welding, submerged arc welding. |
Wear Resistance | High wear resistance wear plate,30 times higher than low carbon steel and 12 times than heat treated steel. |
Flatness tolerance | ±3mm/m. |
Thickness tolerance | Uniform overlay thickness, with tolerance within 0-0.5mm. |
Main Thicknesses | 3+3,4+4,5+5,6+6,6+8,8+4,8+5,8+6,10+10,10+20,12+12,14+10,16+6,18+0,20+20,30+10,40+10, Customized. |
Plate Size | Open arc welding wear plate: 1400*3400mm Submerged arc welding wear plate: 1400*3000mm,1400*3500mm, 2100*3500mm. Customized. |
Application | Mining,Steel,Cement,Power,Port,etc. |
Place of Origin | China. |
Related Wear Plate Product
Wear plate bimetallic chromium carbide overlay.
Wodon wear resistant steel plate.
High alloy hardfacing wear resistant plate.
Wodon seamless wear plate

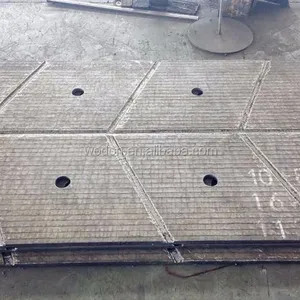

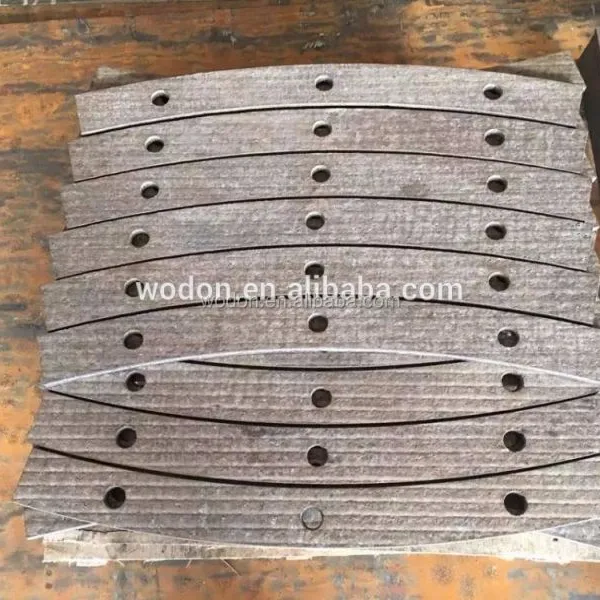

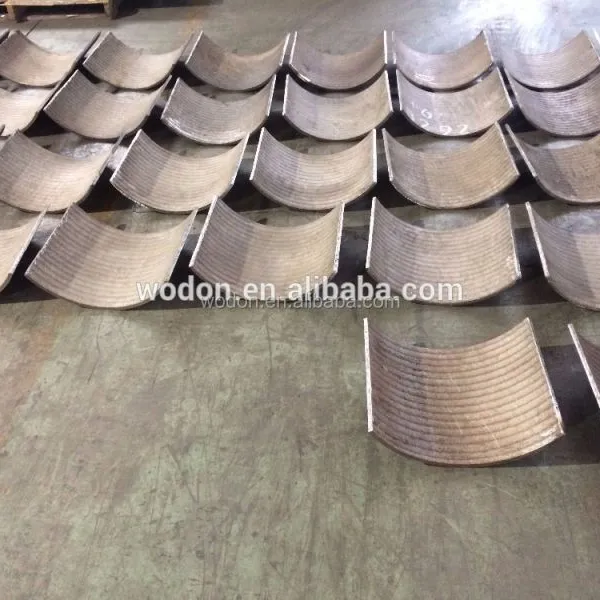

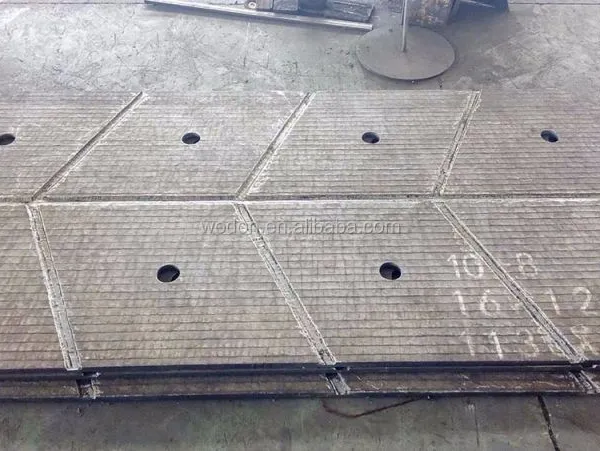

Wodon processing wear plate for housing liner
Name: Wear plate
Brand: WODON
Original: China
Wodon wear plate are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles.
Pre-Sales Service
* Inquiry and consulting support
* Free Samples(welding wires and wear plate)
* View our factory
After-Sales Service
If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
Wear Plate Size | 1.4*3.4m , 1.4*.3.0m , 1.4*3.5m , 2.1*3.5m , Customized. |
Wear Plate Packaging Details | Steel pallet, Non fumigation pallets , Customized. |
Wear Plate Delivery Detail | Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. |
Welcome
Jiangsu Wodon Wear Resistant Material Co.,Ltd(CHINA WODON), located in the northern international shipping center TIANJIN. The company possesses many experienced senior engineers who provides professional solutions in high wear and abrasion resistant applications.
Our wear resistant plate have been widely applied to electric power, cement, mining, iron and steel etc. And with our wear resistant plate can increase the using life 3-4 times, reduce the cost of maintenance and save downtime. As well as the company have passed IOS9001, SGS, IAF.
The wear resistant plate are exported to South Korea, Mongolia, Peru, Australia etc.
Exhibition in Australia
Meeting with Sourth Korea Customer
Exhibition in America
Wear Plate Processing Workshop
Wear Resistant Plate Warehouse
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the wear plate sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL.
If you have another question, pls feel free to contact us as below:
Name: Maria liu
Fax: +86 22 8689 7978
WhatsApp: +86 13642007823 email: marialiu@chinawodon.cn
WeChat: 13642007823 QQ: 152025141
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
