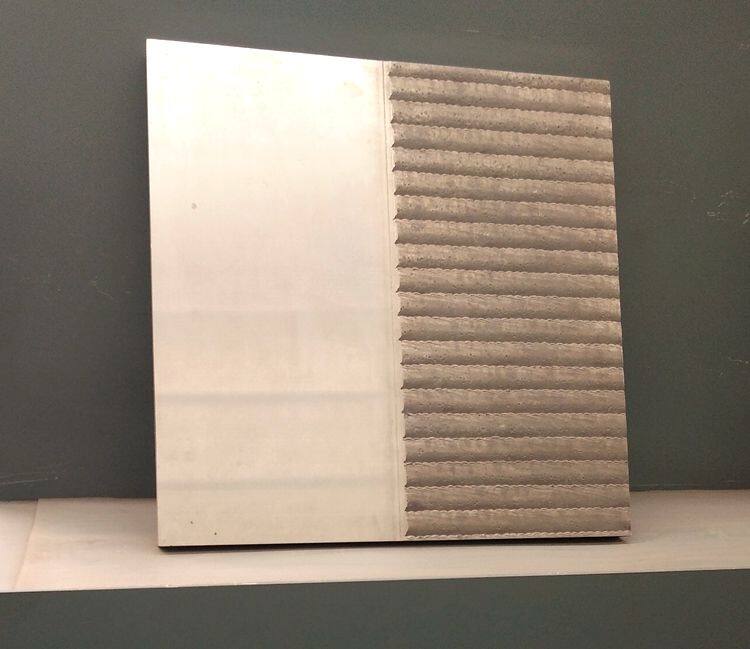

WD520 new products abrasion resistance chromium carbide overlay seamless plate for rolling mill
Wodon wear resistant hardfacing high chromium carbide overlay steel plate:
Medium/low carbon steel + wear resistant lyaer ( wear resistant steel plate wite metallurgical bonding )
Q235/Q345B steel plate + Chromium carbide overlay (wear resistant steel plate by submerged arc welding of open arc welding )

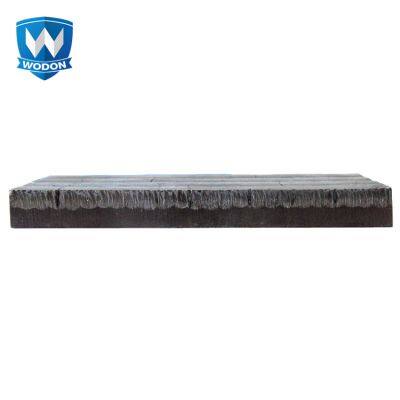

Wodon wear plate are manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles. The main ingredients of Wodon wear plate are C(%): 3.0~5.0 and Cr(%): 25~40. This chemical proportion results i a large amount of Cr7C3 chrome carbide hard particles. The hardness is HRC 58~65 ( HV650~860) and depends on the overlay's thickness and chemical composition. The micro-hardness (up to HV1800) of these particles thoughout the layer will guarantee a super wear resistant surface.
We can customize the plates in different sizes and thickness based on customer's drawings.We can also cutting, bending and welding the wear plate into specific shapes and parts, as well as keep the good flatness.
1. Drilling Holes
Staright holes and Countersunk holes.
2. Bolt embedded welding in the back
Embedding the pre-processed bolt in the back of wear plate.
3. Bending
Wodon wear plate can be cold formed and made into curve of cone.
4. Welding
Wodon wear plate can be welded and assembled into kinds of wear parts.
| Product name |
WD520 new products abrasion resistance chromium carbide overlay seamless plate for rolling mill |
| Brand | Wodon |
| Base Plate | Q235/Q345B |
| Hardfacing Plate | High chromium high carbide overlay |
| Chemical Composition | C(%): 3.0-5.0 , Cr(%): 25-40 |
| Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above 50% |
| Hardness | HRC 58-65 |
| Surface Treatment | Hardfacing, surfacing, overlaying, clading, coated |
| Technique | Hardfacing, open arc welding , submerged arc welding |
| Wear Resistance | High wear resistance, 30 times higher than low carbon steel and 12 times than heat treated steel. |
| Impact Resistance | Medium |
| Flatness tolerance | ±3 mm/m |
| Thickness tolerance | Uniform overlay thickness, with tolerance within 0-0.5 mm |
| Plate Size |
Open arc welding wear plate: 1400*3400mm Submerged arc welding wear plate: 1400*3400mm ; 1400*3500mm ; 2100*3500 mm; Customized. |
| Place of origin | China |
| Application | Hot mill factory, Steel mill machine part, Wear resistant factory etc. |
| Main Thickness |
3+3, 4+4, 5+5 6+4, 6+5, 6+8, 8+4, 8+10,10+4, 10+6, 10+8, 10+10, 10+20 12+6, 12+10, 12+12, 14+8, 14+10, 16+6, 16+10, 18+6, 18+10, 20+5, 20+8, 20+10, 20+20, 30+10, 40+10 |
WD 520 Wear Plate Instruction
| WD 520 Wear Plate | |
| Size | Customized based on customer's drawings |
| Overlay Thickness | 8-20 mm |
| Base Plate Thickness | 10-60mm |
| Hardness (HRC) | HRC50-55 with good machining properties |
| Application Industry | Steel rolling mill, mold factory etc. |

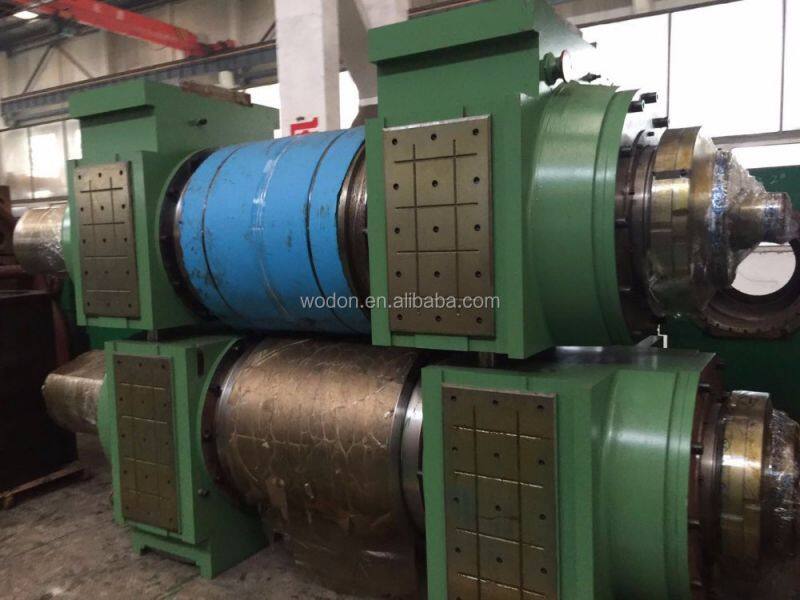

| This product is mainly used as housing liner in steel mill with high cost performance. | |
Wear Plate Detail Shows
As a ISO9001 certified factory, WODON specialize in R&D and manufacturing very good quality. Hardfacing wires, hardfacing wear plates and pipes, gas shielded welding wires and kinds of wear parts, and have mort than 10 years experience in this field.
In the United States, we have specialized laboratories to do wear tests. And in China, we have the inspection report issued by quality inspection center of Harbin welding institute of China academy of machinery science and technology. Test team are made of many experience exports with material science bachelor-degree and the leaders with material science master-degree. In our laboratory, there are have a series of equipment to test our products. Such as, Portable Spectrum can test easily the chemical compositon of wear plate surface. And we have a Spectro MAXX to read the chemical compositon directly from the powder.
| Wear Plate and Wear Components Packing | |
| Size | wear plate size: 1400*3000mm;1400*3500mm; 14000*3400mm; 2100*3500mm,Customized. |
| Packing | Steel pallets, Non fumigation pallets, film, Customized. |
| Delivery Time | 10- 40 days. |
Packing: We use customized size pallet to support our products and we can also make special customized steel pallet according to the customer's drawing. So that not only support our product safely but also easy to transport with.
About shipping, customer can use their own designated shipping agencies, or we choose to cooperate with shipping companies. And we would make sure the delivery time is on time. Tranding methods include FOB, CIF, CFR, Letter of credit. About delivery port, because our factory is in Jiangsu, so the first choice is Jiangsu port. But if the customer has other ports want to ship, we can do the best to match customer's demond. Except for Jiangsu port, we could shipped from Lianyungang port, Shanghai port, Dalian port, Ningbo port, Shenzhen port, Qingdao port and so on.
Wear Plate Workshop
We use our own developed CNC automatic welding machine with multi welding guns to weld our own hardfacing wear plate. It is equipped with four welding guns that can work simultaneously to overcome low productivity, poor flatness and overlay falling off, easily caused by single gun.
This is a high automation level machine. Each welding gun can operate independently and restart exactly from the point it had stopped, Simplifying the operation process. Wear plate manufactured by this equipment have many advantages like flat surface, micro and irregular cracks, and uniform hardness being very well accepted by our customers.
And the most advantage is cost saving, so our customer could get good quality and high cost performance wear resistant plate.
Jiangsu Wodon Wear Resistant Material Co., Ltd is a company which is specialized in researching and developing wear resistant material. In this field we have 10 years R&D experience. Now we have 4 production workshops(about 4,000 SQM) , more than 20 submerged arc welding wear plate production lines, 3 open arc welding wear plate production lines, and more than 200 employees. The annual output of flux cored welding wire is 9,000 tons, the wear plate is 90,000 SQM.
Wodon global custom designs wear resistant plate for optimum performace, fit and service life. Wodon can utilize many abrasion resistant materials, from our bi-metal alloy composite wear plate, and chromium carbide overlay wear plate, and flux cored welding wires.
Wodon is the leading manufacturer of wear resistant materials in China. In China, many steelworks, cement plants, coal mine plants and so on, buying wear resistant plate, wear resistant flux cored welding wires and wear resistant part from our company. As well as established a stable relationship of long-term cooperation. Abroad, our products also sold to many countries, "made in China" is not only excellent quality but also high cost performance.
Customer visisting our factory
Attend Foreign Exhibitions
Wodon wear plate general purpose chromium carbide overlay plate typically can delivery up to 30 times the life of low carbon steel plate. Combined with it's versatility, this is the reason why Wodon wear plate has become a great cost-reducer in the manufacturer of chromium carbide, cement, glass, port transportation, power and steel, as well as in mining, oil refining, and numerous material handling application, such as scrap and steel recycling.
The below products are all made of our wear plate
Q: Are you trading company or manufacturer?
A: We are manufacturer, and we have our own sales department and our own inspection technology department.
Q: How long is your delievery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provied samples? is it free or extra?
A: Yes, we could offer the wear plate and flux cored welding wires' samples for free charge.
Q: What is your terms of payment?
A: 30% T/T in advance, balance against copy of BL, Or use L/C, D/A, D/P, MoneyGram, Paypal, Western Union.
We are doing the best to match your demand.
Q:What is your working time?
A: Monday -- Friday: 8:30AM - 17:00PM (Beijing Time, GMT+08.00)
