Product Description

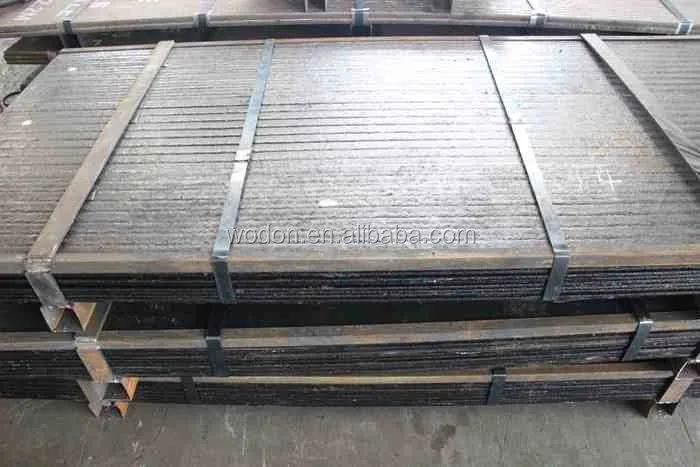

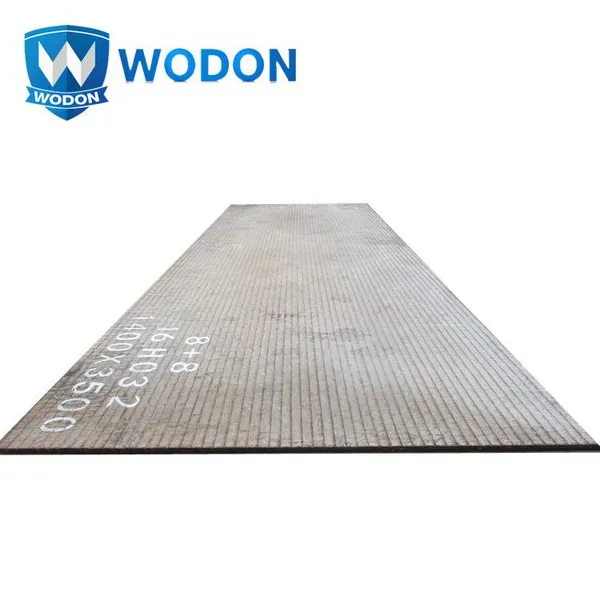

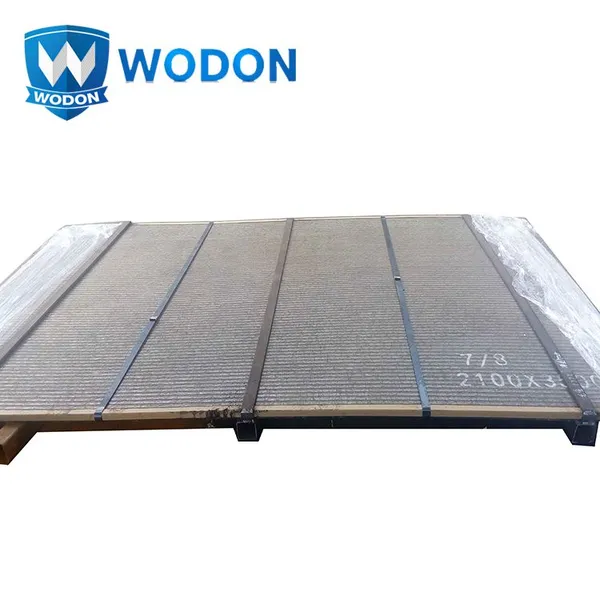

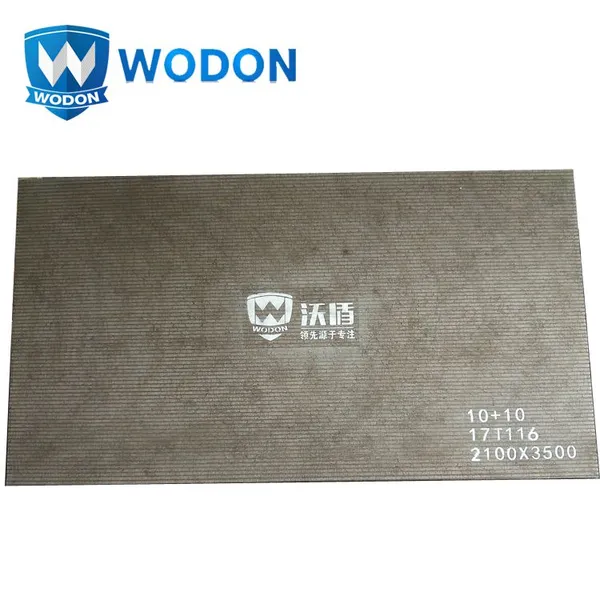

wear abrasion resistant overlya high carbon high chromium steel plate
Wodon wear plate are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles.
|
Product Name |
high chromium carbide overlay wear abrasion resistant steel plate |
|
Brand |
Wodon. |
|
Base Plate |
Q235/Q345. |
|
Hardfacing layer |
High chromium high carbide overlay. |
|
Chemical Composition |
C(%): 3.0-5.0 ,Cr(%): 25-40. |
|
Microstructure |
The carbide (Cr7C3) volume fraction on the microstructure is above 50%. |
|
Hardness |
HRC58-65. |
|
Surface Treatment |
Hardfacing,clading,coated. |
|
Technique |
Hardfacing,open arc welding,submerged arc welding. |
|
Wear Resistance |
High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel. |
|
Impact Resistance |
Medium. |
|
Flatness tolerance |
±3mm/m. |
|
Thickness tolerance |
Uniform overlay thickness, with tolerance within 0-0.5mm. |
|
Main Thicknesses |
3+3,4+4, 5+5 6+4,6+5,6+6,6+8 8+4,8+5,8+6,8+7,8+8 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 14+6,14+8,14+10,16+6,16+8,16+10 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 Customized. |
|
Plate Size |
Open arc welding wear plate:1400*3400mm Submerged arc welding wear plate:1400*3000mm, 1400*3500mm, 2100*3500mm. Customized. |
|
Place of Origin |
China. |
|
Application |
Mining,Steel,Cement,Power,Port,etc. |
Wodon Wear Plate Others

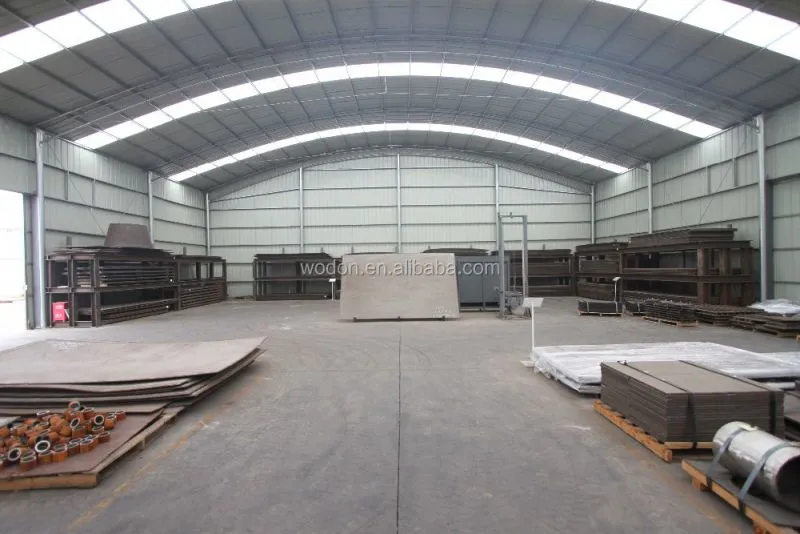

Warehouse
Packaging: Steel pallet, Non fumigation pallets,Customized
Packaging Size: 1.4*3.4, 1.4*.3.0, 1.4*3.5, 2.1*3.5, customized.
Delivery Detail: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Packaging
Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer’s problems.If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL.
If you have another question, pls feel free to contact us as below:
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company\'s technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
