Portable Crop Leaf Area Meter Handheld Plant Leaf Area Detector

Name: Portable Crop Leaf Area Meter Handheld Plant Leaf Area Detector
Brand: NANBEI
SKU: 172738787

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

NANBEI

Place of Origin:

China

Model Number:

YMJ-B plus

Nanbei Instrument Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name NANBEI

Place of Origin China

Model Number YMJ-B plus

Usage Auto Testing Machine

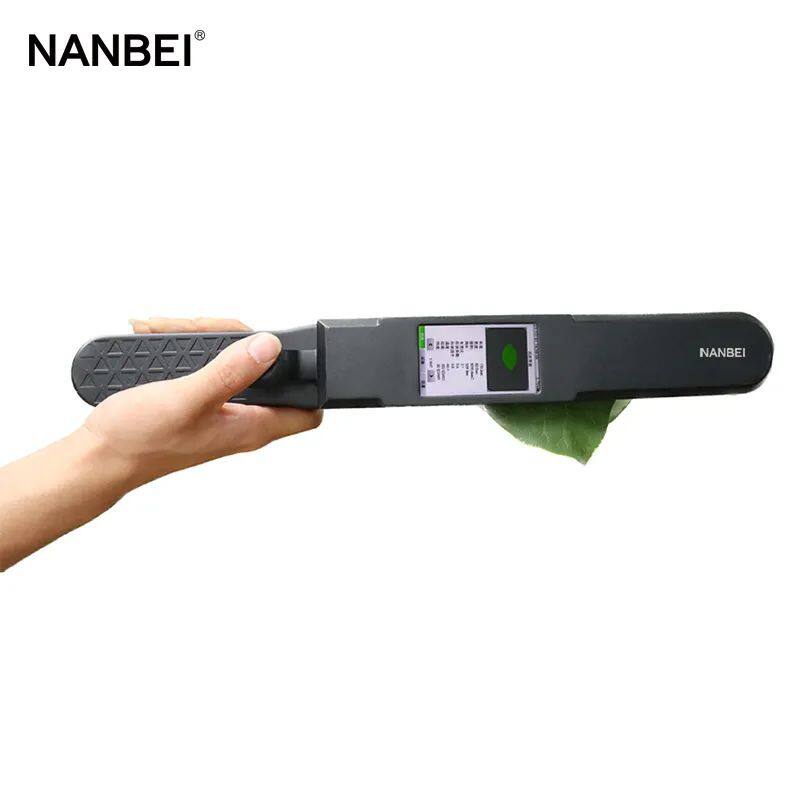

YMJ-B plus living plant leaves touch screen portable leaf area meter

YMJ-B plus leaf area measuring instrument can accurately, quickly, and undamaged measure the leaf area

and related parameters of leaves, and can also measure the area of picked plant leaves and other sheet-like objects.

The instrument has strong battery life and supports Bluetooth data transmission, making it very suitable for field work.

It can scan leaves up to 3000mm in length.

The leaf area measuring instrument is suitable for agricultural research in related fields such as agriculture, grass

industry, forestry, and seed industry. Based on the physiological indicators measured by leaf area, it can control the

reasonable density of leaf area in yield increase measures and improve crop yield.

Specification

Product name	YMJ-B plus living plant leaves touch screen portable leaf area meter
Test parameter	leaf length,width,thickness,ratio of length and width,area
Screen	touch screen
Communication	Type-C
Power supply	rechargeable lithium battery
Maximum scanning length	3000mm; Resolution : 0.1mm
Maximum measurement width	210mm; Resolution: 0.1mm
Maximum measured thickness	6.5mm
Maximum scanning area	3000 * 210mm2
Area measurement accuracy	± 2%
Scanning speed	150mm/s
Display	480 * 854 resolution RGB touch color screen
Power supply	5Ah rechargeable battery
Battery work time	16h
Product size	420 * 50 * 54mm
Product weight	0.53kg
Work environment	Working temperature: -20~60 ℃
Work environment	Working humidity: 0%~100% (without frost formation)
