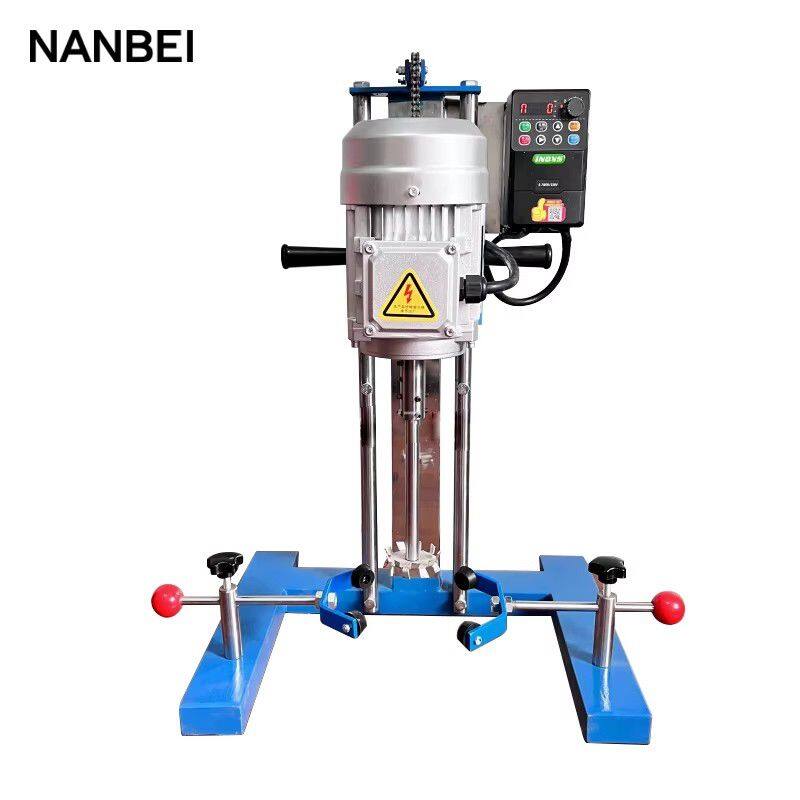

Laboratory High Speed Dispersing Machine Lab Dispenser Dissolver

Name: Laboratory High Speed Dispersing Machine Lab Dispenser Dissolver
Brand: NANBEI
SKU: 172746927

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

NANBEI

Place of Origin:

China

Model Number:

NDF-370

Nanbei Instrument Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name NANBEI

Place of Origin China

Model Number NDF-370

Size 425*425*700mm

Small Lab Disperser Machine Dissolver Paint Mixer

Instruction:

It can handle the dispersion, fine grinding, mixing and stirring of solid-liquid slurry, achieving functions such as

dispersion, grinding, stirring, and mixing.

NDF is applied in industries such as coatings, inks, color pastes, dyes, pesticides, cosmetics, etc. It can achieve fine

grinding and is widely used in laboratory scientific experiments, production simulation, and new product development,

as well as an ideal experimental equipment for various colleges and research institutions.

Structure :

1. The machine adopts a screw manual lifting mechanism, which can be lifted and lowered freely.

2. Adopt series-excited commutator motor, and implement stepless speed regulation on the motor through intelligent motor speed control instrument.

3. The dispersing impeller and the rotating shaft are directly connected with threads.

4. The barrel is fixed by the gripper

Explosion-proof laboratory disperser: The principle of the structure is that when the explosive gas mixture inside the

circuit explodes due to the influence of sparks or arcs, the circuit shell will not be damaged, and the heat energy

generated by this will not be smooth. Diffusion explosion is carried out outward, and there is a small gap along the

outer shell with sufficient connection length, and it is slowly made to the outer shell, and the instantaneous

temperature of the gas transmitted to the outer shell is not enough to ignite the explosive temperature of the

outside world. mixture, i.e. will not cause an explosion.

Specification

Model	NDF-370
Speed controller	CPU digital display stepless speed regulation,frequency speed control
Motor power	400W
Voltage	220V/50HZ
Speed	0-3000rpm
Disperser disc diameter	Φ 50 Φ 60 disks, one each
Contact material	SUS304
Lifting type	Manuel
Lifting stroke	250mm
Process capacity	0.3-1.5L/0.3-3L/O.3L-5L batch
Weight	27kg
Dimension	425425700mm
