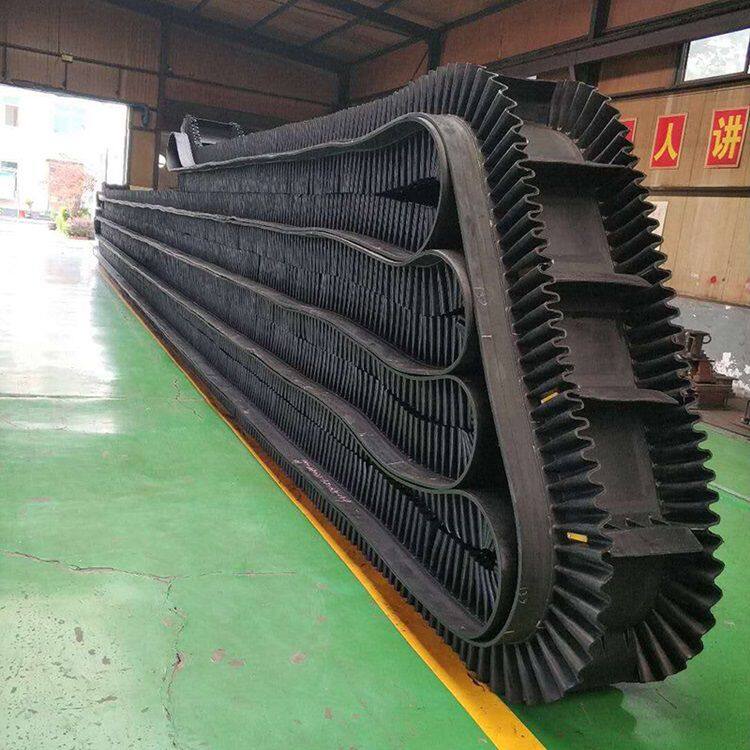

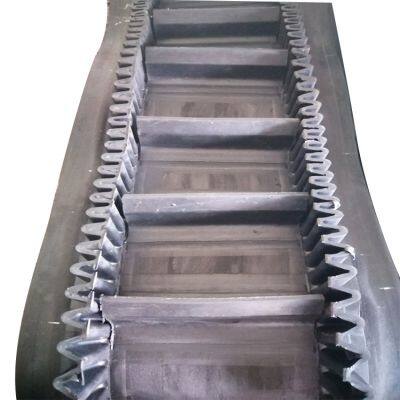

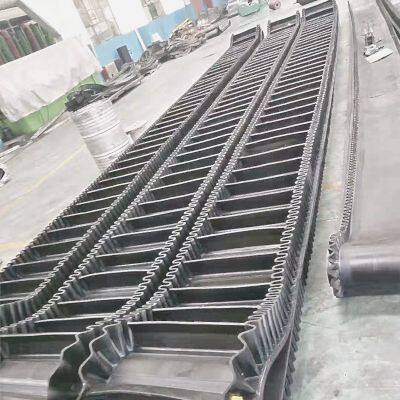

Ep200 Fabric Sidewall Large Angle Rubber Corrugated Sidewall Conveyor Belting

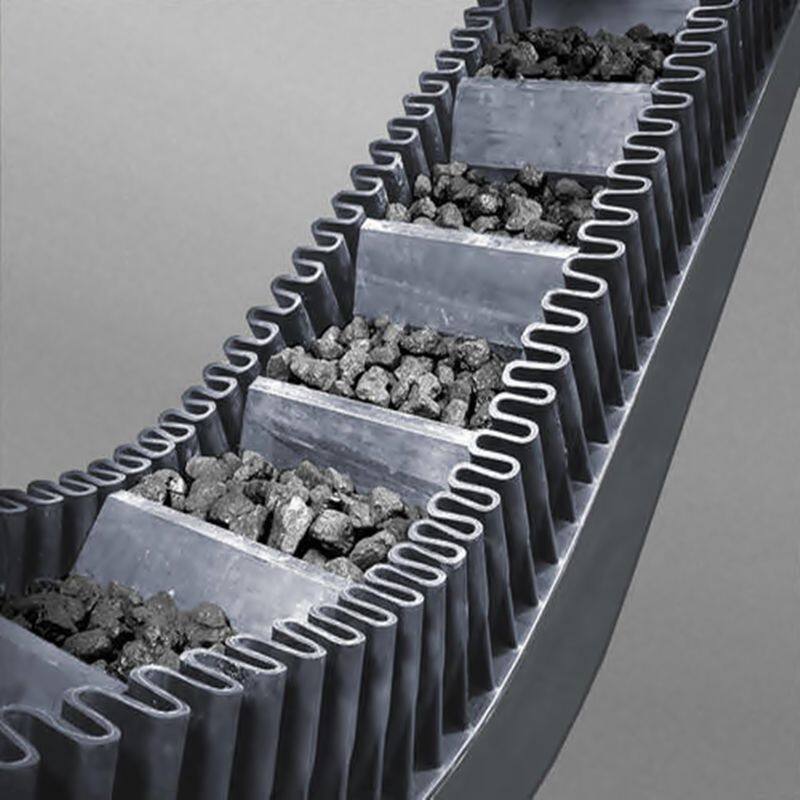

TRX conveyor belts are designed for horizontal, steep inclined and vertical handling of all kinds of bulk materials - from coarse-size coal and ore, rock, coarse sand or fertilizers. Lump sizes varying from powdery, floury material up to material with material size 400 mm (16"). Materials can be carried over 500 m (1,640') in vertical lift with capacities up to 6,000 t/h. TRX conveyor belts are supplied in standard black rubber quality of high abrasion resistance. In addition, other qualities such as heat and oil resistant or flame retardant rubber can be supplied.

Outstanding features：

• Quick installation

• Reduced number of transfer points

• Long service life

• Reduced power requirements

• Quiet running

• Reduced maintenance

• Environmentally friendly

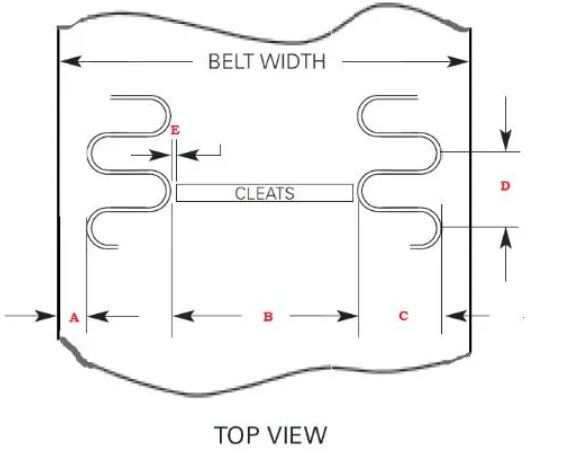

What do you need to know to get a sidewall conveyor belt quote?

• Conveyor belt sidewall height

• "A" - Indent of sidewall: measured from outside edge of the belt to the outside edge of the sidewall.

• "B" - Conveying area: the distance between the insides of both sidewalls, measured from one inside edge to the other inside edge.

• "C" - Corrugation width: measured from the inside edge of the sidewall to the outside edge of the same sidewall.

• "D" - Corrugation pitch: the distance between the center of each sidewall, measured from the center of one corrugation to the center of the next corrugation.

• "E" - Cleat gap (optional: for applications that have cleats present on the belt): the distance between the cleat and the sidewall, measured from inside of the sidewall to the edge of the cleat.

Cleat types: T, TS, C, TC and TCS
 The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
 "TS" and "TCS" cleat are normally used for abrasion condition
 "T" and "TS" cleat are normally used up to 40 degree
 "TC" and "TCS" are normally used from 40 degree to 90

The level of :2-10
Plastic cover: Face :1.5-8 mm non-Face: 0 mm-4.5mm

Height:35-360mm

Width:35-110mm

Hebei TRX Rubber Products Co., Ltd is a leading professional manufacturer of conveyor belts & conveyor accessories in China. The main workshops cover 20,000 square meters in the total 60,000 square meters of the plant. The applied technology and equipment in the advanced production lines are state of the art in the industry. The sales headquarters is located in the capital of China, Beijing with branches in domestic and abroad.

It specializes in following three series: 1) Heavy-duty Conveyor Belt, including universal EP/NN and CC Belt, Chevron Belt, Oil Resistant Belt, Abrasion Resistant Belt, Heat Resistant Belt, Fire Resistant Belt, Chemical Resistant Belt, Sidewall Belt, Flat Transmission Belts, 2) Rubber Sheets, including SBR, NBR, NR, CR, EDPM, Rubber With Insertion 3) Conveyor accessories. These three series of products conform to RMA, DIN, ASTM and ISO specifications.

Its products, honored with "The most Advanced level of Products" by the Committee of Science and Technology, have been widely used in mining and quarrying, power stations, steel plants, bulk cargo terminals, cement industry, and other material handling fields. With great success in domestic market, it has been focusing on global market with several hundreds of foreign valued customers in Asia, South America, North America, Africa and Europe.
