Description:
The CBL04M is an obstruction lighting Control box designed for controlling and monitoring Lansing LED low intensity and medium intensity aviation obstruction lights. The user-friendly interface is intuitive for users to monitor operation status and easily configure functions and for monitor lighting operation system for the following failures: burned out lamp, power failure. & flashing rate control.
There are 1-16 light outputs (max. 1A load/output). Practically, for example,it can connect four single QT2000 medium intensity aviation lights at the same time, or 2 dual DL32D aviation lights.
With a dry alarm relay (NO&NC), the control box is capable of transmitting the obstruction lighting system’s failure to users’alarm devices, when light failure, or power-off failure.
A external PT01 photocell is used for automatically switching on and off the obstruction lighting system from dusk to dawn, or we can put an internal photocell for easy installation if requires.
Bypass switch on interface panel allows users to bypass the photocell for permanently lightening or testing.
The system is fully protected from input transients, output overload, over-voltage, anti-surge protection device and over-temperature conditions. The watertight casting aluminum enclosure and lock provides protection from adverse weather and security from unauthorized access.
In addition to its advanced control capabilities, our controller is also designed with durability and reliability in mind. It is built to withstand the harsh environmental conditions that heliports often face, including heavy rain, extreme temperatures, and high winds. This ensures that the lighting system will remain operational at all times, without any compromise on performance.
Main functions and features：
• On/off Main Power Supply
• Optional GPS function and control several lights flashing synchronously
• LED indicators for light, power and photocell
• “Service+Service”/”Service+Standby” adjustable when double lights used
• 2-16 light-outputs, 1-16 selectable upon actual application
• Each light output load maximum 1A
• Steady and Flashing adjustable
• External photocell with prewired shielded cable, easy to maintain
• Photocell bypass switch—can switch ON/OFF the light when the photocell is not available
• Din-rail terminal blocks save wiring time and enhance wiring safety.
• Four dry contact relay ( NO&NC) for alarm output of lights and power.
• With RS485 communication protocol
• Circuit breaker against overload and short-circuit
• Surge protector up to 20KV against voltage fluctuation and lighting strikes.

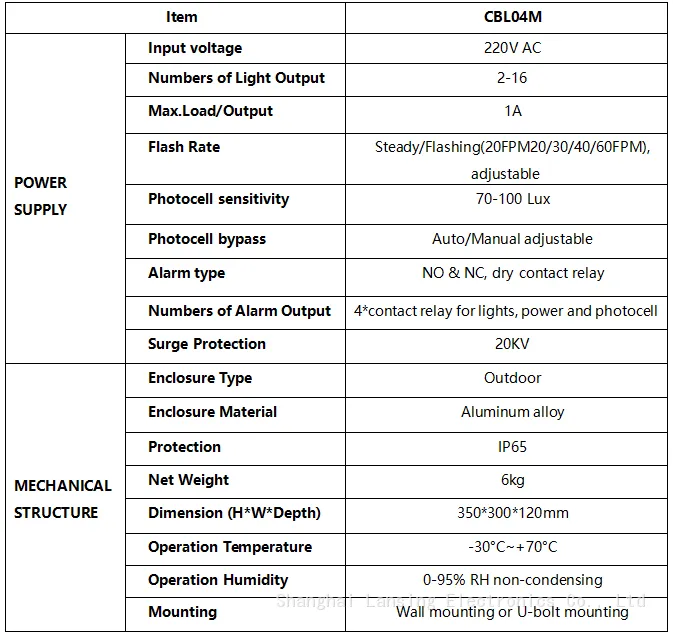

Specification：

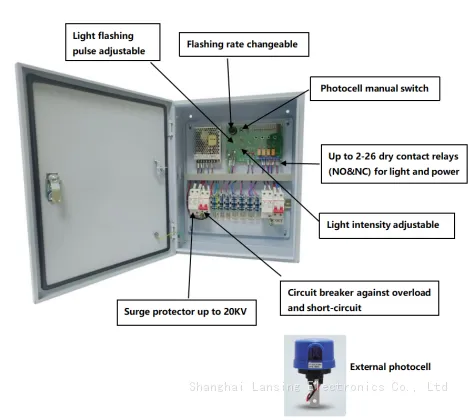

Advantages:
