Description:

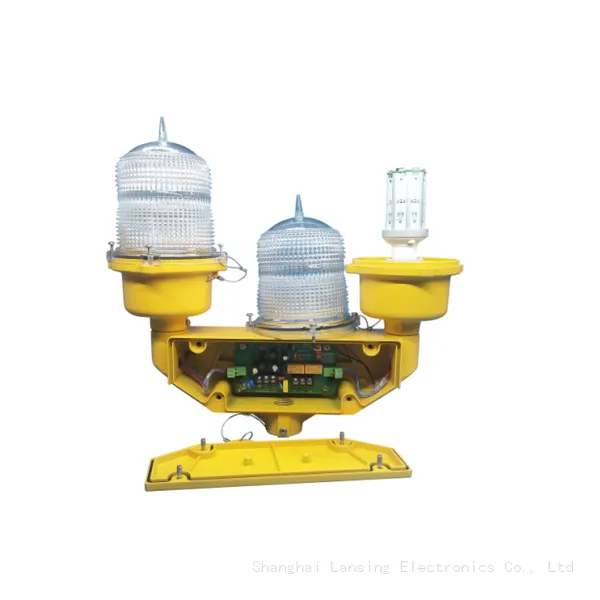

LANSING DL32DE low intensity dual obstruction light is composed of two DL32SE single obstruction lights and a compartment for its control board. It has two operation modes:“Service+Standby” and “Service+Service”. DL32DE dual aircraft warning light is compliant to ICAO obstacle light low intensity type B.
Service+Standby: one DL10SE single light (Service light) operates normally. Once Service light fails, DL32DE dual light automatically transfers to Standby light for continuous operation
Service+Service: two DL32SE single lights work simultaneously, and either failure does not affect the other normal operation.
With a G3/4” universal threaded hub on the bottom, DL32DE twin aircraft warning light can be mounted on a conduit or with Lansing brackets designed for towers and buildings. There is a terminal block on the control board in the intermediate compartment, for connecting to power and alarm.
In most cases, DL32DE double obstruction lights are installed on top of structures less than 45m. In some cases, multiple DL32DE double lights are used in one or more horizontal levels for marking a structure’s outline with medium intensity obstruction lights.

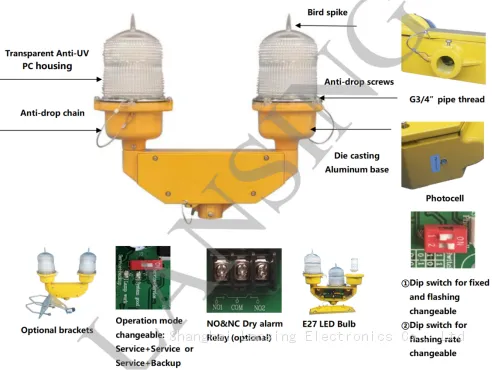

Features& Benefits:
• Based on Led Technologies with E27 Type led Bulb
• Available for both AC and DC conditions.
• Can be operated in steady-burning or flashing mode
• Lens made from durable, UV-stabilized LEXAN polycarbonate
• Aluminum base with powder painted, corrosion-resistant
• G3/4 threaded bottom entry for easy mounting
• All hardware of obstruction lights are made of corrosion resistant metals.
• Bird spikes for protection against droppings.
• With NVG(Night Vision Goggles), this should be customized(optional)
• Photocell option for automatic activation at night
• No regular maintenance
• Uses 96% less power than an incandescent light
• With surge protection up to 2KV
• Excellent shock and vibration resistant
• No RF Radiations, EMC Compliant
• Reversed Polarity Protected(DC Type)
• Corrosion resistant lamp & housing-suitable for off-shore use
• Self-contained wiring compartment-eliminates additional box
• Flashing rate adjustable
• Both NO and NC dry alarm contacts are available, and it will give an alarm in case of power and light failure(optional).
• Available both in single and double type
• 2 years warranty

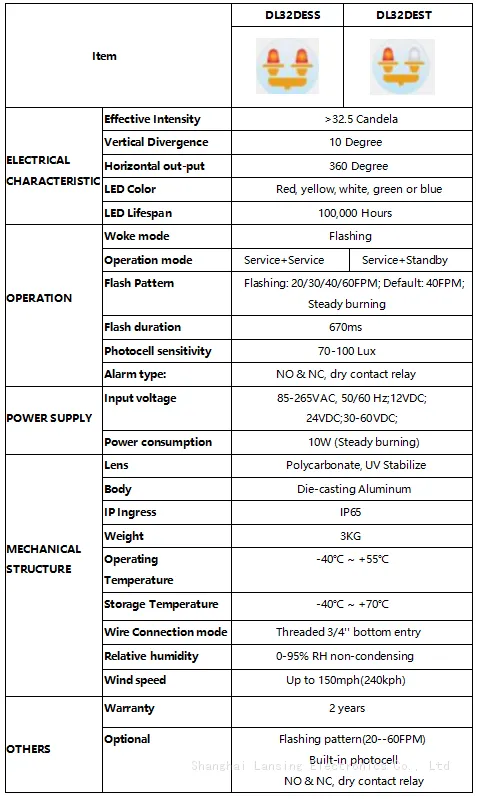

Specifications
Advantages
