Features:
1. The co2 rf laser marking machine has excellent beam quality, stability, and more precise and smooth marking,the max marking speed can reach to 7000mm/s.
2. The co2 rf laser marking machine adopts mechanical moving parts with simple structure, wear resistance, and corrosion resistance, making the system have good stability and high motion accuracy.
3. It can operate at full load for 24 hours, meeting the requirements of the production party for large-scale production.
4. The co2 laser printing machine can meet user requirements of the various elaborate patterns in tiny surface, the effect is stable and beautiful.
5.This co2 laser printing machine has an adjustable lifting handle, which can adjust the distance between the marking head and the object to be marked, so that the marking is more accurate, and the maximum adjustment distance can be 400mm.
Technical Data:

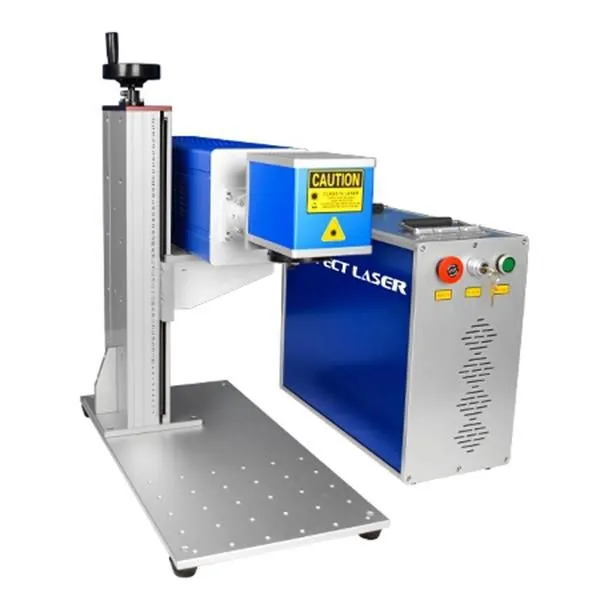

Product Name | 30W Nonmetallic Materials Desktop Split Type Co2 Laser Marking Machine |
Equipment Type | PEDB-C30B |
Laser Type | Co2 laser |
Laser Power | 30w |
Working Table | 110mm×110mm |
Scanning Speed | 0-10000mm/s |
Spot size | ≤ 40 micron (F-theta 160) |
Cooling unit | Air cooled |
Laser Tube life Time | 20,000~30,000 hours |
Marking Depth | 0.01~0.3mm |
Repeated Accuracy | 0.01mm |
Laser Wavelength | 1064um |
Minimum Line Width | 0.015mm |
Power Supply | 220v (50-60hz) |
Software | Professional laser marking software |
Control system | EZ-CAD |
