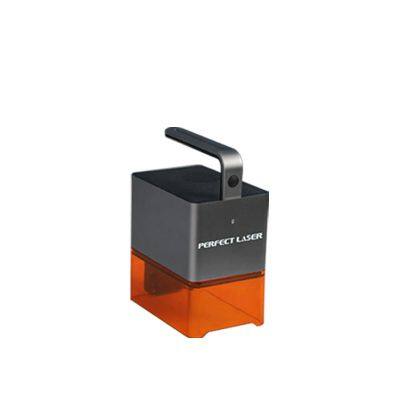

Help Center5W Portable Handheld Small Laser Marking and Engraving Machine for Wood/Bamboo/Acrylic/Leather/Paper
Related Products
-
5W Full Automatic Desktop Mini Portable Laser Marking MachineNegotiableMOQ: 1 Unit -
3W Portable Mini Desktop Metal Laser Engraving and Cutting Machine For Wood/ Leather/Bamboo/Food/Plastics/Kraft |Paper/Painted Meta/Ceramics/GlassNegotiableMOQ: 1 Unit
-
10W Dual Red Light Positioning Mini Portable Desktop Precision Metal Laser Marking MachineNegotiableMOQ: 1 Unit
-
Red And Blue Dual-light Rotatable Automatic Small Metal Laser Marking Engraving MachineNegotiableMOQ: 1 Unit
-
20W 30W Mini Integrated Multifunctional Fiber Laser Marking MachineNegotiableMOQ: 1 Unit
Features:
1. The mini handheld laser engraving machine only weighs 680g, It feels weightless in the hand, compact volume and convenience.
2. The mini handheld laser engraving machine has dual-mode wireless connection and USB-Type C wired connection. The mobile power design is convenient for users to use flexibly, and the operation is simple, fast and stable.
3. The portable laser engraving machine compatible with a variety of devices, two modes of operation: handheld and stand, powerful editing function, easy to use with zero foundation.
4. It adopts professional-grade field lens double-focus design, focuses the laser through the compression spot technology, and can realize 0.05mm high-precision engraving.
5. Magnetic absorption laser eye shield can be removed, lens installation is convenient. There is no pressure to watch engraving with naked eyes. The engraving effect can be viewed at any time.
6. The portable laser engraving machine equipped with a magnetic base and a focusing needle to assist focusing, it can achieve precise and fast engraving of objects of different heights.
Technical Data:
Product Name |
5W Portable Handheld Small Laser Marking and Engraving Machine |
Model |
PEDB-50 |
Laser Focus |
With magnetic base: no need to focus, With the use of engraving with manual lifting frame: focus needle assisted focus. |
Power |
5W |
Marking Precision |
0.05MM |
Marking Size |
5CM×5CM |
Voltage |
AC100-240V |
Cooling Method |
Air Cooling |
Use Environment |
Dry, no pollution, no vibration, no strong electricity, etc |
Laser Lifetime |
＞10000H |
Marking Speed |
The maximum speed can reach 600MM/S. (Note: Speed is related to material and depth.) |
Focus Mode |
Manual |
Support System |
WIN7/WIN8/WIN10/IOS/MAC/ANDROID |
Picture Format |
JPEG/BMP/GIF/PNG/JPG/XJ/PLT/DXF/HPGL |
Material Appearance |
High strength aluminum, anodized, space gray |
Communication |
Dual-mode 5.0 wireless connection, support IOS and Android mobile applications; USB-Type C wired connection, supports MAC and Windows desktop applications; |
Power Input |
12V/5A Dc power supply or mobile power supply |
Power Dissipation |
Standby state ＜1.5A; The carving state ＜4A |
Machine Size |
Length×Width×Height:11.4CM×7.6CM×15.3CM |
Package Dimension |
37.5CM×22CM×16.5CM |
Operating Temperature |
0℃～30℃ |
Operating Humidity |
30-65%(No Condensation) |
