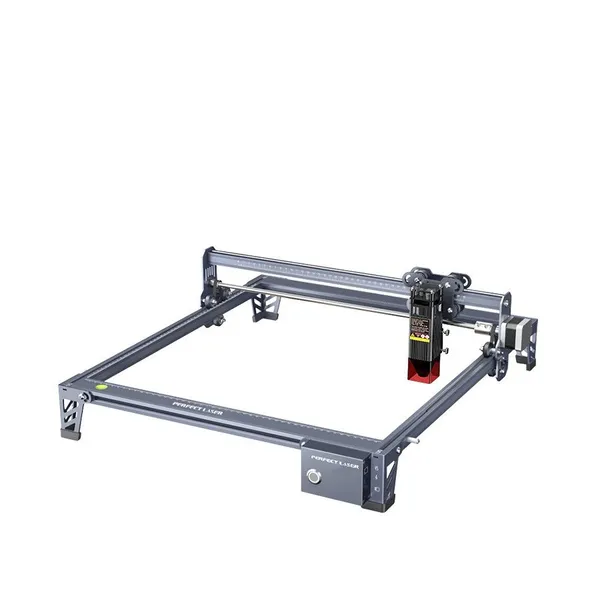

Help Center400x415mm 10W Intelligent Automatic Portable Desktop Small Laser Cutter Engraver
Related Products
-
2W Mini Multifunctional Automatic Portable Metal Laser Engraving MachineNegotiableMOQ: 1 Unit -
5W Intelligent Mini Fold-able Desktop Automatic Laser Engraving Cutting MachineNegotiableMOQ: 1 Unit
-
5W Intelligent Rechargeable Small Portable Handheld Laser MarkerNegotiableMOQ: 1 Unit
-
5W Portable Handheld Small Laser Marking and Engraving Machine for Wood/Bamboo/Acrylic/Leather/PaperNegotiableMOQ: 1 Unit
-
5W Full Automatic Desktop Mini Portable Laser Marking MachineNegotiableMOQ: 1 Unit
Features:
1.The wood laser engraving machine using multi-lens laser combination scheme, the spot is compressed to 0.06mm ultra-high precision, and the carving details are more abundant.
2.The 10w laser module is more powerful, the beam Rayleigh length is longer, the penetration is stronger, and it is easy to cut thicker materials. The wood laser engraving machine can carve a variety of hard object surface.
3. Large size working area, large format works can be created without multiple carving, once can be achieved, it also can be optional to adjust the height column up to 150mm.
4. Support multiple software, multiple formats and multiple materials.
5.Under the offline working condition, the control of the wood laser engraving machine can be realized by one key. With the breathing lamp, the working state of the machine is clear at a glance, and it is more interactive.
6.60% of the components are modular and support fast assembly.
7.The desktop laser etching machine adopts dual stepping motors, built-in 32-bit main control chip, mute main board, and self-developed algorithm to precisely control the left and right Y-axis movements, and the running trajectory is highly synchronized, making the operation more stable.
Technical Data:
Product Name |
10W Desktop High Accuracy Large Format Laser Engraving Machine PEDK-20 |
Spot Size |
0.06mm |
Carving Depth |
0-10mm |
Cutting Thickness |
0-18mm |
Laser Wavelength |
455±5nm |
Laser Power |
10W |
Carving Accuracy |
254 dpi |
Carving Speed |
MAX 10000mm/min |
Carving area |
400*415mm |
Light Source |
semiconductor laser |
Input voltage |
100~240V 50~60 Hz |
Output Voltage |
DC 24.0V 3.0A |
Operating System |
Windows/Mac OS |
Format |
gcode(after slicing) |
Slice File Format |
svg, png, jpg, jpeg,bmp, dxf |
Slice Software |
LaserGRBL，LightBurn |
Application Materials |
plastic, matte stainless steel, metal paint surface, anodized surface, electrophoretic surface, dark metal surface, etc |
