Home > Industrial Equipment & Components > Valve > Ball Valve > DIN3302 Epoxy Coated Ductile Iron Pneumatic Triple Double Eccentric Type Electric Actuator Flange Butterfly Valve

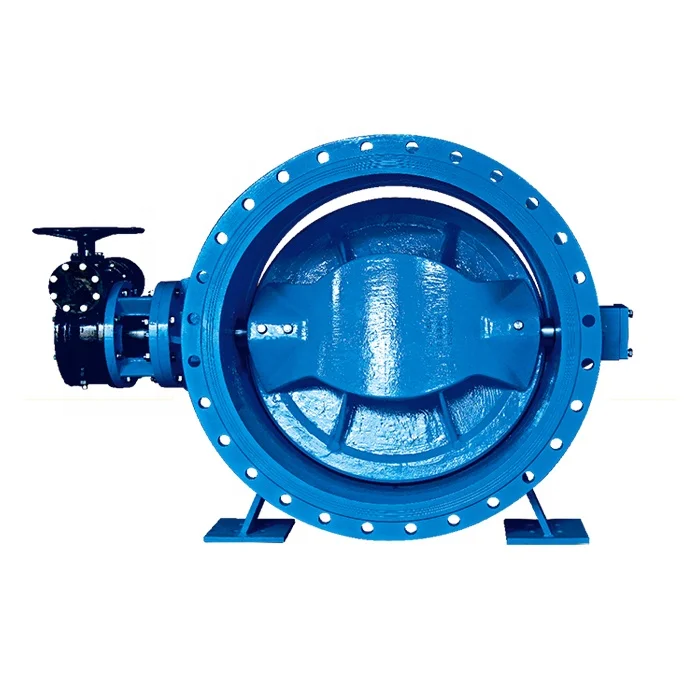

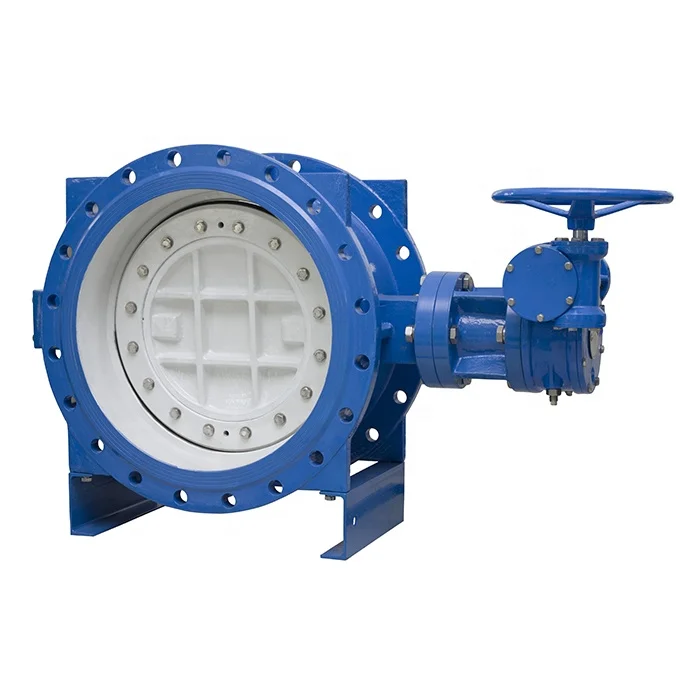

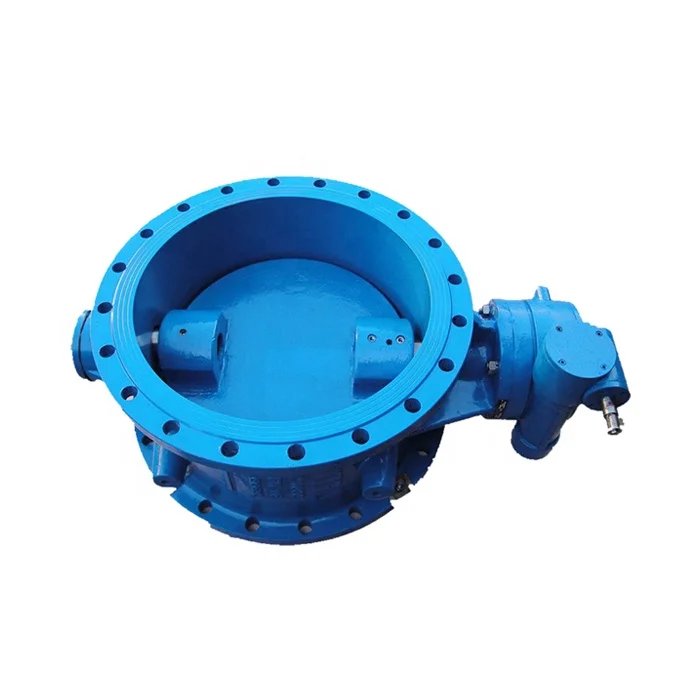

DIN3302 Epoxy Coated Ductile Iron Pneumatic Triple Double Eccentric Type Electric Actuator Flange Butterfly Valve
US$ 10.00 - 100.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
ANSI B 16.1,EN 1092,AS 2129 Lug Type Butterfly Valve With Two StemsUS$ 10.00 - 100.00MOQ: 50 Pieces -
EPDM Lined Electric Actuator Butterfly Valve For Drink WaterUS$ 10.00 - 100.00MOQ: 50 Pieces
-
Ductile Iron Worm Gear Operated Lug Type EPDM/PTFE/NBR Lined Seat Butterfly ValvesUS$ 10.00 - 100.00MOQ: 50 Pieces
-
API 609 / ISO 5752 / BS 5155 Cast Iron Gear Box Operated Wafer Butterfly ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
Manual Double Flanged Butterfly Valve With Handle Lever OperatorUS$ 10.00 - 100.00MOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
Standard:
1. Design standard: BS5155, MSS SP 68.
2. Test standard: DIN3230 Part3, API598, EN12266-1.
3. Face to face standard: DIN3202 F4, EN558 13/14 series, ISO5752 13/14 series.
4. Flange connection: DIN 2501 PN10/16, BS4504 PN10/PM16, ASME B 16.1 125LB/150LB, JIS B2220 10K.
5. Medium: water, oil, gas and so on.
6. Working pressure: 10 bar/16 bar
7. Test pressure:
Shell: 15bar/24 bar
Seal: 11bar/17.6 bar
NO. |
Name |
Material |
Specification |
1 |
Body |
Ductile Iron |
ASTM A536 |
2 |
Disc |
Plated Ductile Iron |
ASTM A536 |
3 |
Stem |
Stainless Steel |
A276-410 |
4 |
Disc sealing |
NBR(NIRILE) EPDM |
|
5 |
Pin |
Stainless Steel |
A182 F6A |
6 |
Clamping ring |
Steel |
|
7 |
Bushing |
PTFE |
|
8 |
Connecting bracket |
Ductile iron |
ASTM A536 |
8 |
Packing gland |
Ductile iron |
ASTM A536 |
10 |
Packing |
EPDM NBR |
Detailed Images
