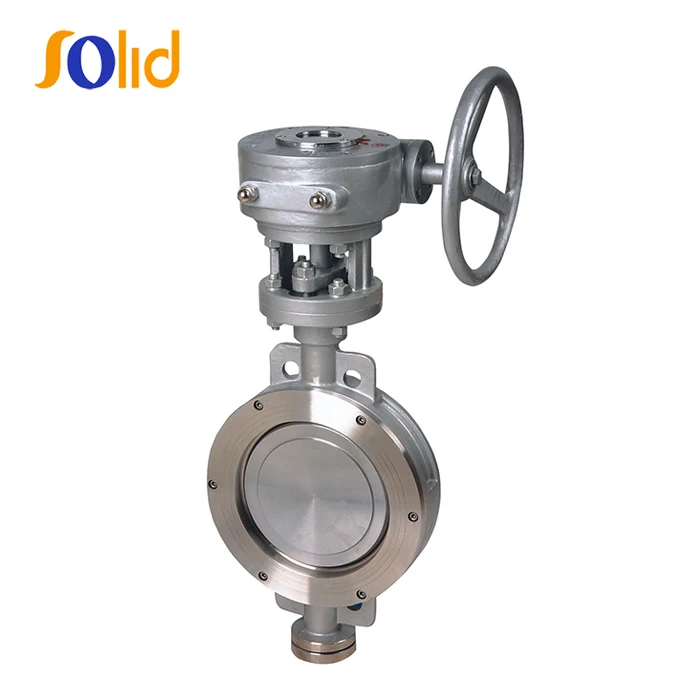

API609 Stainless Steel SS304 Metal Seat Wafer Triple Double Offset Eccentric Butterfly Valve
US$ 10.00 - 100.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
Stainless Steel CF8 CF8M Lug Type Butterfly ValveUS$ 10.00 - 100.00MOQ: 50 Pieces -
API Carbon Steel Stainless Steel Disc PTFE Seat Handles Manual Wafer Butterfly ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
High Performance Cast Steel Triple Eccentric Flange Butterfly Valve Metal Seated Butterfly ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
Stainless Steel Sanitary SS304/SS316 Butterfly Valve With Pneumatic ActuatorUS$ 10.00 - 100.00MOQ: 50 Pieces
-
Ductile Iron One Piece Type PTFE Lined Wafer Butterfly ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Packaging & Shipping
Wafer offset butterfly valve is one type of triple offset butterfly valves, which is normally used in the high pressure and high temperature pipeline. The triple offset butterfly valves are normally with cast steel and stainless steel. Not like rubber lined butterfly valve, triple offset butterfly valve is normally applicable to oil, gas, steam, sewage, corrosive mediums with high pressure and temperature. According to the ends connection type, it can be divided into wafer triple offset butterfly valve, lug triple offset butterfly valve and flanged triple offset butterfly valve. Normally, the triple offset butterfly valve is metal seated, but we can produce it with soft seated according to customer’s request. The double flanged triple offset butterfly valve is suitable for 90° on-off operation and regulation service. Flowspec Luokai can manufacture the wafer offset butterfly valve according to API609 standard with sizes of 2 inch~40inch (DN50~1500mm).
STANDARDS
Design & manufacturing: API609
Face to face: API609
Flanged ends: ASME B16.5, ASME B16.47
Top flange: ISO 5211
Inspection & testing: API598
Pressure-temperature rating: ASME B16.34
Fire safe: API607
SPECIFICATIONS
150LB, 300LB, 600LB, 900LB
Size: 2”~40” (DN50~1500mm)
Materials: steel(A216 WCB), stainless steel 304(CF8), stainless steel 316(CF8M), duplex stainless steel(2205, 2507)
Operation: manual, pneumatic, electric, hydraulic
Applicable medium: air, water, steam, gas, oil, acid, alkali, salt corrosive liquids
Applicable temperature: -29℃~+425℃ (higher temperature is available upon request)
