Home > Industrial Equipment & Components > Valve > Ball Valve > Stainless Steel Sanitary SS304/SS316 Butterfly Valve With Pneumatic Actuator

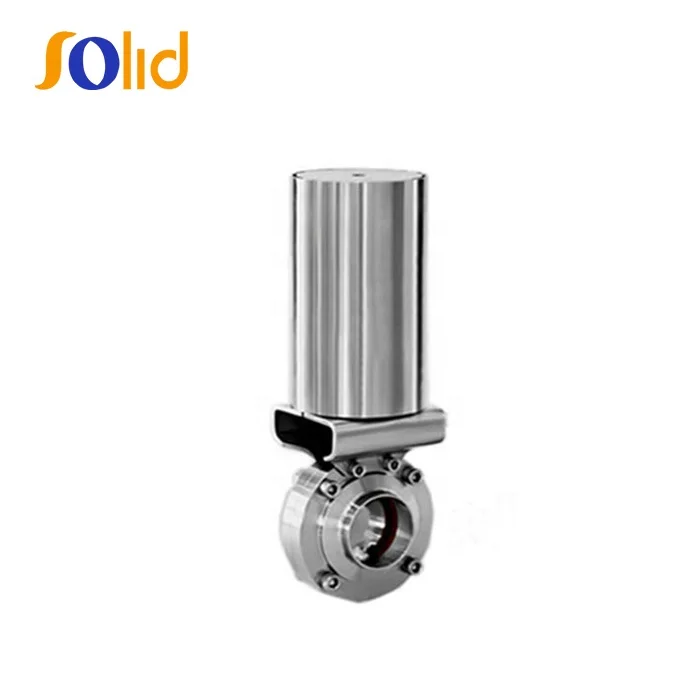

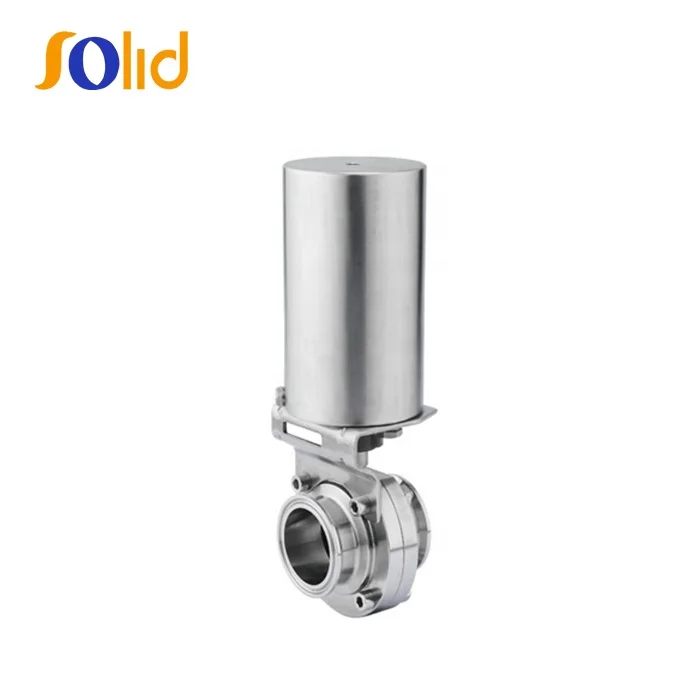

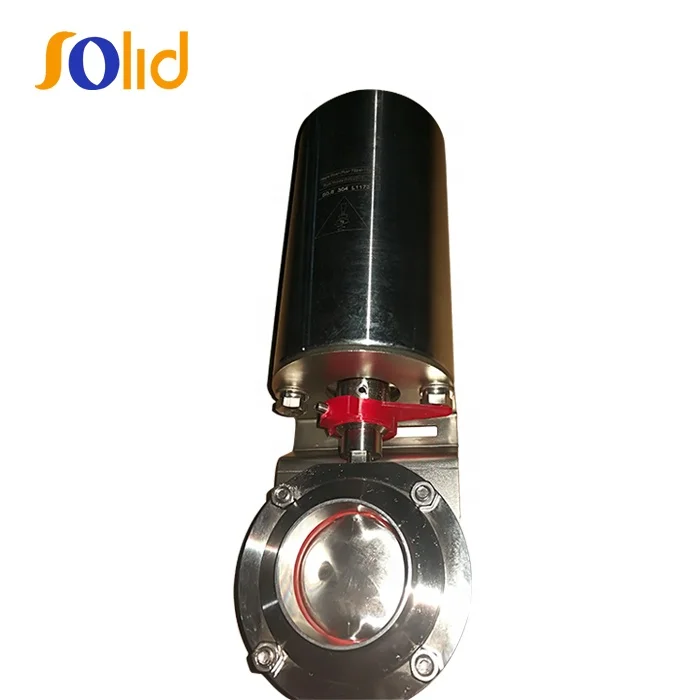

Stainless Steel Sanitary SS304/SS316 Butterfly Valve With Pneumatic Actuator
US$ 10.00 - 100.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
Ductile Iron One Piece Type PTFE Lined Wafer Butterfly ValveUS$ 10.00 - 100.00MOQ: 50 Pieces -
DIN3302 Epoxy Coated Ductile Iron Pneumatic Triple Double Eccentric Type Electric Actuator Flange Butterfly ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
ANSI B 16.1,EN 1092,AS 2129 Lug Type Butterfly Valve With Two StemsUS$ 10.00 - 100.00MOQ: 50 Pieces
-
PN10/16 CE Certificate Ductile Iron Cast Iron Wafer or Lug Type Butterfly Valve Price ListUS$ 10.00 - 100.00MOQ: 50 Pieces
-
BS EN 593 Standard Big Size Flanged End EPDM Lined Industrial Control Double Eccentric Flange Butterfly ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
Name: Butterfly valve
Specification:
Material: AISI304, AISI316L
Specification: DN15-DN200
Standard: ISO, DIN, 3A, etc
Maximum: 1.0Mpa(10bar)
Model of drive: Manual, Electric, Pneumatic
Connection: Welded, Clamped, Threaded, Flanged
Working Principal: Manual operation or driving device operation
Actuating device: Normally closed, Normally opened, opened and closed by two air flues separately
Electric drive: (DC)12V, 24V, 36V (AC)220V, 380V
Sealing Material: Silicon rubber, EPDM or FPM
Application: Dairy, Beverage, Food, Beer, Pharmacy, Biotechnology, Cosmetic etc.
| Size | O | G | A | Dc | H | H1 |
| DN15 | 78.0 | 34×1/8 | 66.0 | 85.0 | 222.5 | 180.5 |
| DN20 | 78.0 | 44×1/8 | 66.0 | 85.0 | 222.5 | 180.5 |
| DN25 | 78.0 | 52×1/8 | 66.0 | 85.0 | 222.5 | 180.5 |
| DN32 | 88.0 | 58×1/8 | 70.0 | 85.0 | 226.5 | 180.5 |
| DN40 | 90.0 | 65×1/8 | 74.0 | 85.0 | 228.5 | 180.5 |
| DN50 | 106.0 | 78×1/8 | 76.0 | 85.0 | 236.5 | 180.5 |
| DN65 | 124.0 | 95×1/8 | 84.0 | 85.0 | 245.5 | 180.5 |
| DN80 | 139.0 | 110×1/4 | 90.0 | 85.0 | 253.0 | 180.5 |
| DN100 | 159.0 | 130×1/4 | 105.0 | 85.0 | 263.0 | 180.5 |
| DN125 | 185.0 | 160×1/4 | 130.0 | 133.0 | 415.5 | 296.0 |
| DN150 | 215.0 | 190×1/4 | 150.0 | 133.0 | 430.5 | 296.0 |
Detailed Images
