Home > Products > BRASS VALVE > 3/4" Customized Quality Forged Lockable Thread Brass Ball Valve

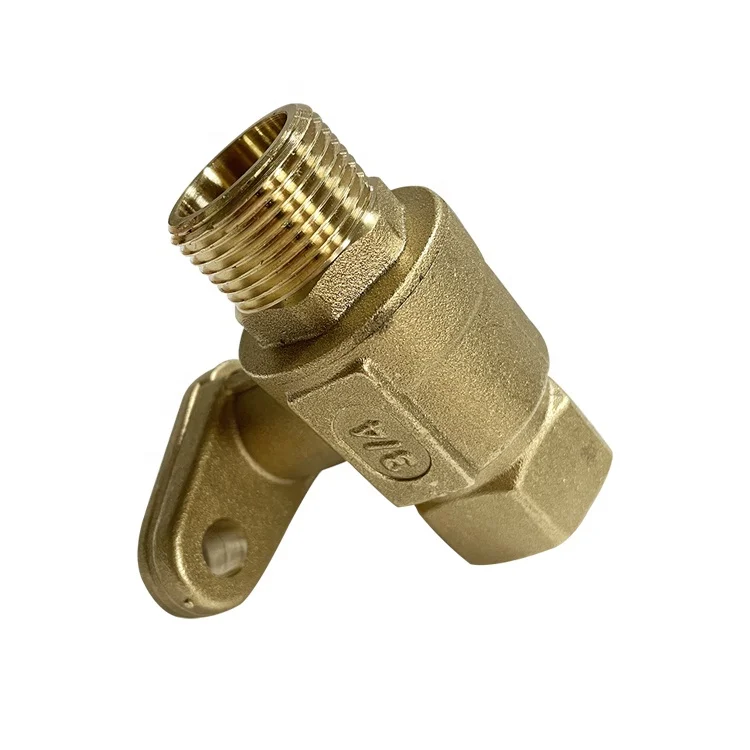

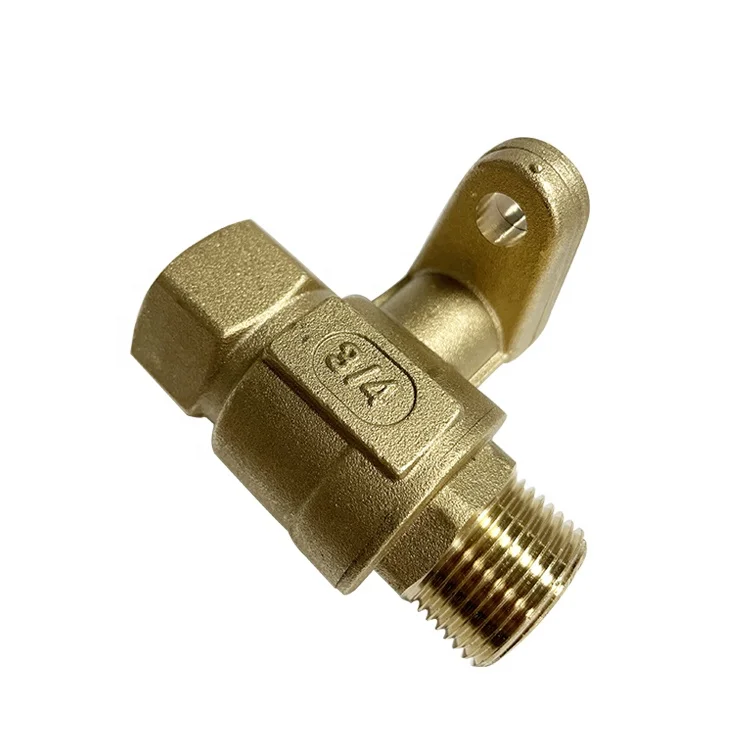

3/4" Customized Quality Forged Lockable Thread Brass Ball Valve
USD $2.25 - $5.50
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- TIANJIN,QINGDAO,SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
High Quality China Price Full Flow DN15 Forged Brass Lockable Ball Valve
-
CW614n BSP Threaded Brass Gate Valve With Price
-
Hot Selling Pn16 Low Pressure Brass Ball Valve with Handle Lever
-
MS58 1/2"-4" brass gate valve
-
Non Return Brass Vertical Spring Check Valve
-
Supply High Quantity 1/2" to 4" CW617n Non-return Brass Swing Check Valve
Product Details
| Brand Name | solid | Place of Origin | China |
Product Description
Product Description

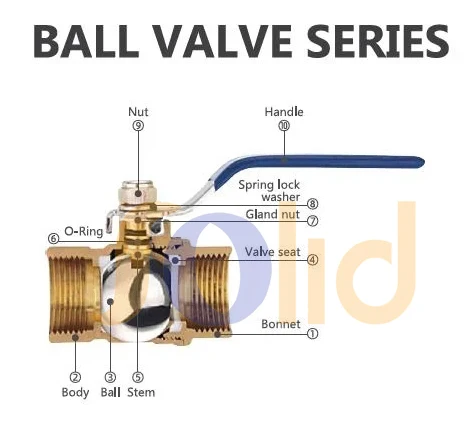

About Ball valve:
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting
ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it
is pivoted90-degrees by the valve handle. The handle lies flat in alignment with the flow when open,
and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
In the case that a ball valve is used for cryogenics or product that may expand inside of the ball, there
is a vent drilled into the upstream side of the valve. This is referred to as a vented ball. Safety is the
number one concern when engineers specify a vented ball.
Technical Standard
| Material | CW614N,CW617N,HPb59-1,DZR,etc |
| NorminalPressure | 1.6Mpa, 2.0MPa, 2.5Mpa |
| Size | DN15-DN100, 1/2"-4" |
| Working Medium | Water, Non-causticity liquid, Saturated steam (≤0.6MPa) |
| Working Temperature | -20℃≤t≤150℃ |
| Thread | ISO228/1,BSP,BSPT,NPT, ANSI BI 20.1 or as per requst |
| Standard | BS5154, EN1254-1, ASME16.22 |
Detailed Images
