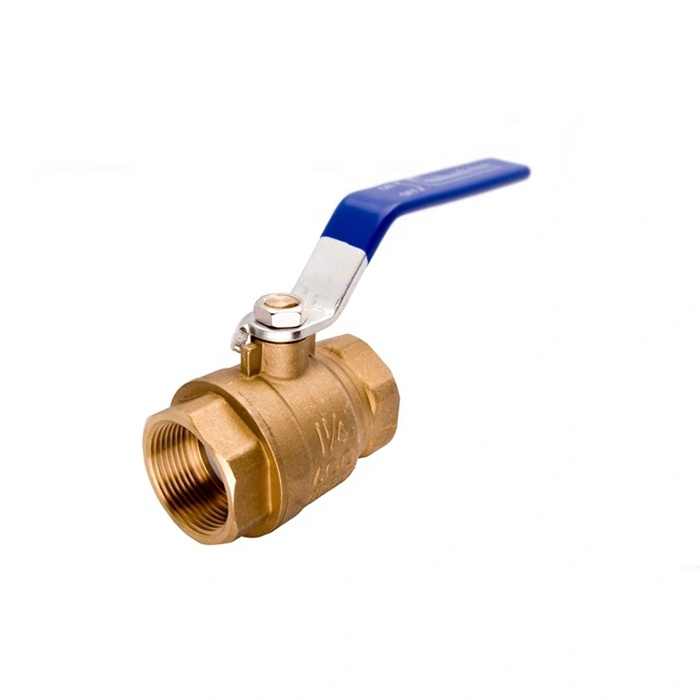

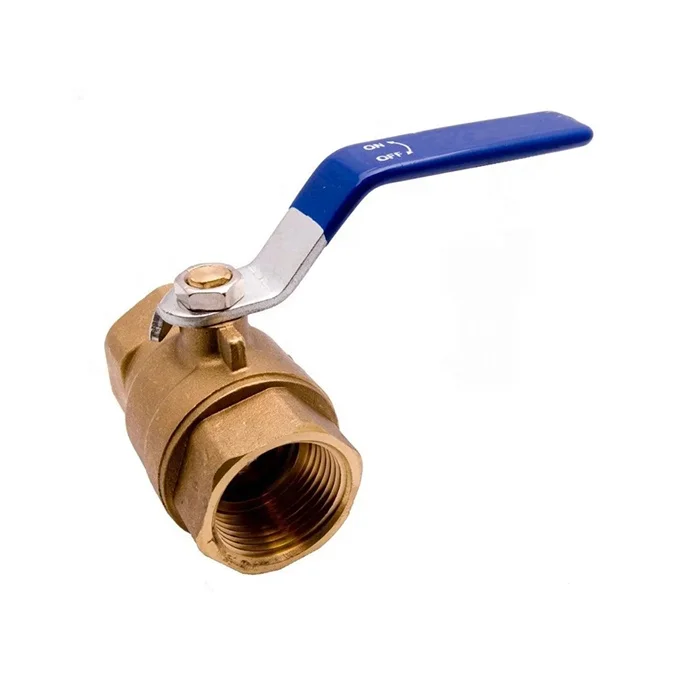

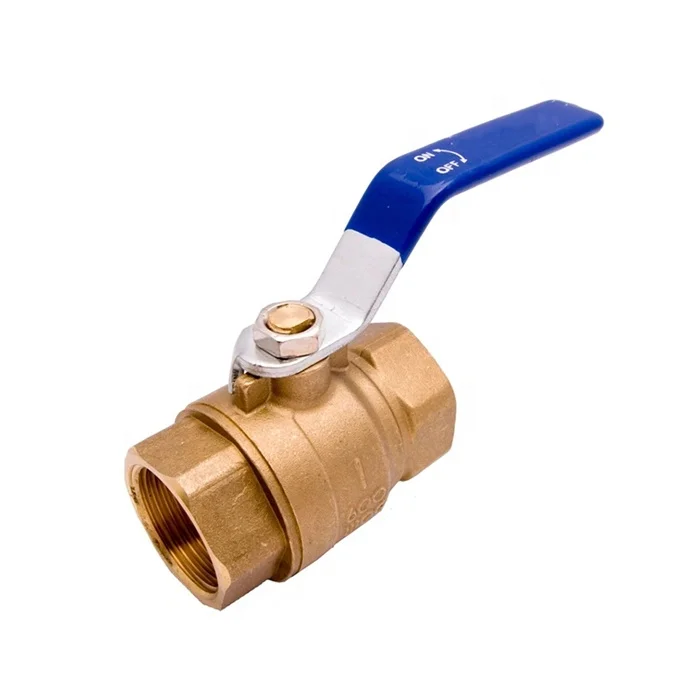

1/2" Inch - 4" Inch Brass Ball Valve Full Port for Water Oil and Gas with Blue Handle
US$ 6.50 - 12.00
/ Piece
50 Pieces(Min. Order)
- TIANJIN,QINGDAO,SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
CW617N forged bronze brass full way gate valve
-
Brass Spring Non Return Check Valve
-
200 WOG Threaded Brass Gate Valve 1inch 2inch
-
BS EN 13959 compression ends brass single check valve
-
Manufactures Best Price Full Bore Port Npt Thread Brass Ball Valve for Water
-
Engineering Special 3 inch 200 wog brass gate valve for water
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
1. Working pressure: 1.6Mpa
2. Working temperature: -10ºC~+120ºC
3. Face to face according to GB9113
4. Medium: Water, Steam, Oil etc.
DIMENSIONS:
| SIZE | L | B | H | D |
| 1/2" | 67 | 43 | 13 | 12.5 |
| 3/4" | 74 | 47 | 17 | 13.5 |
| 1" | 82 | 50 | 21.5 | 14.5 |
| 1 1/4" | 92 | 54 | 26 | 15 |
| 1 1/2" | 106 | 56 | 31 | 15.5 |
| 2" | 128 | 64 | 40 | 16.5 |
| 2 1/2" | 163 | 80 | 53 | 21.5 |
| 3" | 177 | 84 | 61 | 22 |
| 4" | 220 | 92 | 73 | 23.5 |
Detailed Images
