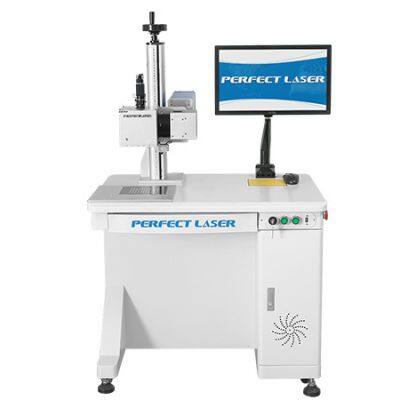

CCD Camera Auto Identifying & Positioning China Industrial Fiber Laser Engraving Marking Machine For Ultra Small Parts and Letters Marking
- 5000 Set / Sets per Month
- T/T L/C PayPal
You May Like
-
50W 100W Metal and Plastic Fiber Laser Etching Marking Machine Large Size Seamless Splicing Laser Marking Machine
-
Wire Marker 3W 5W UV Laser Date Logo Code Number UV Laser Marking Machines For ABS Tube Engraving
-
CCD Camera Automatic Visual Positioning System Industrial UV Laser Marking Engraving Machine
-
Enclosed cover 30w 50w 100 Watts Desktop Metal Steel Raycus MAX JPT Laser logo Marker Engraver Etching Engraving printing Marking Machines
-
20w 30w 50w Enclosed Fiber Laser Engraving Marking Machines for Metal
-
Full Enclosed Cabinet Fiber Laser Metal Etching Machine
Product Details
| Brand Name | Perfect Laser | Place of Origin | China | |
| Model Number | PEDB-480 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New | |
| Power(W) | 20w/30w/50w | Graphic Format Supported | DXF, PLT | |
| Control Software | EZCAD | Cooling Mode | Air Cooling | |
| CNC or Not | Yes | Laser Type | Fiber Laser |
Product Description
For some small parts or small letters, the positioning is not easy to be done by hand, so Perfect Laser launching a new CCD automatic positioning fiber laser metal engraving marking machine. It adopts a 5 megapixel coaxial CCD camera, can realize automatic positioning, it can enlarge the marking area and achieve 0.02mm ultra high positioning accuracy.
This industrial laser marking machine is especially suitable for marking on ultra high-precision valuable parts which is not easy to be positioned by hand, such as: electronic components, IC chips, circuit boards, resistors, small capacitors, metal buttons, pens, etc., more suitable for marking on the parts which is not possible for positioning by hand.
1. Automatically CCD positioning and identifying. With new developed CCD visual system, the objects can be marked on the appointed area in any position as long as the objects are within the scope of the laser scanner. It greatly increase the productivity and simplify the process of production. Usually the fiber laser metal engraving marking machine can work with conveyor belt for production lines which has high requirement for speed and precision.
2. CCD camera with 5-megapixel. High resolution, and clearly capture the feature points in real time. Any shape can be identified, and marking area of the industrial laser marking machine is controlled by software. Clearly track marking process in computer. This process is especially suitable for small tiny products.
3. Beautiful appearance, compact structure. Rotary system is optional item.
4. The fiber laser metal engraving marking machine’s working format is 110mm×110mm, which can meet the size requirements of most precision devices.
5. No consumables and wearing parts.
6. CCD camera software supports win7 32-bit and 64-bit computer systems.
7. The industrial laser marking machine supports AI, BMP, DST, DWG, DXF, DXP, LAS, PLT and other graphic formats.
Tags: fiber laser metal engraving marking machine,china fiber laser marking machine, industrial laser marking machine.
Product Name | CCD Camera Auto Identifying & Positioning Industrial Laser Marking Machine |
Model | PEDB-480 |
Laser Type | (Brand: Mopa / Raycus / Max / IPG) |
Laser Power | 20w / 30w / 50w |
Marking Area | 110mm×110mm |
Optional Marking Area | 175mmx175mm |
Camera Pixel | 5000000 |
Camera Positioning Accuracy | 0.02mm (Ultra high) |
Camera Software Size | 7.2G |
Camera Software Environment | Computer system for Win7 32-bit/64-bit |
Marking Object Placement Requirements | Within ±20° of inclination |
Dongle | 1 Marking Software Dongle and 1 Camera Dongle |
Support Graphic Formats | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,etc |
Machine Power | 500W |
Working Voltage | AC110-220V ±10%/10A,50-60HZ |
Packing | Standard Plywood Case Comply with Export Standard |
Control Software | Perfect Laser Professional Laser Marking Machine Software |
Guarantee | 36 months guarantee for whole machine |
Training | VCD Training Video for Easy Learning Engineer Overseas Installation & Training is Available |
