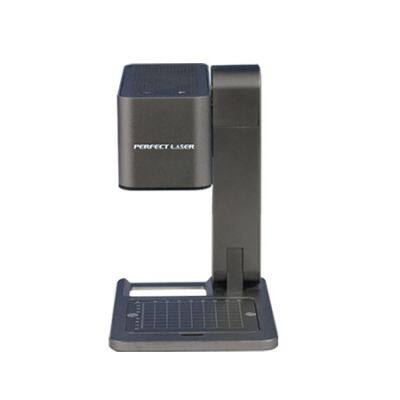

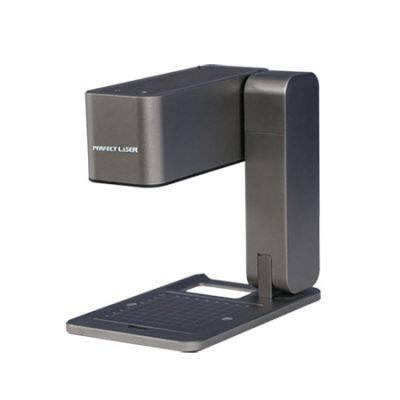

The PEDB-20 intelligent small laser marking machine has 5 core components such as fiber laser, 32-bit high speed MCU processor, stepper motor, motor driver and motherboard, the small laser marking machine realizes the cutting and horizontal, vertical, tilt and other angles of engraving needs.It is a small size, light weight, high speed, high flexibility, cost-effective intelligent small laser marking machine.
1.The portable laser marking machine is made of high-strength aluminum body, beautiful appearance, small size,weight less than 1.9kg, can be folded into the bag, easy to carry out in outside.
2. Motor control bracket lifting, one key automatic focus, easy to operate, high reliability, long service life.
3. The rotary shaft can be inclined to any Angle, with roller, can be cylindrical, curved surface and other large and small objects engraving.
4. The portable laser marking machine bottom plate adopts hollow design, engraving space is not restricted, help sculpt large objects.
5. The portable laser marking machine built-in gyroscope, with tipping protection function.
6. Integrated galvanometer design, matching field mirror reach at more than 600mm/s, sensitive response, good compatibility, marking more stable and higher sensitivity.
7. The intelligent portable laser marking machine uses the mainstream operating system, support Win, Mac, IOS and Android software operation.
8. Can carve and cut, can cut thickness of less than 2mm wood, paper, leather, etc.
Model | 5W Intelligent Mini Fold-able Desktop Automatic Laser Engraving Cutting Machine PEDB-20 |
Laser type | Laser spot compression |
Laser power | 5W |
Laser wavelength | 455nm |
Focusing mode | One-button autofocus/manual focus |
Laser spot size | <0.5mm |
Laser module life | About 10000h at 27℃ ring temperature |
Carving speed | <600mm/s |
motherboard | XJ custom motherboard, FR4 double sided glass fiber |
Data transmission | USB to serial cable transmission, Bluetooth 5.0 wireless transmission |
Operating software | XJ software platform (computer application + mobile App) |
Supported formats | 1. XJ format：XJ 2. Picture format：JPEG/BMP/PNG/JPG/GIF 3. Vector format：DXF/PLT/HPGL |
Support system | Software platform(Windows OS、Mac OS、Android、IOS) |
motor | Stepper motor |
Motor drive | Stepper motor drive chip |
processor | 32-bit high-speed MCU |
Engraving size (mm) | 80*80mm |
Electric power of complete machine | <60W |
Engraving accuracy | 0.05mm |
Heat dissipation mode | Air cooling |
Product size | 22*13*22cm |
Product weight | 1.9KG |
Safety protection function | Dip protection |
Package size | 35*25*14cm |
Packing weight | 2.95KG |
