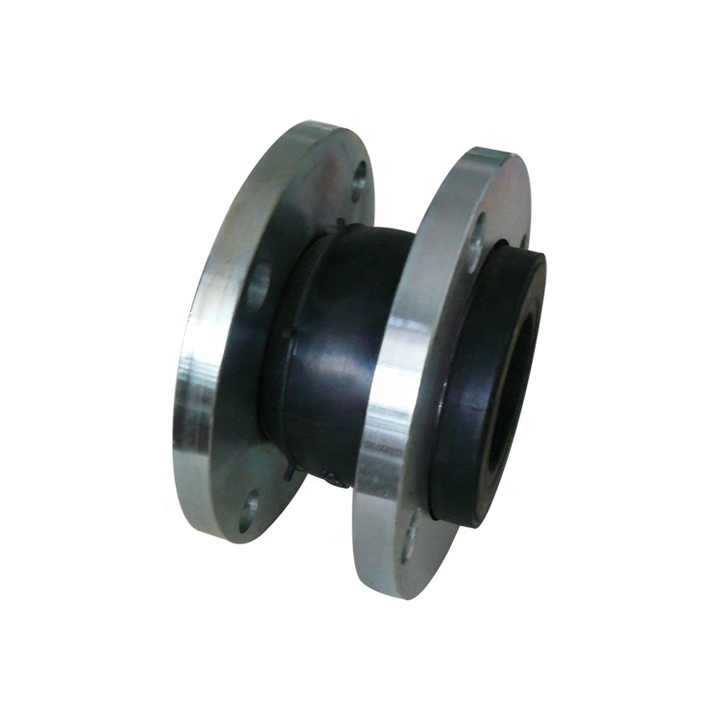

Carbon Steel Universal Flanged Rubber Single Ball Sphere Flexible Expansion Joint
US$ 25.00 - 65.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2006
Factory Size:
30,000-50,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
JIS 10K EPDM or NBR Rubber Seal Flexible Single Arch Ball Rubber Expansion Joint for PipeUS$ 25.00 - 65.00MOQ: 50 Pieces -
Double Balls Screwed Thread End Rubber Expansion JointUS$ 25.00 - 65.00MOQ: 50 Pieces
-
DN200 Rubber Single Sphere Expansion JointUS$ 25.00 - 65.00MOQ: 50 Pieces
-
Stainless Steel 304 Flange Metallic Bellows Expansion Telescopic JointUS$ 25.00 - 65.00MOQ: 50 Pieces
-
Flange Type Flexible Rubber Expansion Joint With Tie RodsUS$ 25.00 - 65.00MOQ: 50 Pieces
Products Description
Expansion joints are devices containing a bellows membrane that are designed to absorb dimensional changes, such as those that occur due to thermal expansion or contraction of a pipeline, duct or vessel.
Stainless steel 304 Rubber Expansion Joint For Pipe Line has been widely used in the chemical industry, oil industry,construction, water supply drainage, fire production industry, etc.
Rubber Materials: NR, NBR, CR, EPDM, PTFE, etc. Flange Materials: 304 stainless steel, Inconel 625, carbon steel, PVC.
Standard: GB, ISO, DIN, ANSI, BS, JIS, as well as customers'special demand.
Rubber Materials: NR, NBR, CR, EPDM, PTFE, etc. Flange Materials: 304 stainless steel, Inconel 625, carbon steel, PVC.
Standard: GB, ISO, DIN, ANSI, BS, JIS, as well as customers'special demand.
Specification:
An expansion joint or movement joint is an assembly designed to safely absorb the heat-induced expansion and contraction of construction materials, to absorb vibration, to hold parts together, or to allow movement due to ground settlement or earthquakes.
Installation
1. it is strictly prohibited to install over the displacement limit.
2. The mounting bolts should be symmetrical and gradually tightened to prevent partial leakage.
3. Working pressure above 1.6.MPa, the mounting bolts should have elastic pressure pads to prevent the bolts from loosening during operation.
4. When installing vertically, the joint pipe should have vertical force support at both ends, and the anti-pull device can be adopted to prevent the work from being pulled off.
5. The rubber joint installation site should be away from the heat source. Ozone area. It is strictly forbidden to expose the radiation and use media that does not meet the requirements of this product.
Specification for flexible rubber joint
