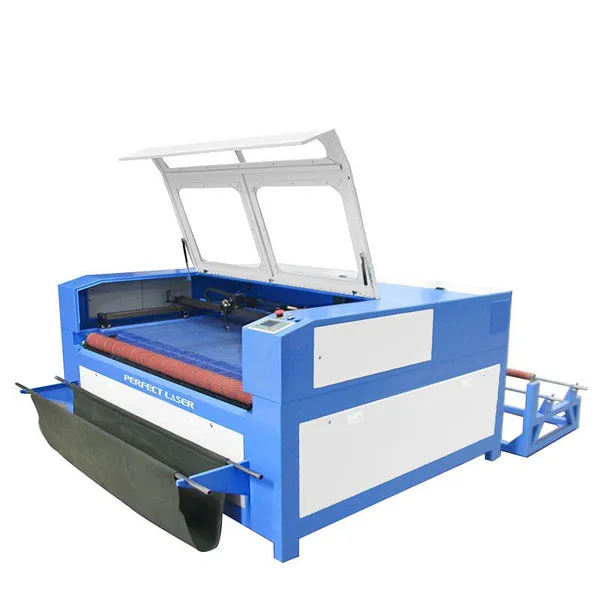

Help Center130W-150W 1600X1000MM CO2 Laser Engraver Cutter With Auto Feeding for Roll Fabric
Related Products
-
130W-150W 1600X1000MM CO2 Laser Engraver for Wood Leather Acrylic Engraving CuttingUS$ 4300 - 4800MOQ: 1 Unit -
400W 1300X2500MM CO2 Laser Engraver for Wood Leather Acrylic Engraving CuttingUS$ 8900 - 9400MOQ: 1 Unit
-
130W-150W 1300X1800MM CO2 Laser Engraver Cutter With Auto Feeding for Roll FabricUS$ 7200 - 7800MOQ: 1 Unit
-
40W 300X200MM Mini Desktop CO2 Laser Engraver for Rubber Stamp and Acrylic CuttingUS$ 650 - 690MOQ: 1 Unit
-
50W 600X400MM Small CO2 Laser Engraver for Wood Leather Acrylic Engraving CuttingUS$ 1200 - 1700MOQ: 1 Unit
Features:
1. Equip with Caterpillar working table and auto feeding system, which can do continuous feeding and precision cutting.
2. Continuous stitching function. The uncompleted cutting graphic on one material will be automatically deferred to the next material. It can cut inner parts and frame parts for one graphic at the same time by just feeding once. Intelligent typesetting system get the most effective and rational use of materials.
3. Continuous cutting function when power off. Cutting device can automatically memory cutting status when power off, machine can continue cutting after power on.
4. Equip with mini air compressor and air pump
5. Equip with Imported focus lens and mirrors, fine laser beam, strong laser power, avoiding laser power attenuation when cutting caused by optical transmission problems using traditional laser equipment.
6. Adopt strong cooling industrial-grade equipment to ensure a long operating cycle when the water temperature is always kept cold state, the laser tube light stability, and to ensure that the laser tube life;
7. Adopt Taiwan Hiwin precision linear square rails, to ensure the smooth operation of the laser head, high-speed, no jitter, having slit small, fast, high accuracy;
8. Easy operate, more humane design, users are more likely to start with;
9. Increase the added value of products. Laser cutting is not required pattern cloth version, you can freely copy crop patterns, especially for revision requirements. In the process, a laser cutting, drilling and carving and other innovative technology integration which greatly improve the value-added products.
10. Improve production efficiency. You can roll the entire fabric automatic cutting, automatic cutting, on the basis of the production process at one go. One end of a single laser cutting machine out of the material to meet the five skilled workers sewing production.
11. Save the provincial labor, and material. Because the laser is intelligent analog layout, simple, requiring workers to operate only need to know the computer. When cutting leather for leather car seat covers also avoids bad dermis, thus improving the cutting quality, reducing leather waste.
Technical Data:
Model |
PEDK-160100S One head |
|||
Processing table size |
1600*1000 |
|||
Equip Rolling and Automatic Feeding System | ||||
Laser model |
Sealed CO2 laser tube |
|||
Processing table |
Caterpillar work platform |
|||
Laser power |
130-150W RECI W6 |
|||
Machine power |
3KW |
|||
Cutting Speed |
0-72000MM/Min |
|||
Interface port |
USB ports |
|||
Cutting thickness |
0.3-20mm |
|||
Work humidity |
5-95% No Condensation |
|||
Controlling Mode |
CNC Professional Control System |
|||
Cooling Mode |
Water Cooling and Protect System |
|||
Working Voltage |
AC220V±10% 50HZ |
|||
Assist Equipment |
CW-5000 Water Chiller with temperature protection function, turbine dust exhauster, oil-water separator, silent air compressor |
|||
Power Controlling Mode |
Laser Energy Combining Movement Control System |
|||
Control Software |
Original Perfect Laser’s Engraving & Cutting Software |
|||
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
|||
