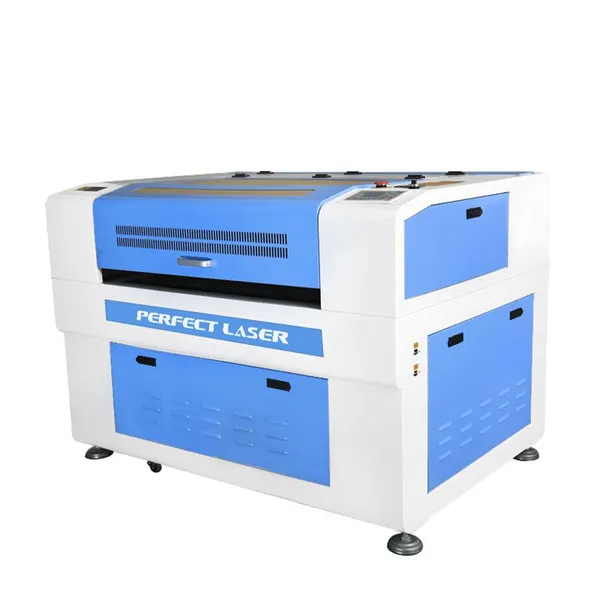

Help Center90W 900X600MM Small CO2 Laser Engraver for Wood Leather Acrylic Engraving Cutting
Related Products
-
130W-150W 1300X900MM CO2 Laser Engraver for Wood Leather Acrylic Engraving CuttingUS$ 3700 - 4200MOQ: 1 Unit -
130W-150W 1600X1000MM CO2 Laser Engraver Cutter With Auto Feeding for Roll FabricUS$ 5800 - 6300MOQ: 1 Unit
-
130W-150W 1600X1000MM CO2 Laser Engraver for Wood Leather Acrylic Engraving CuttingUS$ 4300 - 4800MOQ: 1 Unit
-
400W 1300X2500MM CO2 Laser Engraver for Wood Leather Acrylic Engraving CuttingUS$ 8900 - 9400MOQ: 1 Unit
-
130W-150W 1300X1800MM CO2 Laser Engraver Cutter With Auto Feeding for Roll FabricUS$ 7200 - 7800MOQ: 1 Unit
Features:
1. The water cooling and alarm protection system adopts the CW-3000 chiller temperature display to avoid over-combustion and protect the power over-water circulation.
2. High cutting accuracy, no focal and yellow edges, the laser cutting and engraving machine is equip with high precision metal rails and stepper motors, and with honeycomb platform, perfect engraving 1X1 mm letters, to meet the needs of highly accurate work.
3. LCD touch screen, CO2 non-metallic laser cutting and engraving machine supports USB interface and DSP offline control system, external USB data cable or U disk, support BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG , DXF and other file formats.
4. CO2 non-metal laser engraving plastic machine can be equipped with American imports of focusing lens and lens, China's Leadshine stepper motor, Japan's imported servo motor, a variety of configuration and diverse, there is always one to meet your needs.
5. The CO2 non-metal laser cutting machine independently developed by Perfect Laser can set parameters, enable envelope cutting, set the engraving area, and perform frame cutting.
Technical Data:
Model |
PEDK-9060 Laser Cutting And Engraving Machine |
Laser Power |
90-100w |
Engraving Area |
900×600mm |
Engraving Speed |
0-60000mm/min |
Cutting Speed |
0-10000mm/min |
Repeating Location Accuracy |
±0.0125mm |
Working Voltage |
220V ±10% 50HZ |
Machine Power |
900w |
Controlling System |
CNC professional controlling system |
Supporting Graphics Formats |
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF |
Cooling Mode |
CW-3000 Water Chiller with protection function |
Auxiliary Devices |
Exhaust fan & exhaust pipe |
Cutting Platform |
Professional honeycomb / strip work table |
Power Control Mode |
Laser power and moving system cooperate |
Control Software |
Original Perfect Laser laser engraving and cutting software |
Machine Size |
1400*960*1150mm |
