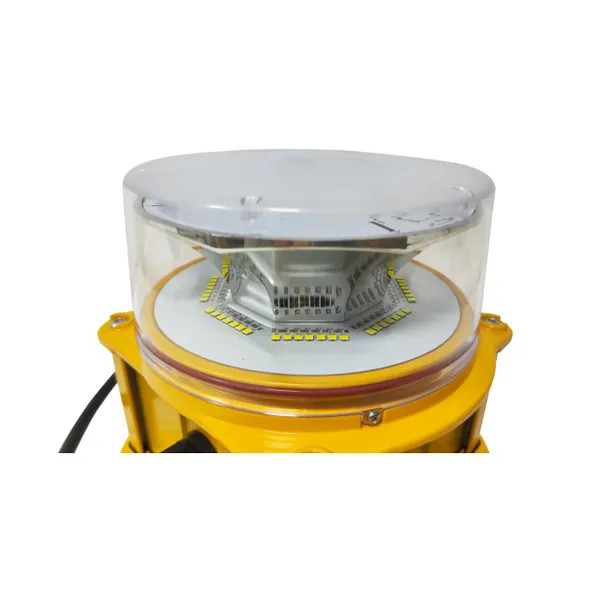

Help CenterQT2AS L-865/864 Single Medium Intensity Obstruction Light (Type A&B)
Related Products
-
TY50S LED Single Low Intensity Solar Powered Obstruction Light (Type C)NegotiableMOQ: 1 Piece -
QT2H L-856 Single High Intensity Obstruction Light (Type A)NegotiableMOQ: 1 Piece
-
TY2H L856 LED High Intensity Solar Obstruction Light(Type A)NegotiableMOQ: 1 Piece
-
FB10 Explosion Proof LED Obstruction Light(Type A)NegotiableMOQ: 1 Piece
-
FB20 Explosion Proof LED Obstruction Light(Type B)NegotiableMOQ: 1 Piece
Description:
L865/864 is a dual red/white LED medium intensity beacon and illuminates white light 20,000 candelas at daytime and red light 2,000 candelas at night. It is compliant to ICAO medium intensity type A&B. This cutting-edge light is the perfect solution for marking structures such as towers, cranes, bridges, and other tall obstacles to ensure they are visible to aircraft during both day and night.
This light utilizes advanced LED technology to provide a bright and highly visible light output, meeting the requirements for medium intensity type A lighting as specified by the International Civil Aviation Organization (ICAO). It is also built to withstand the elements, our obstruction light features a rugged enclosure that is resistant to corrosion, UV radiation, and extreme temperatures, ensuring reliable performance in all weather conditions. With energy efficient LED technology, our obstruction light consumes minimal power, resulting in lower electricity costs and reduced environmental impact compared to traditional lighting solution.
The durable construction and efficient LED technology ensure a long operational lifespan,reducing the need for frequent maintenance and replacement.
It can work independently with self-controlled configurations (e.g, built- in photocell, alarm relay, GPS synchronization) as an
economical solution.

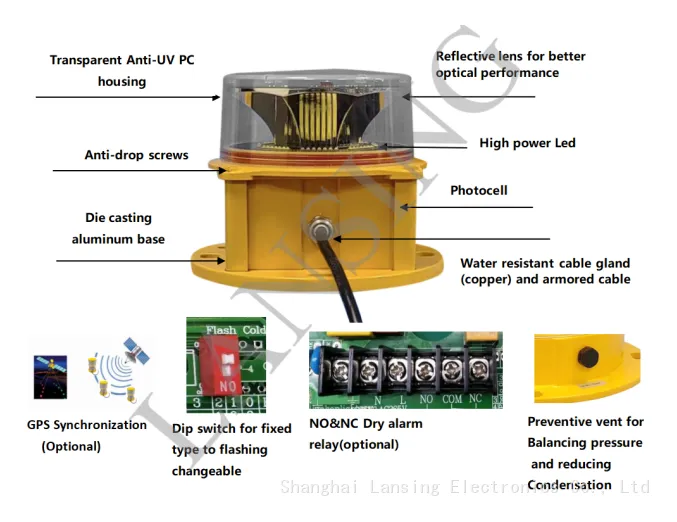

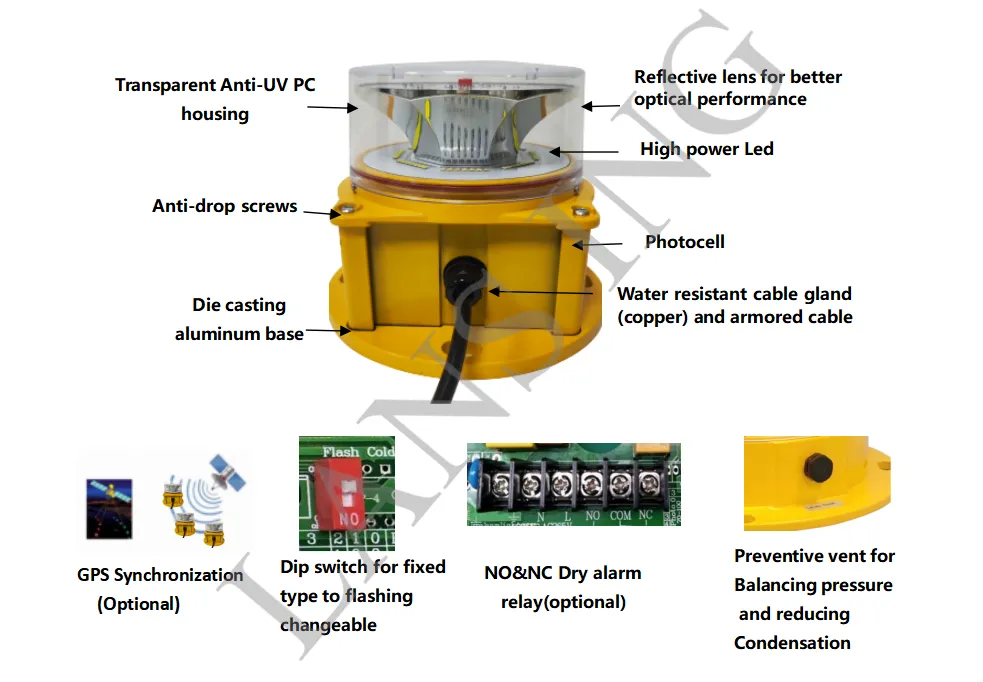

Features& Benefits:
• Based on Led Technologies with low consumption
• Modular design, easy access to all components
• White flashing 20,000cd at day and auto transfer to red flashing 2,000cd at night
• Lens made from durable, UV-stabilized LEXAN polycarbonate
• Aluminum base with powder painted, corrosion-resistant
• Fresnel optical lens provides excellent light distribution
• Internal LED driver and constant current regulator make the light illuminate steadily
• Aluminum heatsink provides excellent thermal dissipation performance
• Protective vent for balancing pressure and reduce condensation
• Stainless steel safety rope protects light head from fall-off during maintenance
• Photocell option for automatic activation at night
• No regular maintenance
• Uses 96% less power than an incandescent light
• Built-in 6KA surge protector module to protect the light from induction lightning strike
• Excellent shock and vibration resistant
• No RF Radiations, EMC Compliant
• Protection: Polarity reverse, over-voltage and short-circuit
• Optional GPS synchronization
• Both NO and NC dry alarm contacts are available, and it will give an alarm in case of power and light failure(optional).
• Simpler cable installation
• Flash rate adjustable, steady/20-60FPM

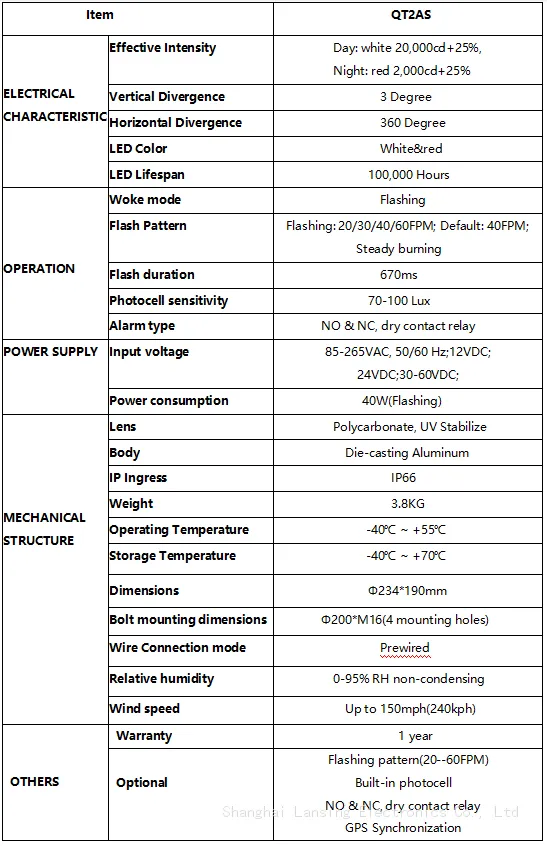

Specifications
Advantages
Mounting dimension(mm)
