Name: 220A Diesel Welding Generator Belon Power 2kw Diesel Welder Generator
SKU: 172791670
Availability: InStock

ALL CATEGORIES

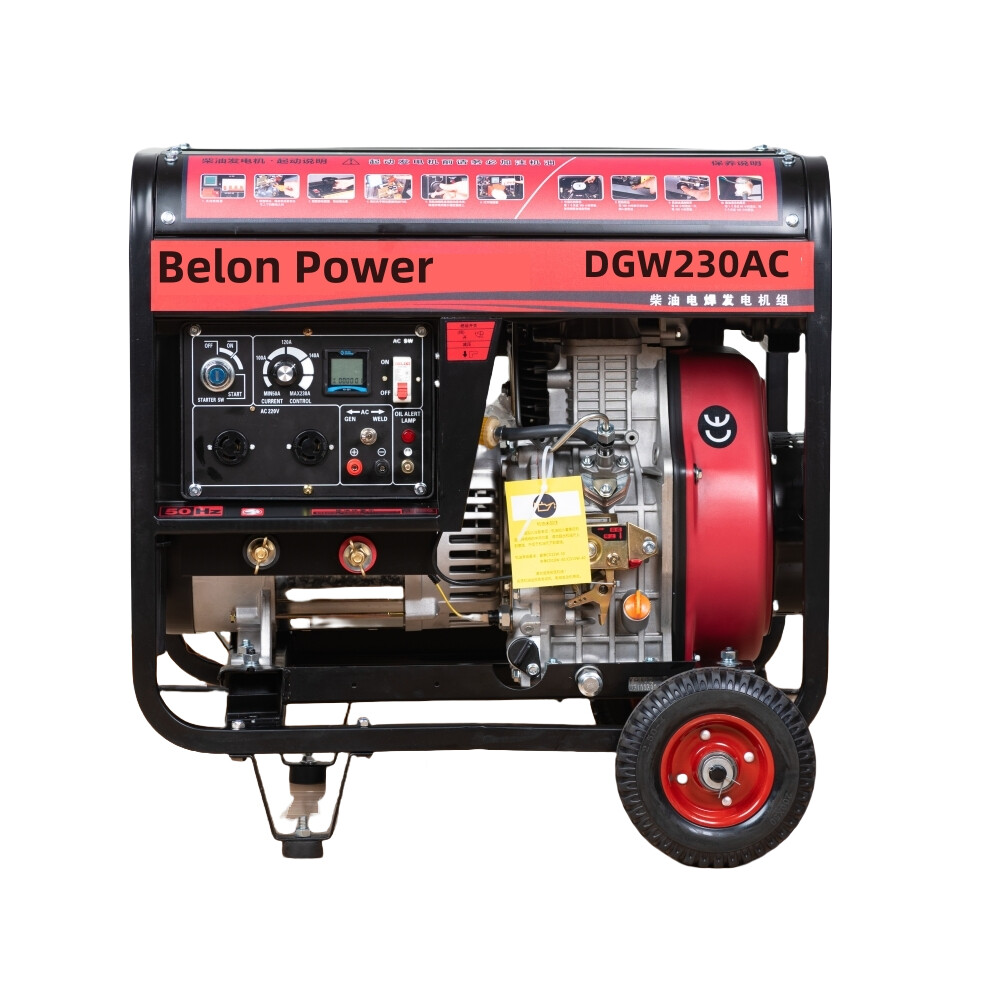

220A Diesel Welding Generator Belon Power 2kw Diesel Welder Generator

Send Inquiry to This Supplier

Model	DGW230AC
Frequency[Hz]	50 60
Voltage[V]	220,230,240,110/220,115/230,120/240
Output power[Kva]	2.0 2.2
No-load Welding Voltage[V]	50~65
Welding Current[A]	200
Working Welding Voltage[V]	25~30
Current Adjustment Range[A]	70 ~ 220
Continuous Welding Load Rate	60%
Phase	Single phase
Excitation Method	Brush self-excitation
Power Factor Φ	1
Insulation Class	F
Fuel Tank Capacity[L]	12.5
Engine Model	192FA
Start Method	Electric start
Engine Type	single cylinder、4 stroke、air-cooled、vertical
Bore*Stroke[mm]	92 * 75
Displacement[L]	0.499
Compression Ratio	19.5：1
Speed	3000 3600
Power[Kw]	7.5 8.2
Drive Way	Crankshaft
Oil Capacity[L]	1.65
Fuel No.	Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter.
Oil No.	SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil)
Size [mm] (LWH)	700485600
Packing Size[mm] (LWH)	710500620
Net Weight/Gross Weight[Kg]	123/126

220A Diesel Welding Generator Belon Power 2kw Diesel Welder Generator

Product Details
