Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 6kw Dual Voltage Silent Diesel Generator 6kva Canpoy Diesel Generator

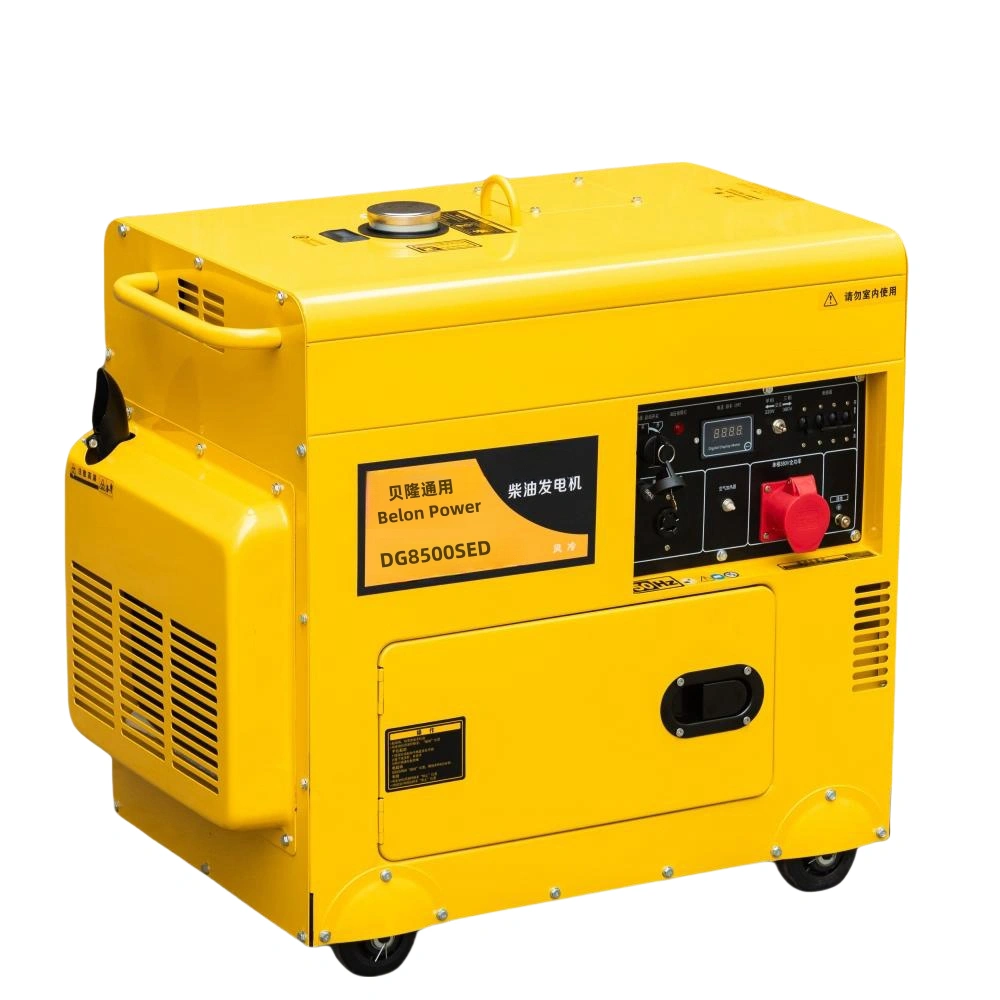

6kw Dual Voltage Silent Diesel Generator 6kva Canpoy Diesel Generator
US$ 670 - 680
MOQ: 20 Sets
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2017
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
7kW Dual Voltage Diesel Generator With 1100F Engine & 100% Copper AlternatorUS$ 980 - 1000MOQ: 20 Sets -
6kw Dual Voltage Diesel Generator 220/380V Dual PowerUS$ 550 - 580MOQ: 10 Sets
-
15kw Silent Marine Diesel Generator Seawater-cooled Marine GeneratorUS$ 11000 - 11500MOQ: 10 Sets
-
6kw Dual Power Open Diesel Generator Single/three Phase in OneUS$ 550 - 580MOQ: 10 Sets
-
6kw Marine Silent Diesel GeneratorUS$ 19000 - 19200MOQ: 5 Sets
| Model | DG8500SED |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220.230.240.110/220.115/230.120/240.230/380.230/400.240/415 |
| Rated Power( KW) | Single phase5.0/Three phase 6 Single phase 5.5/Three phase7.0 |
| Max. Power(KW) | Single phase 5.5/Three phase 6.5 Single phase 6.0/Three phase 7.5 |
| Rated Output Current（A ) | Single phase22/Three phase8.6 Single phase 24/Three phasea 10 |
| DC Output | 12V 8.3A |
| Phase | Single phase/Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 192FE |
| Start Method | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 92 * 75 |
| Displacement | 0.499 |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 7.5 8.2 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤280 ≤290 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS,Remote Control, Intelligent digital display panel |
| Size [mm] (L*W*H) | 910*525*780 |
| Packing Size [mm] (L*W*H) | 940*540*900 |
| Net Weight/Gross Weight[Kg] | 160/167 |
