4G/RS485/LoRa/WiFi/NB Wireless Irradiance Sensor

4G/RS485/LoRa/WiFi/NB Wireless Irradiance Sensor

DAQ-GP-LR4G wireless irradiance sensor terminal is a wireless solar radiation measurement product launched by Shanghai Data Acquisition IOT Technology Co., LTD. The sensor uses the photoelectric principle and can be used to measure solar radiation in the spectral range of 0.3~3μm. The radiation sensor adopts high-precision sensor, wide spectrum absorption, high absorption in the full spectrum range, and good stability; At the same time, the induction element is installed outside the dustproof cover with a light transmittance of up to 95%. The dustproof cover adopts special treatment to reduce dust adsorption, effectively prevent the interference of environmental factors on the internal components, and can accurately measure the amount of solar radiation.

DAQ-GP-LR4G can directly read the current solar radiation value, and the connection mode is simple. Small and beautiful appearance, occupy a small installation space. The products are widely used in solar energy utilization, meteorology, agriculture, aging of building materials and air pollution and other departments to measure solar radiation energy.

By default, the sensor terminal supports 4G/WiFi/LoRa and other communication methods, and supports MQTT, HTTP and other communication methods, which can overcome the wireless communication block caused by the special environment on the site, greatly simplifying the field deployment time and reducing construction costs.

We solemnly promise that:

 What you buy is not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )

 This product, the site only ordinary workers connected to electricity installation! No debugging!

 We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.

Free Internet of Things solution consulting services!

Collection Type: solar radiation

Range: 0~2000W/m^2, other ranges can be customized

Wavelength Range: 400-1100nm

Resolution: 1 W/m^2

Accuracy: ±5%

Collection Frequency: 1 second to 24 hours. Remote configuration is supported

Power Supply Mode：7V~30V DC

Power issipation：0.06W

Wireless Transmission Mode: 4G / NB-IOT / LoRa / WiFi

Communication Protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized

Data Forwarding: any public network server

Number of Server Centers: up to simultaneous data reporting to 7 cloud servers.

Heartbeat Packet: support custom heartbeat packet, can be set to signal intensity.

Registration Package: support custom registration package, can be set to IMEI code.

Positioning: Support LBS base station positioning to facilitate the query of device location.

Material: PC plastic (enclosure)

Main Protection Level: IP65，Work in dust, rain and snow environments

Main Body Size：200mm×94mm×60mm

Main Mounting Method: wall hanging or screw fastening

Ambient Temperature: -25°C~60°C

Humidity: 0%~100%RH

v Simple installation, fast deployment, help the Internet of things project quickly landing.

v Using waterproof breathable film, effectively prevent dust from entering, good breathability

v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.

v Support any private Internet of Things cloud platform and configuration software, and provide data protocol docking.

v Support Ali cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms.

v Non-invasive measurement, which does not affect the normal operation of the equipment.

v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance.

For UDP / TCP / MQTT / HTTP and other push methods, users should provide the public network IP (or domain name) address and port number of the cloud server to receive the data.

Example of JSON format:

{"light radiation":731,"ID":"860344048491162"}

Message analysis:

{

"light radiation": 731, //Light radiation, W/m^2

"ID": "860344048491162" // Device ID

}

If you need to customize other communication protocols, you can contact the business personnel to communicate them.

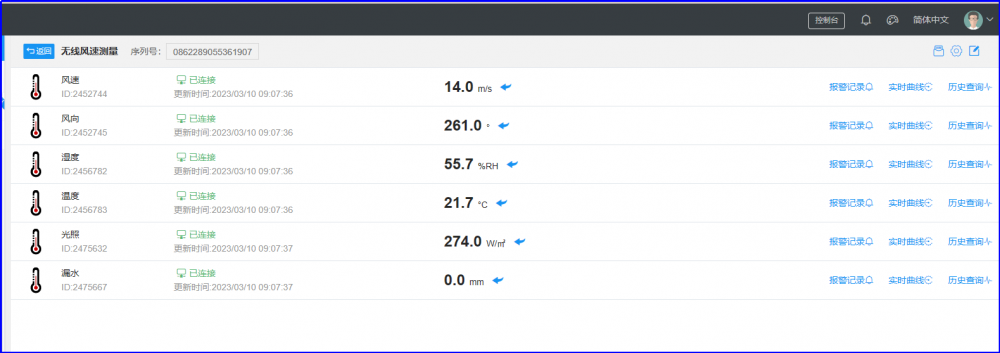

The product is connected to our designated industrial Internet of Things platform by default, and the platform interface is as follows:

Computer-side browser interface
