Intelligent Instrument Identification Software

1. Instructions

1.1 When using for the first time, registration is required, and a 45-day trial is available. For a permanent authorization code, please contact the service provider.

1.2 Supports recognition of various types of digital instruments, and can recognize some mechanical digital instruments.

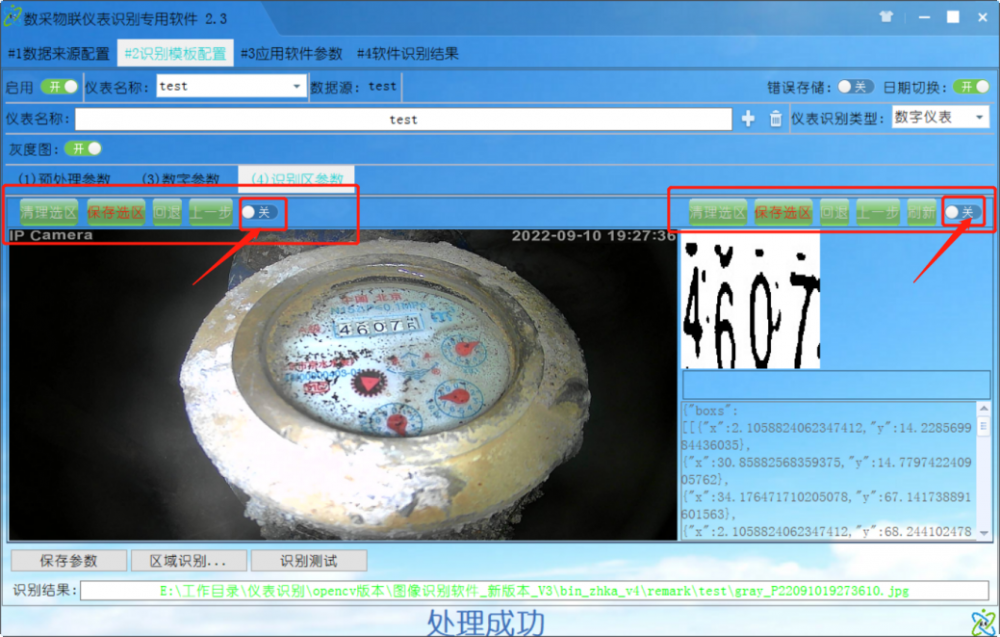

1.3 The image preprocessing parameters can be configured to process the image to be recognized. To improve recognition speed, the area to be recognized must be framed first. It supports framing of inclined areas and sub-recognition areas. The latest version has added automatic recognition of the instrument area. This function requires prior collection of a certain number of images, labeling and training of the instrument area. After training, put the model into the specified directory, and the software will automatically call and recognize it.

1.4 The main recognition program is CDialRecService.exe.

1.5 This software is developed with vs2015 and requires the VS2015 runtime environment to be installed.

1.6 The data sources of this software support local directory/FTP/HTTP/CGI.

1.7 The CGI mode can automatically connect to the camera through configuration to capture pictures regularly and store them in the specified directory.

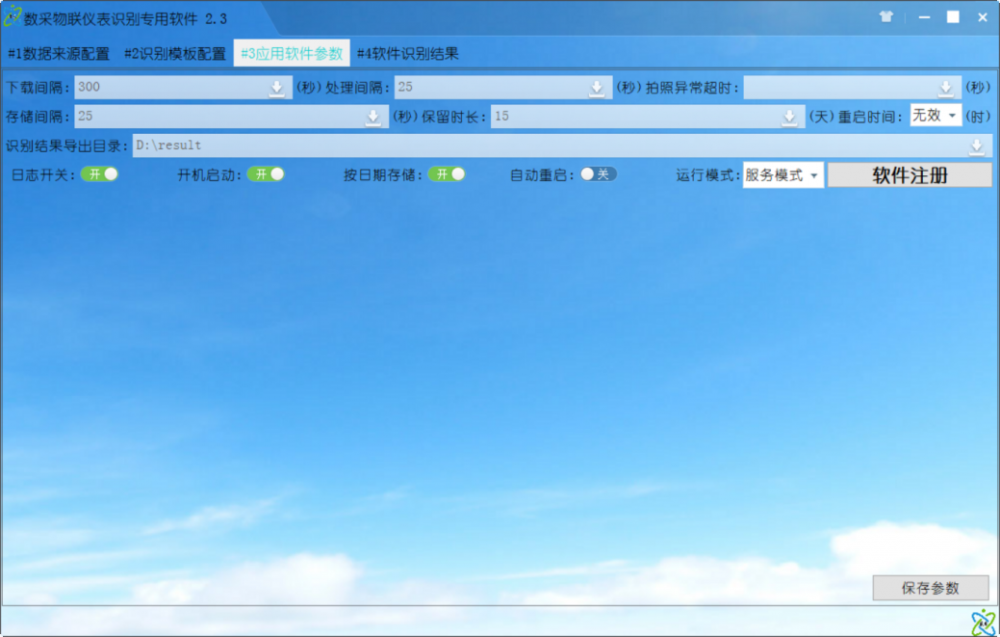

1.8 After adjusting the recognition parameters in the configuration interface, the software takes effect without restarting.

1.9 The software supports Modbus service and client data publishing.

1.10 The software supports inserting data into the MySQL database.

1.11 The software provides local recognition result query and regular export functions.

2. Usage Instructions

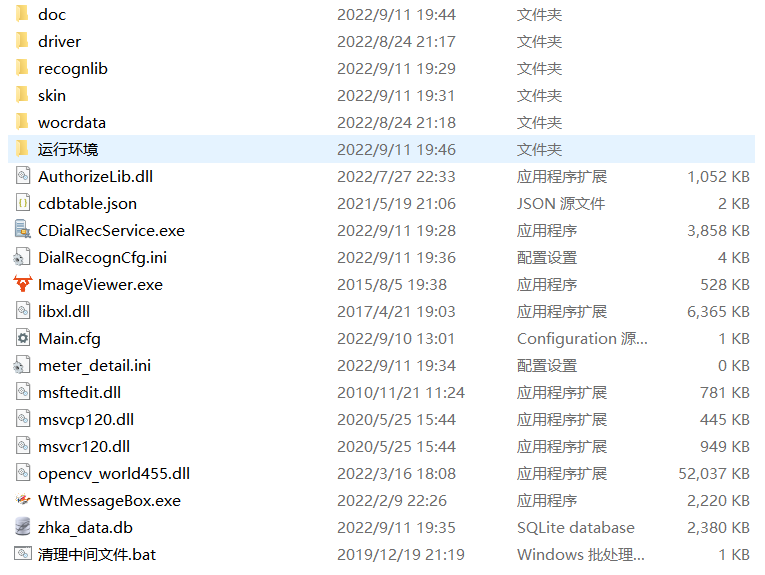

2.1 Software Installation

This software is a pure green software and does not need to be installed. It can be run by copying it to any position of the system.
