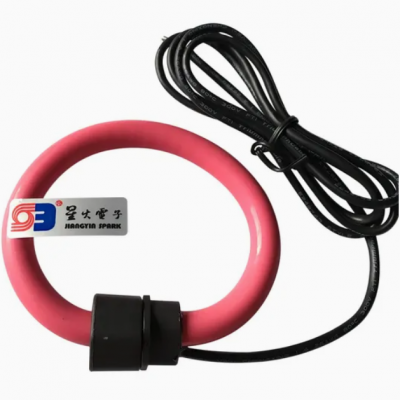

CE Close Flexible Rogowski Coil for Current Sensor 0.333V Output Customzied Acceptable

Split Core Flexible Rogowski Coil with high frequency

Split Rogowski Coil current sensors are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.
A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoided

Key specifications

Input current range:0-10000A
Output :Flexible Rogowski coils 0.333Vac,100mV/per 1000A,  0-5Vac
Bandwidth :1Hz-1MHz
Accuracy :≤±1%
Response time :<10ms
Auxiliary power supply :6-12VDC
Coil  length :≤2m
Status indicator :LED light
Storage  temperature range :-40ºC-70ºC
Operating temperature range :-20ºC-55ºC
Storage humidity range :10%-90% without dew
Operating humidity range :10%-90% without dew
