UL Open Type CT Current Transformer 5A/2.5mA Energy Management
US$ 1.9 - 4
MOQ: 10 Pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL Flexible Toroidal Split Core Current Transformer 5A/50mA Factory SaleUS$ 1.9 - 4MOQ: 10 Pieces -
UL Open Loop Current Transformer for Low Voltage 30A/0.33V Sensor ClampUS$ 1.9 - 4MOQ: 10 Pieces
-
UL Split Core Current Transformer 120A/40mA Diameter 16mmUS$ 2 - 5MOQ: 5 Pieces
-
CE Split Core Current Transformer for Ammeter 100A/50mA Clip on ClampUS$ 2 - 5MOQ: 5 Pieces
-
CE Split Core Electronic Current Transformer 50A/0.3V Open Type CTsUS$ 2 - 5MOQ: 5 Pieces
Phase
Single
Product Description

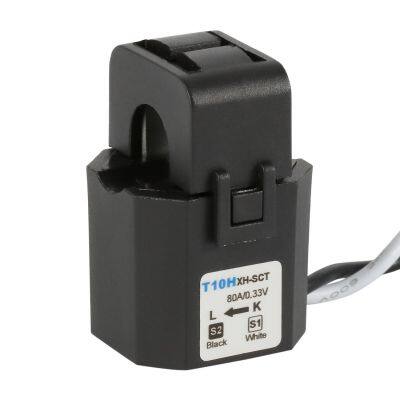

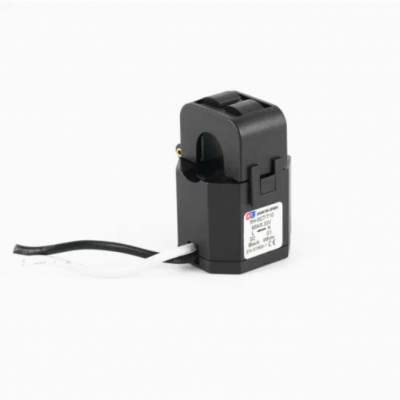

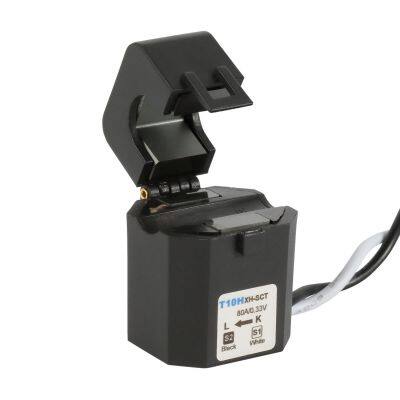

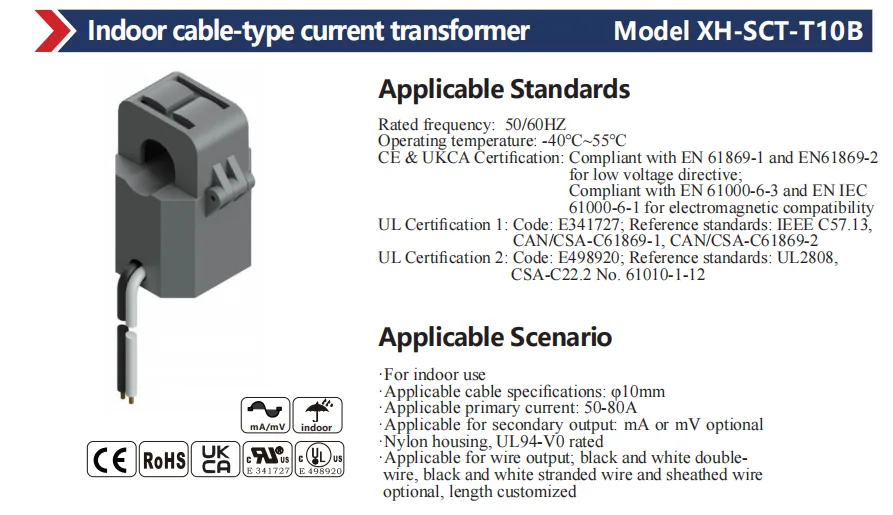

Split-Core AC Current Transformer current Sensor XH- SCT-T10(B)
φ10mm Opening With 5 To 80 Amp Rating
Description:
Jiangyin Spark XH-SCT-T10 Series split-core current senses AC current from 5 to 80 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
|
SPECIFICATIONS : 1,Rated Voltage:0.66KV 2,Insulation Voltage:3500V 3,Rated Frequency:50HZ/60HZ 4,Operating Temperature:-20ºCto 70ºC 5,Weight:70g 6,Certificates:UL ,CE ,ROHS |
FEATURES: 1,Small cost 2,Split core design ,Easier installation 3 Build diode ,no high voltage danager 4,Good linearity at very low current |

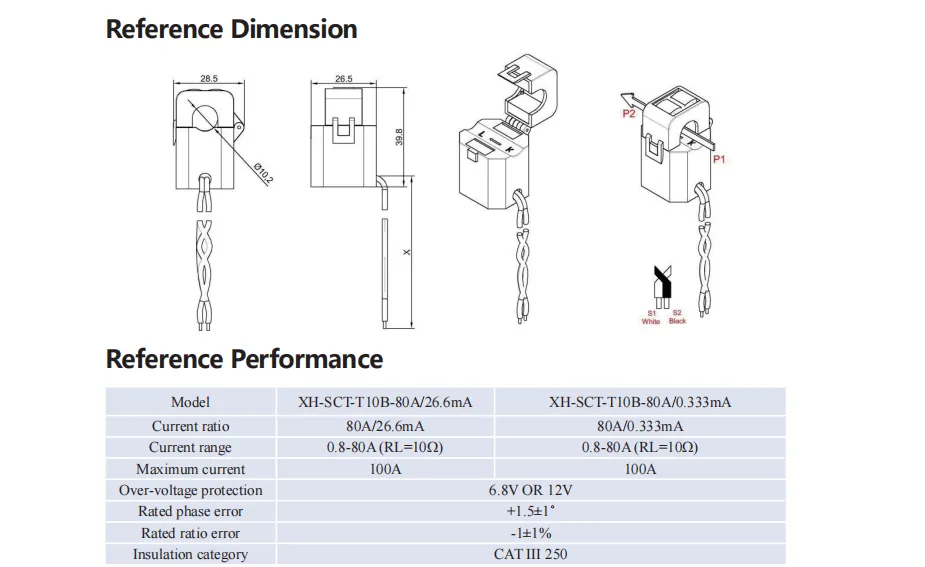

| Model | Input(A) | Max currnet(A) | Output |
| XH-SCT-T10A | 0.2-80AAC | 100AAC |
mA/0.333VAC /0-3VAC |
| XH-SCT-T10B |
