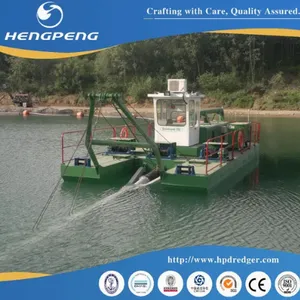

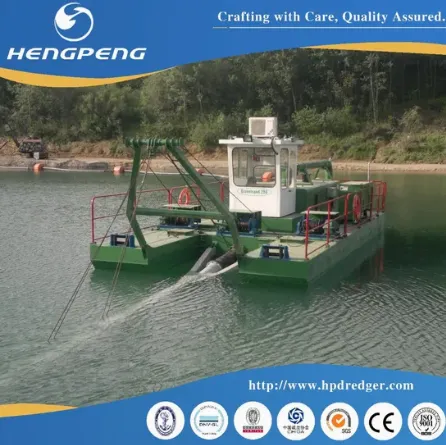

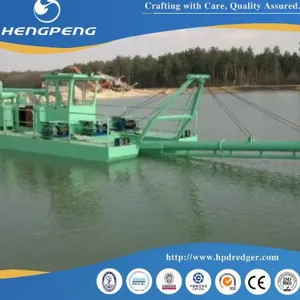

1400m3/H Jsd3010 Jet Suction Dredger With Pump for Sea & River Construction *HP
US$ 75000 - 105000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
HengPeng
Place of Origin:
China
Model Number:
HP-JSD3010
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
1 days
Related Products
-
Powerful 900m3/H Mini Suction Dredger Featuring Weichai EngineUS$ 65000 - 95000MOQ: 1 Unit -
*Mini 60m3/H Jet Suction Dredger /Good Quality Mini Dredger/Smallest Sand Suction Dredger PumpUS$ 9500 - 12000MOQ: 1 Unit
-
Efficient Jsd5014 Jet Suction Dredger for Large ProjectsUS$ 220000 - 250000MOQ: 1 Unit
-
High-Performance Large 4000m3/H Jet Suction Dredger Jsd5014 for Efficient Excavation*HPUS$ 220000 - 250000MOQ: 1 Unit
-
Cutter Suction Dredger Stock New 4000m3/H CSD450 for Canal Dredging Sucking ConstructionUS$ 650000 - 780000MOQ: 1 Ton
Brand Name
HengPeng
Place of Origin
China
Model Number
HP-JSD3010
Type
Other, Jet suction type
Certification
CCS BV ISO9001 ZC DNV
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 Months Free Warranty, Free Repair.
Power Type
Diesel
Condition
New
Dredging Depth
10
Basic Info.
Model NO.
HP-JSD3010
Condition
New
Warranty
1 Year
After-sales Service
Lifetime Technical Support
Certification
CE/CCS/Zc/ISO9001
Engine
Weichai/Cumins/Jichai
Mining Object
Sand, Mud, Surry, Sludge, Salt, Iron
Usage
River Sand/Mud Dredging
Discharge Distance
1000m
Dredging Depth
10m
Water Flow Capacity
1400m3/H
Transport Package
in Containers
Specification
HP-JSD3010
Trademark
HengPeng Shipyard
Origin
Qingzhou City, Shandong Province, China
HS Code
89051000
Production Capacity
100sets
Product Description
1400m3/h SOTCK NEW HP-JSD3010 JET SUCTION DREDGER HENG PENG SHIPYARD
We set up Sand Mine Equipment Development Research Institute in 2004, and established good business relationship with the national scientific research institute. At present, there are 5 senior engineers and 12 professional R&D staff members in our company. They can rapidly work out reasonable and feasible plans according to customer requirements. All parts are dimensioned to allow the Jet suction dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear, and hooks at the bottom. Further salient features of the dredger are the dredger is powered by a Marine engine.
The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations.
The hull steel plate used is CCSB (shipbuilding steel plate ).
Main Parameter information:
| Jet Suction Dredger Specs HP-JSD3010 | ||
| Model | Specifications | Remark |
| Overall Length | 24m | |
| Side Pontoon Length | 16m | |
| Breadth | 5.2m | |
| Main engine | kw | Weichai/Cumins/JiChai |
| Generator | kw | Weichai |
| Pump | WN | Shijiazhuang |
| Suction dia | 300mm | |
| Discharge dia | 250mm | |
| Water flow capacity | 1400m3/h | |
| Discharge distance | 1000m | |
| Working weight | 25 Ton | |
| Dredging depth | 1~10m | |
| Operation | Electric System | |
| Steel plate | Bottom:8mm; Side:6mm; Deck:4mm | |
| Transport Package | in Containers | |
| Waranty | 1 Year | |
| Delivery Time | 20-30 Days | |
1.The ship is suitable for construction in closed seas and inland rivers and lakes.
2.The working principle is to use a strong current to make the sediment float and let the sediment pump suck it away through the pipeline.
3.Fan-shaped mud suction operation in front of the bridge, flexible and convenient in-depth and fan operation.
4. Designed in accordance with China Ship Inspection CCS Standard, ZC Standard, and produced in accordance with enterprise standards.
5. The engine and pump are located in the middle main engine compartment, and the side hulls on both sides serve as fuel tanks, ballast tanks, and storage bins. Four ballast tanks are located at the front and rear ends of the side appendage.
6.The whole ship can be disassembled, transported by car or container.
7. Large and bright operating room with air-conditioning and adjustable seats, comfortable working environment.
8. One driver operates all monitoring instruments, light control buttons, and action command buttons.
2.The working principle is to use a strong current to make the sediment float and let the sediment pump suck it away through the pipeline.
3.Fan-shaped mud suction operation in front of the bridge, flexible and convenient in-depth and fan operation.
4. Designed in accordance with China Ship Inspection CCS Standard, ZC Standard, and produced in accordance with enterprise standards.
5. The engine and pump are located in the middle main engine compartment, and the side hulls on both sides serve as fuel tanks, ballast tanks, and storage bins. Four ballast tanks are located at the front and rear ends of the side appendage.
6.The whole ship can be disassembled, transported by car or container.
7. Large and bright operating room with air-conditioning and adjustable seats, comfortable working environment.
8. One driver operates all monitoring instruments, light control buttons, and action command buttons.
HP-JSD3010 Jet Suction Dredger could been transport In container.
A: HengPeng is a leading dredger manufacturer in China,
Q2, What are the services the HengPeng company is providing?
A: Free dredger consultation, drawing design, customization, on-site visits, free assembly,
training, operation testing, and lifetime technical assistance.
Q3, What are the delivery terms?
A: HengPeng Dredger delivery can be in containers or in bulk depends on the dredger size. HengPeng has in-stock dredgers,
and constantly storing dredger parts, pipes, pontoons, to shorten the delivery period for special needs.
Q4, What about the payment terms?
A: Payment can be paid in T/T and L/C, payment terms and financial support can be discussed.
Q5, What are the warranty terms?
A: HengPeng provides a standard 1-year warranty, free problem solving with lifetime technical assistance
Q6, Why you say HengPeng is your trustworthy dredger manufacturer?
A: HengPeng is a trustworthy dredger manufacturer because we have many years' manufacturer workmanship, manufactured for many Fortune 500 companies globally. HengPeng continuing to innovate and develop new products such as amphibious dredger, salt mining dredger and more, upgrades existing dredger technology. Our engineers and designers are hired from prestigious dredger institutions in China.
Welcome to HengPeng Shipyard, we are looking forward to providing free consultation for your dredging projects, customize the dredge just for you, manufacture, delivery, assembly, train, operate, and provide lifetime technical assistance to achieve your dredging goal!
Dredger manufacture workmanship
Fortune 500 Company chosen supplier
Large production, ISO 9001 quality system
10 series of dredging equipment
A: HengPeng is a leading dredger manufacturer in China,
Q2, What are the services the HengPeng company is providing?
A: Free dredger consultation, drawing design, customization, on-site visits, free assembly,
training, operation testing, and lifetime technical assistance.
Q3, What are the delivery terms?
A: HengPeng Dredger delivery can be in containers or in bulk depends on the dredger size. HengPeng has in-stock dredgers,
and constantly storing dredger parts, pipes, pontoons, to shorten the delivery period for special needs.
Q4, What about the payment terms?
A: Payment can be paid in T/T and L/C, payment terms and financial support can be discussed.
Q5, What are the warranty terms?
A: HengPeng provides a standard 1-year warranty, free problem solving with lifetime technical assistance
Q6, Why you say HengPeng is your trustworthy dredger manufacturer?
A: HengPeng is a trustworthy dredger manufacturer because we have many years' manufacturer workmanship, manufactured for many Fortune 500 companies globally. HengPeng continuing to innovate and develop new products such as amphibious dredger, salt mining dredger and more, upgrades existing dredger technology. Our engineers and designers are hired from prestigious dredger institutions in China.
Welcome to HengPeng Shipyard, we are looking forward to providing free consultation for your dredging projects, customize the dredge just for you, manufacture, delivery, assembly, train, operate, and provide lifetime technical assistance to achieve your dredging goal!
