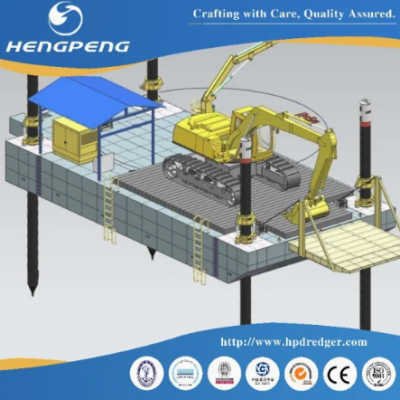

The Hengpeng Modular Pontoon Excavator Transportation Carrier offers diverse functionality as a SPUD modular dredger, floating working pontoon barge, and excavator platform carrier. It is designed for dredging operations in inland rivers, lakes, and ports. The carrier features a split structure, flexible movement, simple operation, and adaptability to various types of excavators and working conditions.
Modular Design: The modular structure allows easy assembly and disassembly, making transportation and installation straightforward.
High Buoyancy and Stability: The carrier is equipped with three spuds arranged in a triangular position to maintain stability during operations.
Versatile Functionality: It serves as a floating working platform, backhoe dredging vessel, and more, providing a wide range of capabilities.
Customizable Options: The platform can be tailored to suit specific project needs, including variations in size, capacity, and equipment.
High-Quality Construction: Made with CCS marine steel plate, ensuring durability and strength.
| Technical Specifications Details | ||
| Model | HP-MPETB 200 | HP-MPETB 200 PRO |
| Product Name | Modular Pontoon Excavator Transportation Carrier Barge | |
| Type | Floating Working Pontoon with Spuds / Modular Design Heavy Equipment Carrier Logistic Barge / Excavator Platform Carrier/ Floating Working Platform/ Spud Platform Project Carrier/ Pontoon Carrier /Pontoon Barge | |
| learn more about | learn more about | |
| Capacity(Max Pay Load) | 200ton | 200ton--800ton |
| Structure | Dismountable, loaded into containers for convenient land transportation,connection is by Bolts at jobsite | |
| Total Length | 21M | customized |
| Hull Width | 10M | customized |
| Hull Depth | 1.8M | customized |
| Dredging Depth | 7M | customized |
| Self-Propeller | Yes | |
| Tonnage | ||
| Excavator Model | Caterpilla-r/Komats-u Excavator | can be customized according to different application scenarios and actual transportation needs of customers (Excavator/Crane) |
| Control system | 1 set of Siemens PLC Control System, Full Hydraulic System | |
| Spuds | 3,Triangle positioning to maintain the stability of the floating body | |
| Engine | Weichai/Cummin s | customized |
| Generator | 12KW | |
| Hull Materials | CCS Marine Steel Plate | |
| Application/Mining Object | * to support a excavator safely working on the deck of pontoon in rivers/lakes, conduct backhoe dredging in inland river/lake areas. * for excavator dredging work in water/sand mining dredging to carry or transport Heavy Equipment /Trucks /Steels/Project * for transport Heavy Equipment /Trucks /Steels/Project Cargo/Passenger for short distance transportation from one point to another |
|
River Dredging: Ideal for river dredging projects, supporting excavators in various dredging activities.
Lake and Port Dredging: Suitable for dredging operations in lakes and ports, including sand mining and navigation engineering.
Construction Support: Can be used to transport heavy equipment, trucks, and other materials for construction projects.
Environmental Management: Assists in environmental management tasks such as garbage salvage and water management.
The Modular Pontoon Excavator Transportation Carrier features a dismountable hull design, facilitating easy transportation and assembly. The hull components are:
Main Hull Sections: Made of CCS marine steel plate, providing structural strength and stability.
Spuds: Three spuds for anchoring and stability during operations.
Pontoons: Modular pontoons that can be connected and disconnected as needed.
Deck: Designed to accommodate various types of excavators and equipment.
Lifetime Technical Support: Continuous technical guidance and support for the lifespan of the product.
24-Hour Service Response
Comprehensive Documentation
Customization and Field Support
Warranty
Spare Parts Availability: Ready supply of maintenance spare parts to ensure efficient operations.
Hengpeng Shipyard adheres to international standards and certifications, ensuring the quality and safety of its products. Our equipment is built according to ISO 9001 2015 standards, and all materials, including CCS marine steel plates, meet the necessary certifications for marine use.
Trusted Manufacturer
Innovative Design
Experienced Team
Comprehensive Solutions
Global Reach: Proven track record with projects in the UAE, Saudi Arabia, Egypt, Spain, and many other countries.
Welcome to Hengpeng Shipyard! We are eager to assist you with your dredging projects, providing customized solutions, manufacturing, delivery, assembly, training, and lifetime technical support to help you achieve your goals!
