Powerful 900m3/H Mini Suction Dredger Featuring Weichai Engine
US$ 65000 - 95000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
HengPeng
Place of Origin:
China
Model Number:
HP-JSD2510
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
1 days
Related Products
-
*Mini 60m3/H Jet Suction Dredger /Good Quality Mini Dredger/Smallest Sand Suction Dredger PumpUS$ 9500 - 12000MOQ: 1 Unit -
Efficient Jsd5014 Jet Suction Dredger for Large ProjectsUS$ 220000 - 250000MOQ: 1 Unit
-
High-Performance Large 4000m3/H Jet Suction Dredger Jsd5014 for Efficient Excavation*HPUS$ 220000 - 250000MOQ: 1 Unit
-
1400m3/H Jsd3010 Jet Suction Dredger With Pump for Sea & River Construction *HPUS$ 75000 - 105000MOQ: 1 Unit
-
Cutter Suction Dredger Stock New 4000m3/H CSD450 for Canal Dredging Sucking ConstructionUS$ 650000 - 780000MOQ: 1 Ton
Brand Name
HengPeng
Place of Origin
China
Model Number
HP-JSD2510
Type
Other, Jet suction type
Certification
CCS BV ISO9001 ZC DNV
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 Months Free Warranty, Free Repair.
Power Type
Diesel
Condition
New
Dredging Depth
10
Basic Info.
Model NO.
HP-JSD2510
Condition
New
Warranty
1 Year
After-sales Service
Lifetime Technical Support
Certification
CE/CCS/Zc/ISO9001
Engine
Weichai/Cumins/Jichai
Mining Object
Sand,Mud,Surry,Sludge,Salt,Iron
Usage
River Sand/Mud Dredging
Discharge Distance
1000m
Dredging Depth
10m
Water Flow Capacity
900m3/H
Transport Package
in Containers
Specification
HP-JSD2510
Trademark
HengPeng
Origin
Qingzhou City, Shandong Province, China
HS Code
89051000
Production Capacity
120sets
Product Description
JET SUCTION DREDGER HP-JSD250
900m³/h STOCK NEW JET SUCTION DREDGER,which is designed for convenient transport, all parts of the Jet Suction Dredger can be moved via road, rail, or water. The dredger features a rapid connection-disconnection system for the pontoons, utilizing bolts at deck level, hull front and rear, and hooks at the bottom. Powered by a robust Marine engine, this dredger is built for efficiency.Constructed from all-welded steel, the hull ensures the dredger possesses the strength necessary for demanding dredging operations.
The hull is fabricated using high-quality CCSB shipbuilding steel plates.
| Jet Suction Dredger Specs HP-JSD2510 | ||
| Model | Specifications | Remark |
| Total length | 11.5m | |
| Hull length | 1.2m | |
| Hull width | 4.3m | |
| Main engine | 270kw | Weichai |
| Generator | 24kw | Weichai |
| Pump | WN200 | Shijiazhuang |
| Suction dia | 250mm | |
| Discharge dia | 200mm | |
| Water flow | 900m3/h | |
| Discharge distance | 1000m | |
| Working weight | 20 Ton | |
| Dredging depth | 1~10m | |
| Ladder | 14m | |
| Winch | 5sets | |
| Operation | Electric System | |
| Steel plate | Bottom:8mm; Side:6mm; Deck:4mm | |
| Transport Package | in Containers | |
| Production Capacity | 300 Sets | |
In 40HQ container
1.Ideal for operations in closed seas, inland rivers, and lakes.
2.Operates on a principle that employs a strong current to elevate sediment, which is then suctioned through a pipeline by the sediment pump.

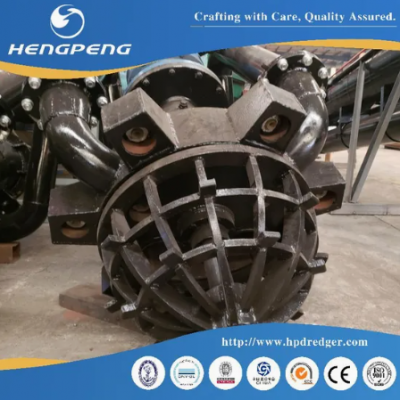

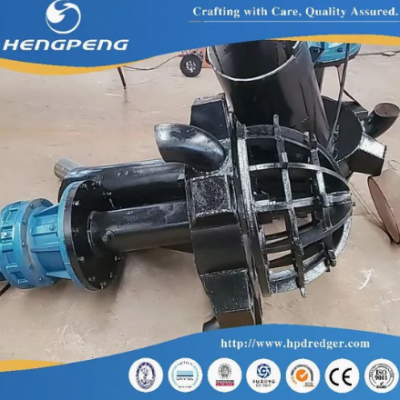

3.Fan-shaped mud suction at the front of the bridge allows for flexible and convenient deep and fan operations.
4.Built to China Ship Inspection ZC Standards and our rigorous enterprise standards.
5.Engine and pump are centrally located in the main engine compartment, with side hulls serving as fuel tanks, ballast tanks, and storage bins. Four ballast tanks are strategically positioned at the front and rear ends of the side appendage.
6.The entire ship can be disassembled and transported via car or container.
7.Features a large, bright operating room equipped with air-conditioning and adjustable seats for a comfortable working environment.
8.All monitoring instruments, light control buttons, and action command buttons are operated by a single driver.
