Features:
1. One-man operation. The most advanced PLC control system.
2. New highly effective cutter/wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5. Completely assembled and fully tested before delivery
6. Very simple and fast assembly, afloat of onshore
7. Standard design, allowing short delivery times
8. Standard spare parts available from stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Optional equipment available
.Hull decomposition:
4. Take a closer look at the entire range of products
(Dredger Basic Technical Specifications )
All models are up to you to choose from.
| HP 1504 | HP 2006 | HP 2508 | HP 3010 | HP 4014 | HP 4514 | HP 5514 AND PRO | HP 6014 AND PRO | HP 7514 AND PRO |
| learn more about | learn more about | learn more about | learn more about | learn more about | learn more about | learn more about | learn more about | learn more about |
| RELIABLE HYDRAULIC /ELECTRICAL OPERATION SYSTEM | RELIABLE HYDRAULIC /ELECTRICAL OPERATION SYSTEM | RELIABLE HYDRAULIC /ELECTRICAL OPERATION SYSTEM | RELIABLE HYDRAULIC /ELECTRICAL OPERATION SYSTEM | 100% Full HYDRAULIC SYSTEM | 100% Full HYDRAULIC SYSTEM | 100% Full HYDRAULIC SYSTEM | 100% Full HYDRAULIC SYSTEM | 100% Full HYDRAULIC SYSTEM |
| One-man operation. The most advanced Siemens PLC Control system. | Siemens PLC | Siemens PLC | Siemens PLC | Siemens PLC | Siemens PLC | Siemens PLC | Siemens PLC | Siemens PLC |
| Pump Water Flow Capacity could 400m3/H | Pump Water Flow Capacity could 500-600m3/H | Pump Water Flow Capacity could 800-900m3/H |
Pump Water Flow Capacity could 1200-1400m3/H |
Pump Water Flow Capacity could 2200m3/H | Pump Water Flow Capacity could 3000m3/H | Pump Water Flow Capacity could 3500-4000m3/H |
Pump Water Flow Capacity could 5000-7000m3/H | Pump Water Flow Capacity could 8000m3/H |
| Discharge Distance 300m | 600m | 1000m | 1200m | 1500m | 1500m | 1500m-2000m | 1500m-2000-2200m | 3000m-4000m |
| 4M Max. Dredging Depth | 6--7M Max. Dredging Depth | 8M Max. Dredging Depth | 10M Max. Dredging Depth | 14M Max. Dredging Depth | 14M Max. Dredging Depth | 14M or 20M Max. Dredging Depth | 14M or 22M Max. Dredging Depth | 14M or 20M or 25M Max. Dredging Depth |
1. Dredging, transportation, and expansion of reservoirs or rivers. Environmentally friendly and efficient, with strong cutting ability and long spacing, excavation and pumping can be completed in one go.
2. Various water conservancy and environmental dredging projects, such as lakes, reservoirs, rivers, beaches, river surfaces, and waterways. Dredging is an important tool in ecological protection.
3. In the sea containing coral reefs, dredgers carry out dredging or reclamation near the sea, and land or island construction. (such as Maldives dredging and reclamation project)
4. In waterway dredging, the main task of a dredger is to clear the sediment at the bottom of the riverbed and maintain the smoothness of the waterway. In addition, the dredger can also shape the riverbed and improve the navigation capacity of the waterway. Through waterway dredging, the smoothness of water flow can be improved, which helps to improve the aquatic ecological environment; On the other hand, dredgers can also provide a good habitat for aquatic organisms during the operation process.
Main Parameter information. Customized
| Cutter Suction Dredger Specs HP-CSD3515 | |||
| No. | Item | Parameter | Remark |
| 1 | Product Name | HP-CSD3515 | |
| 2 | Total Length | 36m | |
| 3 | Hull Length | 25.0m | |
| 4 | Hull Width | 6.0m | |
| 5 | Hull Depth | 1.8m | |

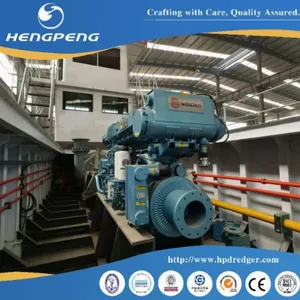

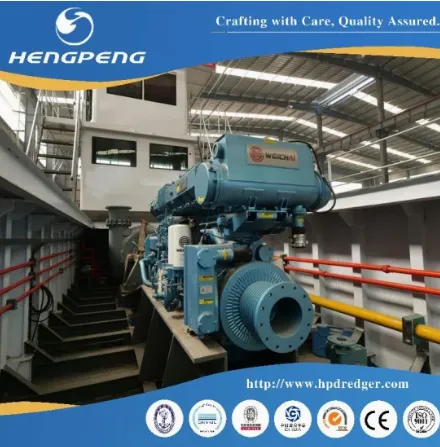

| 6 | Main Engine | 720KW Generating unit Attach |
CUMMIN S/ WEICHAI/ OTHER BRAND ENGINE |
| 7 | Auxiliary Engine | 24KW Generating unit | WEICHAI POWER/ WEICHAI/ OTHER BRAND ENGINE |
| 8 | Dredging Depth | 14m | |
| 9 | Pump Water Flow Capacity |
2000m3/h |
|
| 10 | Standard Discharge Distance |
1500m |
|

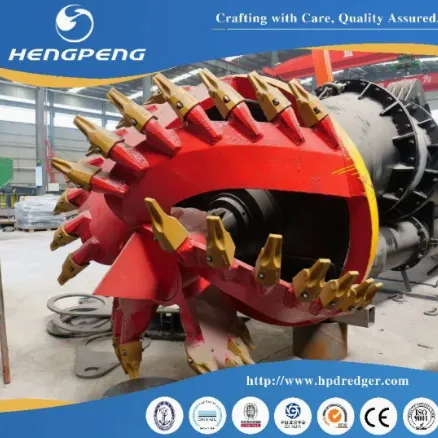

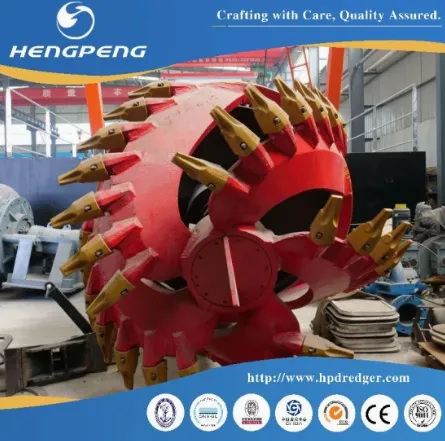

| 11 | Cutterhead Dia | 1.55m | |
| 12 | Pump Discharge Dia | 300mm | MADE IN SHIJIAZHUANG,AUSTRILIA TECHNOLOGY |
| 13 | Pump Suction Dia | 350mm | |
| 14 | Water Flow | 2200m³/h | |
| 15 | Discharge Distance | 1500m | |
| 16 | Working Weight | 130Ton | |
| 17 | Spud Pile | 450mm, two pieces, 18meters/piece | |
| 18 | Hydraulic Winch | 3 pieces | |
| 19 | Navigation Ability | YES | |
| 20 | Operation System | PLC Control System and Hydraulic system |
|
| 21 | Spare Part | Diesel engine tools,oliseal,eletric welder and so on, 70 items. |
|
| Cutter Suction Dredger Specs HP-CSD5514 | |||
| No. | Item | Specification | |
| 1 | Product Name | HP-CSD5514 | |
| 2 | Total Length |
39.00m |
|
| 3 | Hull Length |
29.00m |
|
| 4 | Hull Width | 8.00m | |
| 5 | Hull Depth |
2.20m |
|
| 6 | Main Engine |
1193KW | CUMMIN S/ WEICHAI/ OTHER BRAND ENGINE |
| 7 | Auxiliary Engine | 298KW | CUMMIN S/ WEICHAI/ OTHER BRAND ENGINE |
| 7 | Dredging Depth |
14m | |
| 8 | Pump Water Flow Capacity |
4000m3/h |
|
| 9 | Standard Discharge Distance |
1500m-2000m |
|
| 10 | Working Weight |
300T |
|
| 11 | Winches |
3 Sets |
|
| 12 | Operation System |
The most advanced Hydraulic and PLC control system |
|
| 13 | Delivery Time |
120days.(There is stock available in the workshop, and delivery will be made within 7 days) |
|
Under CCS, BV, ISO9001, CE, ZC, Dnv, Patent
* Smaller size dredger will be transported by container, the dredger is split, each part can be lifted into containers in the warehouse, after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.
1. Lifetime Technical Support, provide technical guidance on engineers usage and other aspects according to consumer requirements
2. 24-hour service response mechanism
3. Making an excellent filing of customers for long-term following-up service.
4. All the dredgers can be Customized.
5. Field Installation,commissioning,and training by our engineers
6. Provide professional service and providesolution in a timelymanner.
7. 12 months free warranty, free repair services,.
8. Sending engineers to assemble and test the machine within theperiod as agreed in the contract.
9. Ensure the supply of maintenance spare parts, and shipyard warehouse inventory of dredger/barge parts can quick and efficient supply in a short period of time;
