Product Introduction
The temperature and humidity calibration box is specially developed by our company for calibrating temperature and humidity meters. It has a 360°C observation window without dead angles, and has high stability and fluctuation index. It is a special calibration equipment used to detect hair temperature and humidity meters (meters), dry-bulb thermometers, digital temperature and humidity meters and other types of temperature and humidity sensors. It is suitable for use in measurement
departments at all levels, meteorological departments, electronics, electricity, military and other production departments, colleges and universities, and scientific research institutes.
Product Features
1. According to the actual needs of a large number of calibrated thermometers and hygrometers, the detection space is large, and multiple mechanical thermometers and hygrometers can be detected at the same time, with high calibration efficiency;
2. The double operation hole design on the box allows the calibrator to put his hands deep into the box and adjust the instrument being tested directly in the box, which greatly improves the calibration efficiency;
3. The double-layer high-temperature resistant and anti-aging silicone sealing strip is used to effectively ensure that the experimental area is not affected by the external environment:
4. Ultra-thick insulation layer, three-sided observation window vacuum glass is designed, and the cold and heat are not lost, ensuring rapid and stable temperature rise and fall; anti-frost device and controllable lighting for observation are set;
5. It adopts human-machine interface, touch screen control, good control interface, and temperature control logic adopts programmable controller, which can export and store data with one key;
6. The control sensor adopts high-precision temperature and humidity sensor, and adopts the original imported compressor known as "temperature control expert", which has high stability and PID parameter self-tuning function, ensuring the rapid and stable balance of the system.
Technical advantages
1. High-definition touch screen, multi-point quick setting, simple operation, easy to learn;
2. Automatic calculation of fluctuation, intelligent stability prompt, intelligent display of water level status
3. Customizable computer and mobile phone control functions, you can remotely view the current temperature and humidity values and operating status through the mobile phone. (Optional)
4. Heater overheating protection, humidifier anti-dry burning protection, water pump anti-idling protection, leakage protection, compressor thermal protection, regular water change reminder function (standard)
5. PWM speed-adjustable fan controls wind speed, users can change wind speed according to their needs.
6. The temperature (humidity) rises and falls quickly, 40%RH~60%RH/60%RH~80%RH only takes 10min.
Product Parameters
Project Name |
Technical Parameters |
Product Model |
DY-WSX01A |
Temperature resolution |
0.01℃ |
Humidity resolution |
0.01%RH |
Temperature range |
-5℃～65℃ |
Humidity range |
5%RH～95%RH(20℃) |
Temperature fluctuation |
≤±0.2℃ (15℃、20℃、30℃) |
Temperature uniformity |
≤0.3℃ (Values measured at15℃、20℃、30℃) |
Humidity fluctuation |
≤±0.6%RH(20℃) |
Humidity uniformity |
≤0.8%RH(20℃40%、60%、80%RH) |
Control method |
7-inch LCD high-definition display touch screen |
Work area size(mm) |
500mm×500mm×600mm |
Dimensions(mm) |
1040mm×820mm×1760mm |
Programmable functions |
It has the function of program update import, which can import the temperature and humidity detection points into the system operating system, and realize one-key start and conversion. |
Full range correction function |
Realize multi-point correction function, multi-point difference correction of temperature (humidity) |
Smart prompt function |
The temperature and humidity are automatically calculated in real time. It can intelligently judge whether the calibration box is stable according to the current temperature and humidity fluctuation values. After stabilization, the interface will display the temperature and humidity stability. It also has an intelligent water adding reminder function. |
External structure |
Shell: corrosion-resistant and anti-oxidation high-quality acid-washing spraying process; Liner: SUS304 with good heat resistance and ASTM standard; Glass: 3C national thermal certificate 5-layer vacuum high-strength tempered glass Sealing: double-layer high-temperature resistant and anti-oxidation medical-grade sealing silicone |
Adjustment test hole（3） |
φ100mm（*2）；φ50mm（*1） |
Temperature and humidity control sensor |
High-precision temperature and humidity control sensor: Swiss ROTRONIC Hygroclips temperature and humidity probe; Measuring range: 0 ~ 100% RH / -40~85℃; accuracy ± 1.5%, ± 0.3℃ |
Power supply |
220V AC 50HZ ≤4.5KW |
Work Environment |
Ambient humidity:10%RH～80%RH ; ambient temperature : 10℃-30℃ |

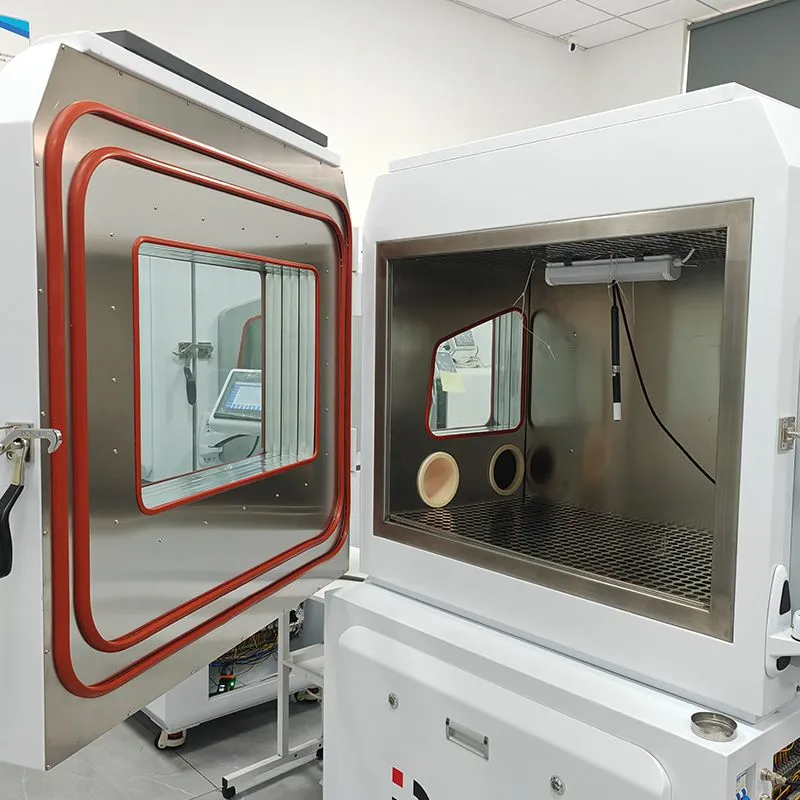

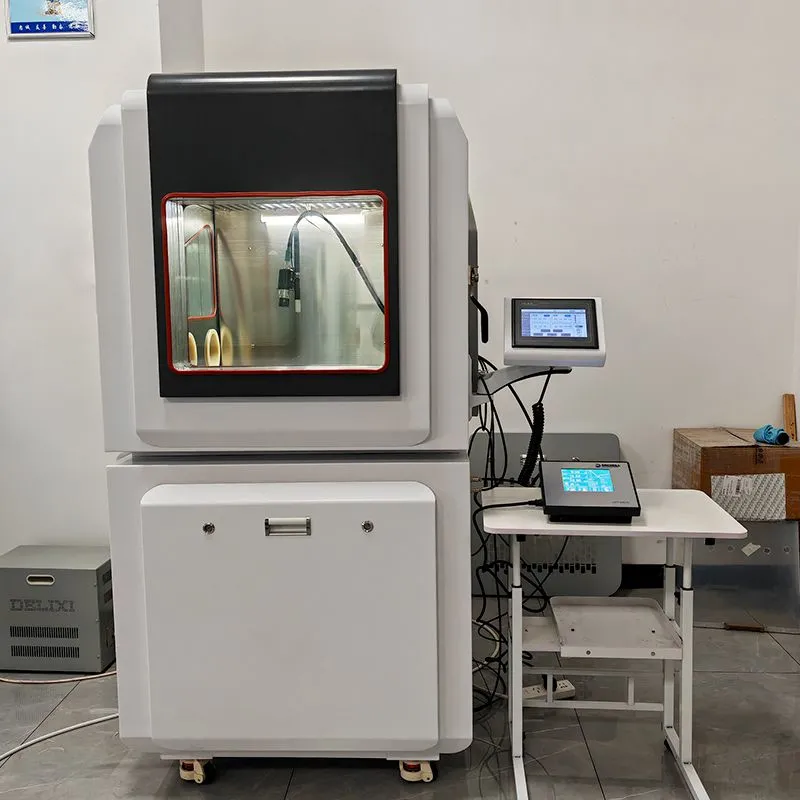

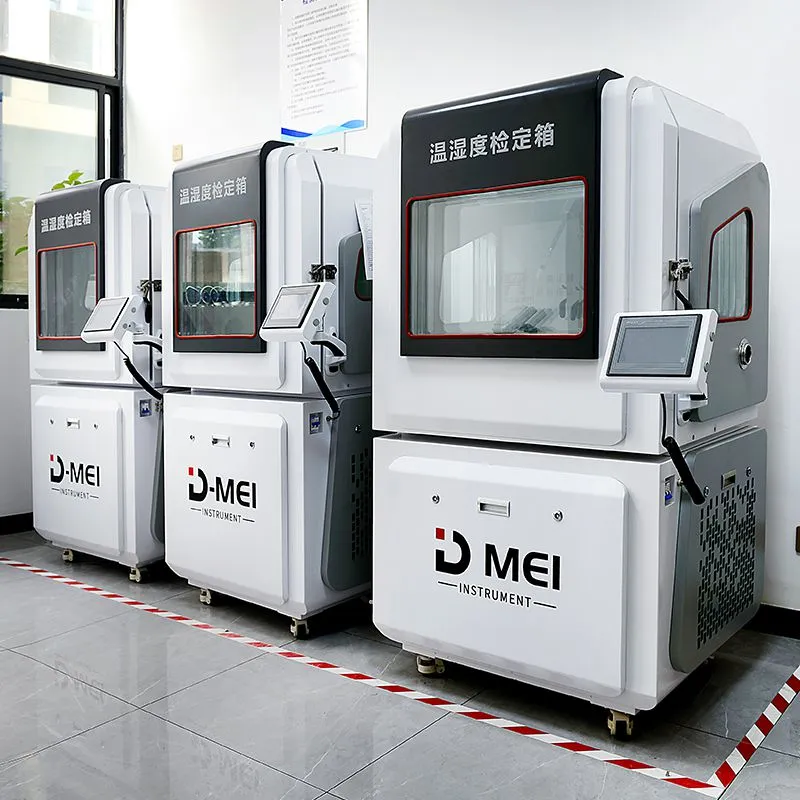

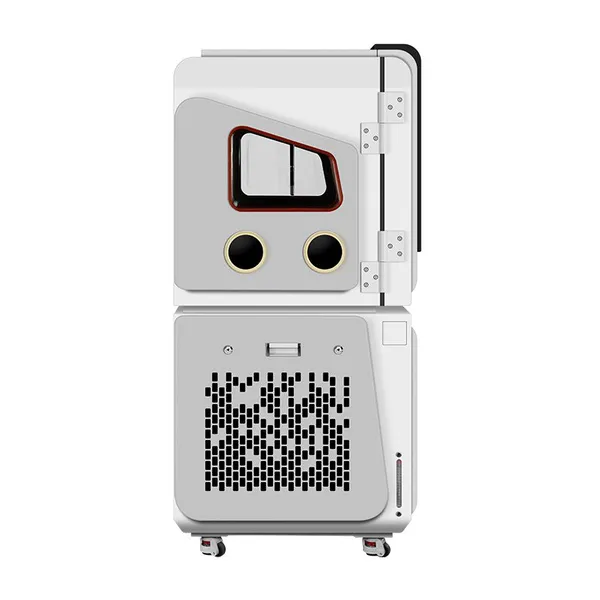

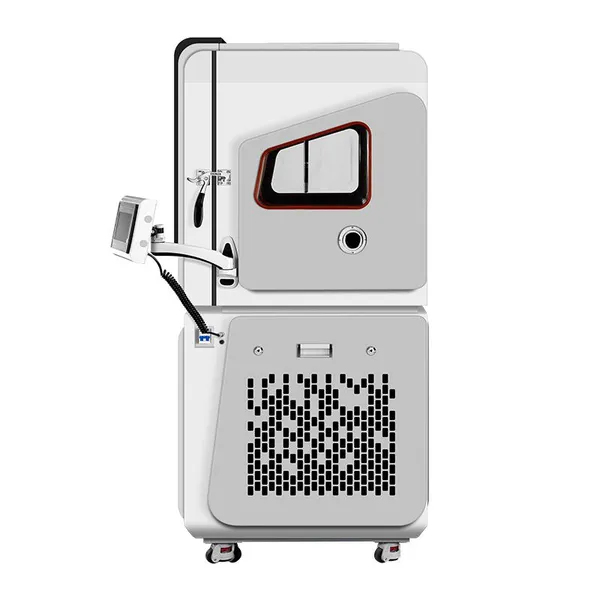

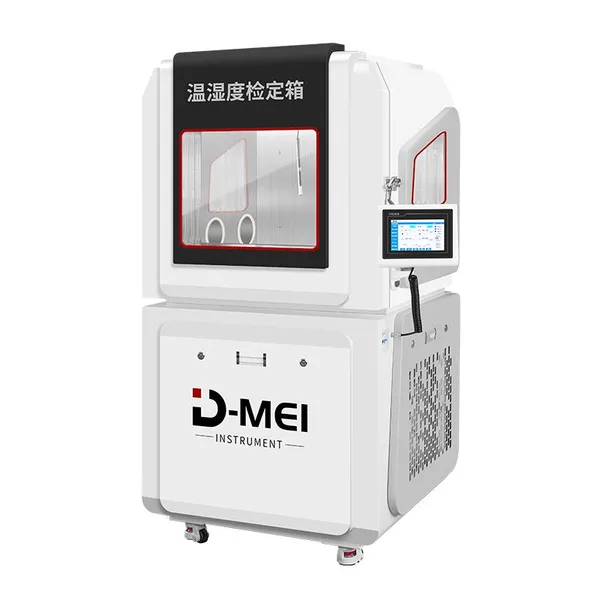

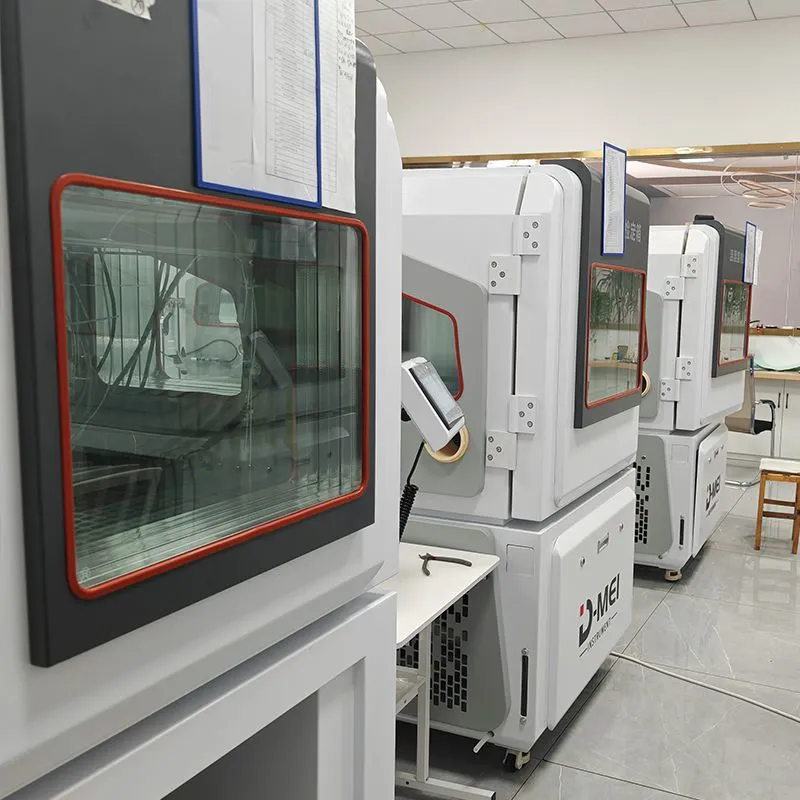

Product photos
