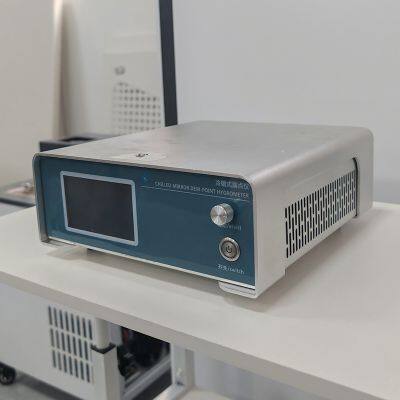

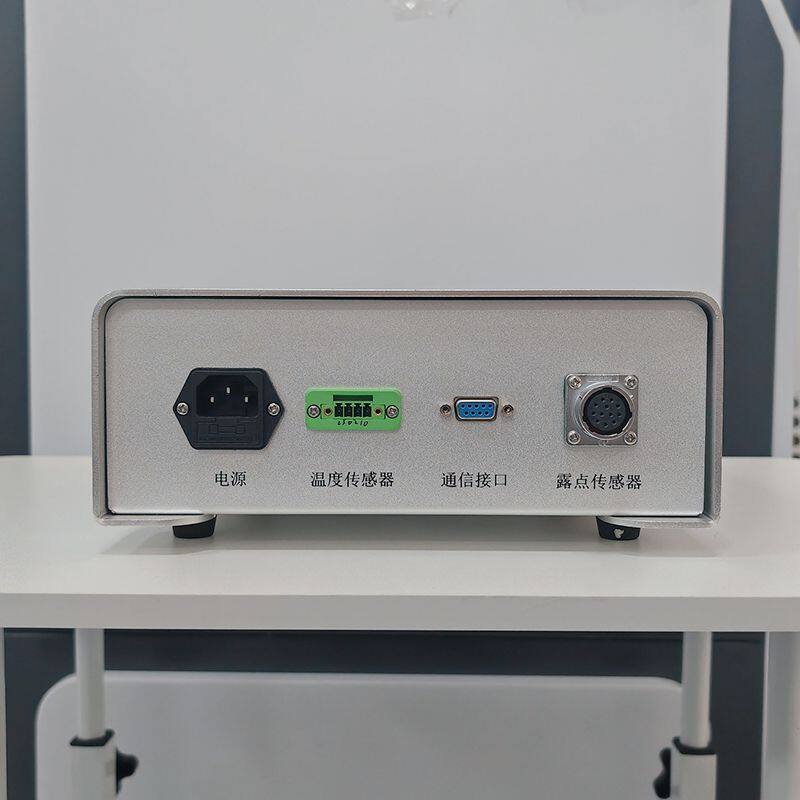

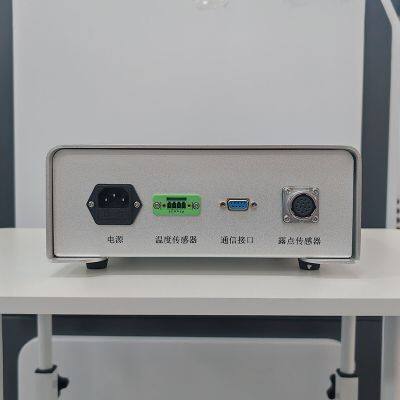

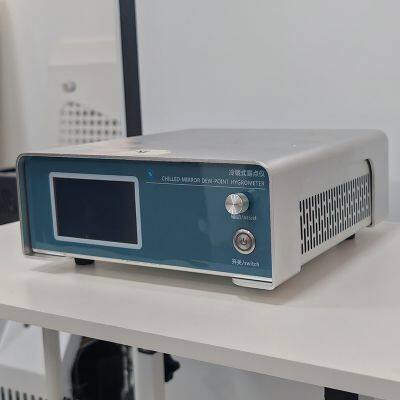

DY-LD01 Chilled Mirror Dew Point Meter

DY-LD01 Chilled Mirror Dew Point Meter thumbnail-1
DY-LD01 Chilled Mirror Dew Point Meter thumbnail-2
DY-LD01 Chilled Mirror Dew Point Meter thumbnail-3
DY-LD01 Chilled Mirror Dew Point Meter thumbnail-4
DY-LD01 Chilled Mirror Dew Point Meter thumbnail-5
DY-LD01 Chilled Mirror Dew Point Meter photo-1
DY-LD01 Chilled Mirror Dew Point Meter photo-2
DY-LD01 Chilled Mirror Dew Point Meter photo-3
DY-LD01 Chilled Mirror Dew Point Meter photo-4
DY-LD01 Chilled Mirror Dew Point Meter photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DEMEI
Place of Origin:
China
Model Number:
DY-LD01
Contact Supplier Request Quote Chat Now
Taian Demei Electromechanical Equipment Co.,LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DEMEI
Place of Origin China
Model Number DY-LD01
Temperature Range -20°C~95°C
Usage Industrial
Theory Hygrometer
Accuracy ±0.2℃ (optional ±0.1℃)

Product Introduction


DY-LD01 chilled mirror dew point meter (immersion type) -20℃～+95℃ is an instrument dedicated to testing dew point temperature, ambient temperature and relative humidity. The product adopts the chilled mirror principle, touch screen control system, and fully automatic continuous analysis. The dew point meter has high accuracy, wide range, good stability, and no drift. It is widely used in temperature and humidity measurement work of measurement units and other fields.


Product Advantages


√ Wide range: -20℃～+95℃

√ High accuracy: ±0.2℃ (optional ±0.1℃)

√ High resolution: 0.01℃

√ Real-time display of the entire curve

√ Touch screen operation, Chinese and English dual interface, easy operation

√ Automatic balancing system, short measurement time

√ Mirror contamination self-detection function, manual mirror cleaning

√ Data storage, query and printing functions

√ Long-term stability, good repeatability, can do online analysis

√ Users can do single-point or multi-point calibration


Technical Indicators

Model
DY-LD01
Range
-20℃～+95℃
Accuracy
≤±0.15℃~±0.2℃
Resolution
0.01℃ 0.01%RH
Display interface
language customizable, TFT color LCD touch screen Real-time temperature, humidity, balance process curve, balance indication, etc.
Uncertainty
≤±0.1℃-0.15℃
Repeatability
≤±0.05℃
Humidity sensor
First-level probe
Dew point temperature range
-20℃-95℃
Relative humidity range
 0-100％RH
Accuracy
 ±0.2℃ (optional ±0.15℃)
Temperature sensor
PT100 Class A
Temperature range
-40℃～+60℃
Accuracy
±0.1℃
Cooling method
Second-level semiconductor Peltier cooling
Alarm function
 1. Sample gas flow abnormality alarm 2. Mirror contamination alarm 3. Humidity setting value alarm
Traceability
Traceable to MBW973 standard certificate
Ambient temperature and humidity
 Ambient temperature: -20℃~+50℃; humidity environment ≦95%
Appearance size (mm)
250mm×300mm×100mm
Random accessories
 Host×1, power cord×1, temperature sensor×1 set, dew point sensor×1, dew point sensor line×1, three packs×1,
instruction manual×1, portable instrument box×1
Weight
≤3KG (including aluminum chassis≤6.5KG)
Power supply voltage and power
90~220V AC 50~60Hz 60W (260)
Signal output
 Serial communication R232

Product Pictures
