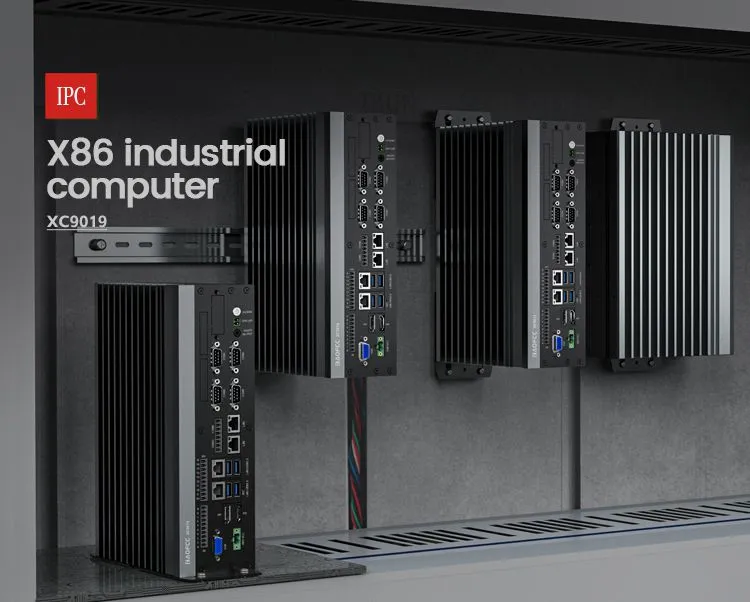

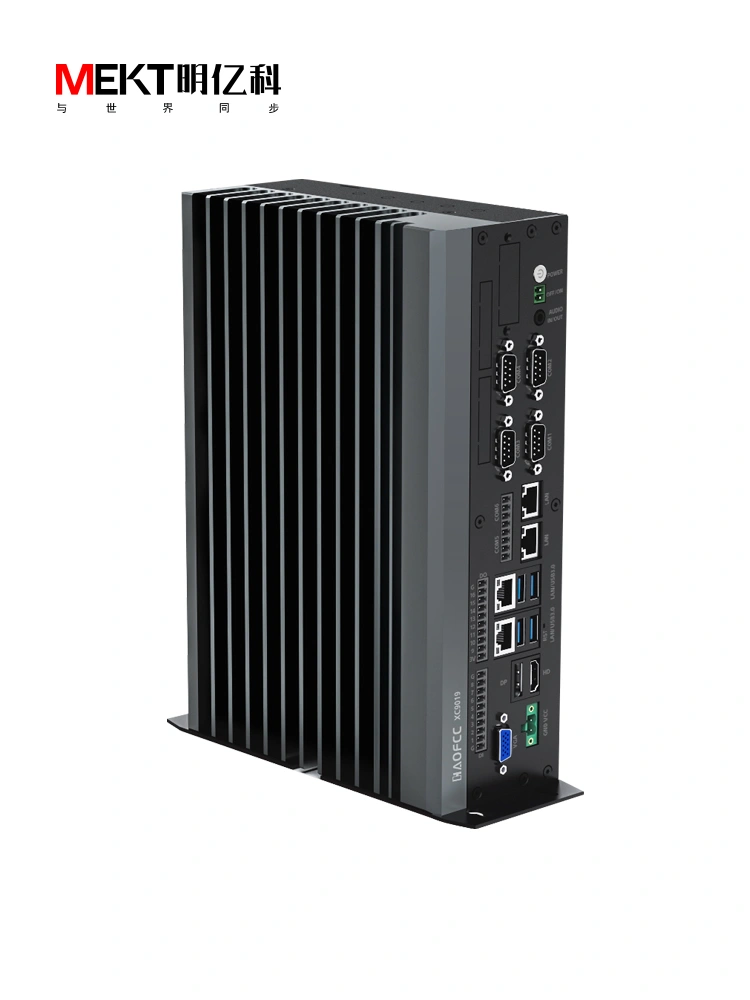

Help CenterWide Temperature Embedded Industrial Control Computer Industrial Grade Sturdy Computer Wide Voltage With WIFI/COM/RJ45
Related Products
-
4U Industrial Control Chassis Embedded Industrial Control Host Low-power Windows Fanless ComputerUS$ 568 - 570MOQ: 1 Unit -
J6412/i3/i5/i7-11 Embedded Win10 IoT/11 Linux Dual Network Port Resistant High and Low Temperature Industrial X86 Mini ComputerUS$ 425 - 426MOQ: 1 Unit
-
XC9018 Low Power Windows Fanless Computer POE Industrial Grade Rugged Computer, Wide Voltage With LAN USB HDUS$ 880 - 1090MOQ: 1 Unit
-
6 Network Port Intel 12/13 Generation Industrial Host Domestic System UOS Etc. Win10IoT/11/Linux/Industrial Control MachineUS$ 930 - 1150MOQ: 1 Unit
-
RK3568 Android 11 Android Box Video Player Android Industrial Control Host With LAN USBUS$ 230 - 306MOQ: 1 Unit
Industrial computer |
Brand |
HAOFCC |
|
Model |
XC9019 |
||
Motherboard function |
Mainboard |
HAOFCC industrial motherboard |
|
CPU |
I3-6th(optional i5-6th/i7-6th) |
||
|
Dual-core and four threads 3.2GHz |
|||
Cache 3 MB Intel® Smart Cache |
|||
Integrated graphics |
Intel® HD Graphics 530 |
||
System |
Support Windows7/8.1/10/11, Linux |
||
RAM |
4G (optional 8G/16G/32G/64G) |
||
SSD |
128G(optional 256G/512G/1T/2T/4T) |
||
LAN |
LAN*4 10M/100M/1000M adaptive |
||
USB |
USB3.0*4 |
||
COM |
COM*6 (2*RS232/422/485, 4*RS232) |
||
HD |
HD*1 |
||
DP |
DP*1 |
||
DI/DO |
DI*8 |
||
DO*8 |
|||
AUDIO |
Audio in/out*1 |
||
Extensible |
COM*4/CAN*2 (choose one), LAN*2 |
||
Wireless network |
Wireless card |
Wifi standard with none (expandable) |
|
Open close |
ON/OFF |
Power*1，ON/OFF*1 (external control can be supported) |
|
Power input |
AC/DC |
DC9-36V |
|
Watchdog |
Watch dog timer |
0-255 seconds, providing watchdog routine |
|
Product Power |
Power |
≤20W |
|
Environment |
Operating temperature/humidity |
-20℃ to +70℃/ 0-80% relative humidity, no condensation |
|
|
Storage temperature/humidity |
-40℃ to +80℃/0-90% relative humidity, no condensation |
||
Vibration resistant |
30Hz, X, Y, Z axis 60 minutes each |
||
Esd protection |
Class 3, contact discharge ± 6KV, air discharge ±8KV |
||
Test standards |
IEC60601 |
||
Product service |
After service |
one-year warranty and lifelong maintenance |
|
Customized service |
OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
||
