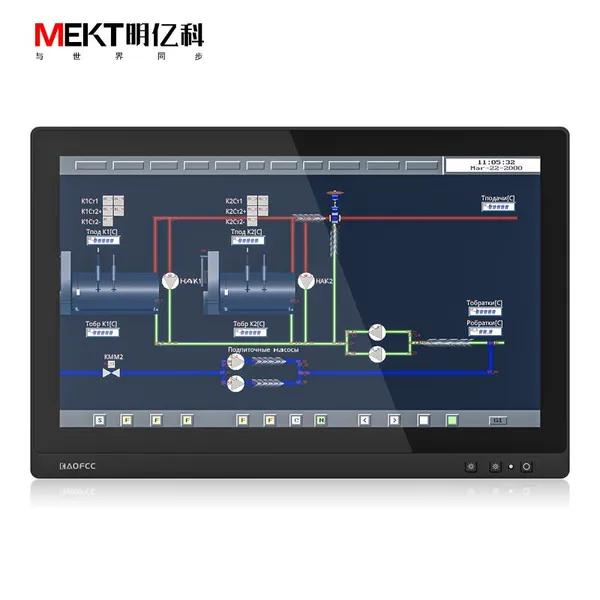

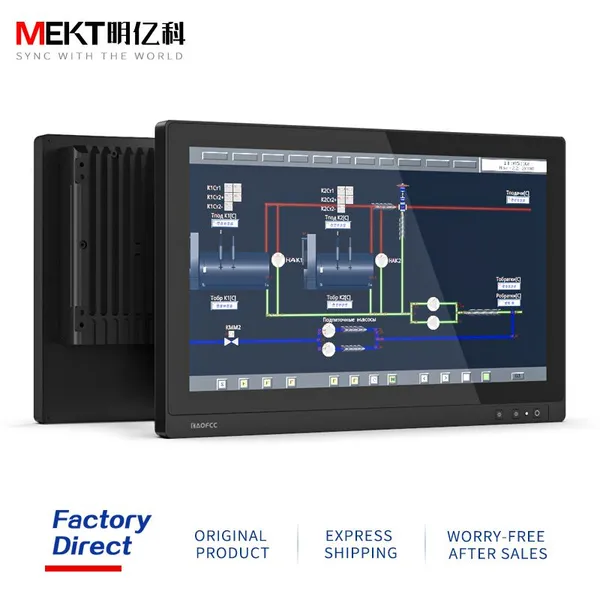

13.3-inch marine embedded display 1000cd touch screen all-in-one machine MEKT Mingyike
You May Like
-
13.3- Inch Capacitive Multi-point HD LCD Monitor High Brightness Touch Screen Monitor with VESA Installation
-
9U Rack -Type 19 Inch Cabinet -up Terminal Server Touch all -in -one Computer Vision Terminal
-
24-Inch 2K/4K Capacitive LCD Touch Screen Embedded All-in-One Computer Industrial tablet PCs
-
21.5 Inch Support Windows 10 IOT/11/Linux/UOS System Industrial Touch all -in -one Industrial Computer
-
1366*768/1080P/ 18.5 Inch Industrial Intelligent Terminal Query Touch Screen All-in-Ones Machine Embedded Tablet Computer
-
19 Inch External Embedded Anti-jamming Front Panel IP65 Waterproof LAN/COMRS232/485/USB/HDMI Interface Smart Touch All-in-Ones PC
Product Details
| Brand Name | MEKTmingyike | Place of Origin | China | |
| Model Number | P133CCHS | Type | All-In-One | |
| Screen Size | Other, 13.3 | Products Status | Stock | |
| Processor Brand | Intel | Processor Main Frequency | 2.0GHz | |
| Optical Drive Type | Other | Widescreen | Yes | |
| Display Type | LCD | Hard Drive Capacity | 120GB | |
| Memory Capacity | ≥ 4GB |
Product Description
Display Pane | Brand | HAOFCC |
Model | P133CCHS | |
Size/Proportion | 13.3 inch 16:9 | |
Resolution | 1920*1080 | |
Brightness | 450cd/㎡(Can be customized 1000cd/㎡) | |
Contrast | 1000:1 | |
Display color | 16.7m | |
Response time | 2-5ms | |
Visible angle | 85/85/85/85(Typ.CR≥10) | |
Pixel pitch(mm) | 0.153(H)X 0.153(V)mm | |
Draw quality | 3D noise reduction, high-definition signal, progressive scan | |
Touch Function | Touch screen | Capacitive touch screen (10 points) |
Surface hardness | ≥6h | |
Transmittance | ＞95% | |
Positioning accuracy | less than 2mm | |
Click lifetime | > 60 million times | |
Touch medium | Current sensing, capacitive touch pen, finger | |
Right-click function | click on a certain point and press for more than 3 seconds | |
Touch interface | USB | |
Motherboard Function | Mainboard | HAOFCC industrial motherboard |
CPU | Intel Celeron J6412 Quad-core | |
the cpu frequency is 2.0ghz，Max Speed Up to 2.6GHz | ||
Secondary cache 1.5 MB L2 Cache | ||
integrated graphics | Intel® UHD Graphics for 10th Gen Intel® Processors | |
graphics card frequency | 400MHz | |
dynamic frequency | 800MHz | |
System | Windows 10 IoT Enterprise（Support Windows11，Linux，UOS） | |
RAM | 4G (optional 8G/16G/32G) | |
SSD | 128G (optional 256G/512G/1T/2T) | |
LAN | LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive | |
USB | USB3.0*4 | |
COM | RS232(485)*4 （Customizable RS422） | |
HD | HD*1 Resolution up to 4096x2160@24Hz | |
SIM | SIM*1 | |
Wireless Network | Wireless card | Wifi is not available as standard (optional) |
Open Close | Power | Power*1 (power-on and power-on function can be set) |
Power Input | AC/DC | DC9-36V |
Watchdog | Watch dog timer | 0-255 seconds, providing watchdog routine |
Product Power | Power | ≤20W |
Work Environment | Operating Temperature/humidity | -10℃ to +60℃/ 0-80% relative humidity, no condensation |
storage Temperature/humidity | -15℃ to +65℃/0-90% relative humidity, no condensation | |
Vibration resistant | 30Hz, X, Y, Z axis 60 minutes each | |
Esd protection | Class 3, contact discharge ± 6KV, air discharge ±8KV | |
Panel level | IK6 | |
Test standards | IEC60601 | |
ProductService | After service | one-year warranty and lifelong maintenance |
Customized service | OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
