Motherboard Function |
Brand |
MEKTmingyike |
Model |
LM035 |
|
mainboard |
Intel Celeron J6412 Quad-core |
|
CPU |
the cpu frequency is 2.0ghz |
|
Secondary cache 1.5 MB L2 Cache |
||
Intel Celeron J6412 Quad-core |
||
integrated graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
|
Graphics card frequency |
400MHz |
|
dynamic frequency |
800MHz |
|
RAM |
4G (optional 8G/16G/32G) |
|
SSD |
128GB(optional 32G/128G/512G/1T) |
|

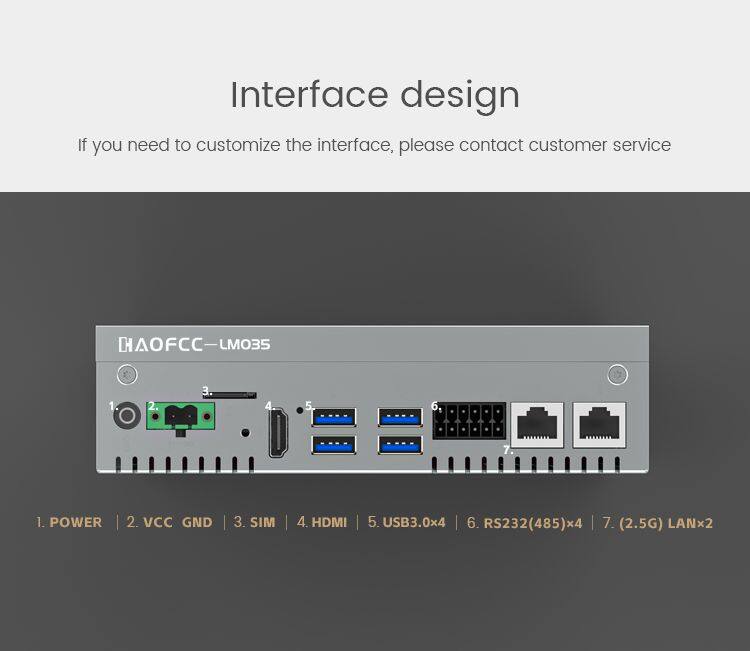

LAN |
LAN*2 100/1000M adaptive |
|
USB |
USB3.0*4 |
|
COM |
RS232(485)*4 |
|
HD |
HD*1 |
|
SIM |
SIM*1 |
|
Wireless Network |
Wireless card |
Wifi is not available as standard (optional) |
Open Close |
Power |
Power*1 (power-on and power-on function can be set) |
Power Input |
AC/DC |
DC9-36V |
Watchdog |
Watch dog timer |
0-255 seconds, providing watchdog routine |
Product Power |
Power |
≤20W |
Work Environment |
Operating Temperature/humidity |
-30℃ to +70℃/ 0-80% relative humidity, no condensation |
|
storage Temperature/humidity |
-40℃ to +75℃/0-90% relative humidity, no condensation |
|
Temperature values are limited to the body and inside zero devices, but does not include the motherboard and memory. (If you need the whole machine, please consult) |
||
Product Service |
After service |
one-year warranty and lifelong maintenance |
Customized service |
OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
