HD/DP/VGA Industrial Grade Front Panel Ip65 10 Point Capacitive Touch Screen Monitor for Vending Machines
You May Like
-
Customized 1000 Nit Brightness Touch Display Rack Mounted Industrial Touch Display With VGA DP HD
-
Jellyfish P133WUGA-A Industrial Touch Screen Display 13.3-inch Widescreen Capacitive Touch LCD Monitor for Yacht Marine Ship
-
13.3 Inch Capacitive Touch Screen Industrial HD LCD Monitor 1080P
-
13.3-inch Marine Embedded Display 1000cd Touch Screen All-in-one Machine MEKT Mingyike
-
13.3- Inch Capacitive Multi-point HD LCD Monitor High Brightness Touch Screen Monitor With VESA Installation
-
9U Rack -Type 19 Inch Cabinet -up Terminal Server Touch All -in -one Computer Vision Terminal
Product Details
| Brand Name | MEKTmingyike | Place of Origin | China | |
| Model Number | P101WX | Screen Size | Other, 10.1 inch 16:10 | |
| Products Status | Stock |
Product Description
Display Pane | Brand | MEKTmignyike |
Model | P101WX | |
Size/Proportion | 10.1 inch 16:10 | |
Resolution | 1280*800 | |
Brightness | 300cd/㎡(Can be customized 1000cd/㎡) | |
Contrast | 800:1 | |
Cisplay color | 16.7m | |
Response time | 3-5ms | |
Visible angle | 85/85/85/85(Typ.CR≥10) | |
Pixel pitch(mm) | 0.1695(h)x0.1695(v) | |
Draw quality | 3D noise reduction, high-definition signal, progressive scan | |
Touch Function | Touch screen | Capacitive touch screen (10 points) |
Surface hardness | ≥6h | |
Transmittance | >95% | |
Positioning accuracy | less than 2mm | |
Click lifetime | > 60 million times | |
Touch medium | Current sensing, capacitive touch pen, finger | |
Right-click function | Click on a certain point and press for more than 3 seconds | |
Touch interface | USB (optional COM) | |
Motherboard Function | Refresh frequency | 60Hz |
Power input | DC12-36V | |

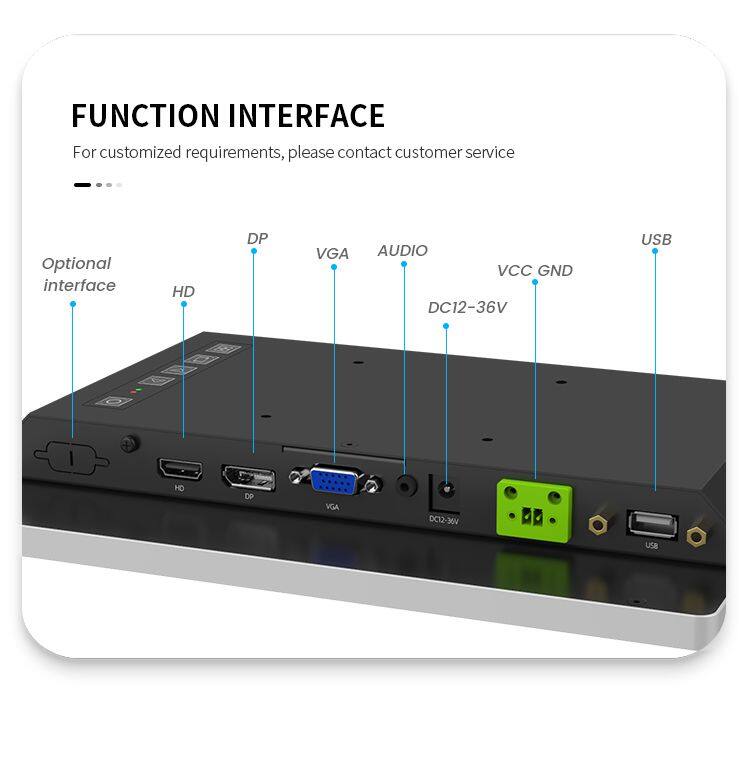

Functional interface | HD,DP,VGA,Audio | |
Work Environment | Operating Temperature/humidity | -10℃ to +60℃/ 0-80% relative humidity, no condensation |
Storage Temperature/humidity | -15℃ to +65℃/ 0-90% relative humidity, no condensation | |
Product Service | After service | one-year warranty and lifelong maintenance |
Customized service | OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
