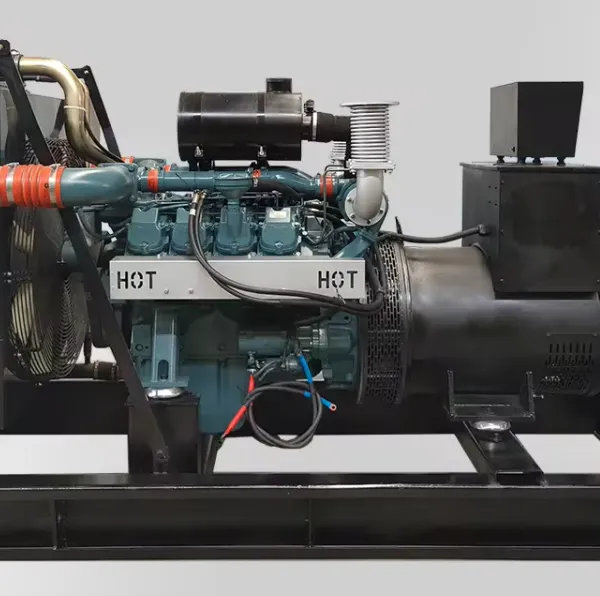

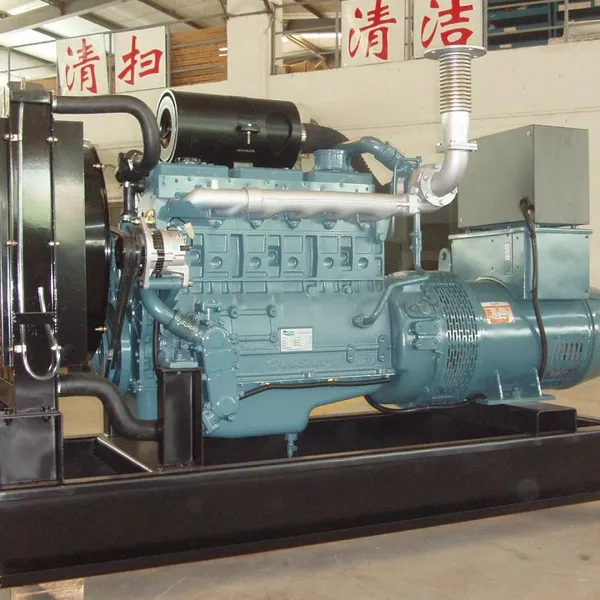

90kVA to 650kVA Doosan Generator Diesel for Land Use

90kVA to 650kVA Doosan Generator Diesel for Land Use thumbnail-1
90kVA to 650kVA Doosan Generator Diesel for Land Use thumbnail-2
90kVA to 650kVA Doosan Generator Diesel for Land Use thumbnail-3
90kVA to 650kVA Doosan Generator Diesel for Land Use photo-1
90kVA to 650kVA Doosan Generator Diesel for Land Use photo-2
90kVA to 650kVA Doosan Generator Diesel for Land Use photo-3
US$ 5000 - 150000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DOOSAN
Place of Origin:
China
Model Number:
SP-DS
Contact Supplier Request Quote Chat Now
Fuzhou Sinostar Power Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DOOSAN
Place of Origin China
Model Number SP-DS
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50/60hz
Rated Voltage 110-480V
Rated Power 90kVA to 650kVA

90kVA to 650kVA DOOSAN Generator Diesel for Land Use

Product feature:

-Engine:Doosan brand / water cooled series

-50HZ or 60HZ

-4,6,8,10,12 cylinders

-low fuel consumption

-Rated power factor:0.8(lagging)

-102/120,114/135,140/152,159/159mm bore/stroke

-standard starting method:24V electric starting

-cooling method: closed water-cooled

-lubricating methond:colsed lubricating

-stable governing rate=5%

-minimum oil consumptiong:=1.36g/kw.h

-minimum fuel consumption:=205g/kw.h

Alternator:

-Alternator:Stanford/Leroy sommer/STF series brushless alternator

-CLASS H insulation

-IP22 protection

-self-regulator by AVR

-50hz or 60hz

-100-400V,3 phase,4line,pf.0.8

-electric system:24V

-wave distort:less then 10%

Soundproof/Silent box:

-Excellent ventilation

-oil tank mounted on baseframe for 12 Hours working

-Highly Corrosion Resistant construction

-Excellent Access for Maintenance

-Security and Safety

-1m

Control panel:

-Automatic control panel(AMF),LCD display.

-Four protection systems

-Emergency stop

Optional:

- Trailer type

- Soundproof / water proof

- ATS(automatic transfer switch)

- Parallel system

- Remote system

Detailed specifications:

ENGINE BRAND MODEL OUTPUT ENGINE TYPE ALTERNATOR
STANDBY PRIME(RATED)
kVA kW kVA kW A LSA
DOOSAN SP-D100 100  80 90  72 130  D1146 LSA44.2VS3
SP-D138 138  110 125  100 181  D1146T LSA44.2S7
SP-D188 188  150 170  136 246  P086TI-1 LSA44.2L12
SP-D213 213  170 188  150 272  P086TI LSA46.2M5
SP-D270 270  216 250  200 362  P126TI LSA46.2L6
SP-D313 313  250 275  220 399  P126TI LSA46.2L9
SP-D344 344  275 313  250 453  P126TI-2 LSA46.2VL12
SP-D375 375  300 344  275 498  P158LE-2 LSA47.2VS2
SP-D413 413  330 375  300 543  P158LE-1 LSA47.2VS2
SP-D450 450  360 413  330 598  P158LE LSA47.2S4
SP-D500 500  400 450  360 652  P180LE-1 LSA47.2S5
SP-D550 550  440 500  400 725  P180LE LSA47.2M7
SP-D550-1 550  440 500  400 725  P180LE-S LSA47.2M7
SP-D625 625  500 563  450 815  P222LE LSA47.2M8
SP-D688 688  550 625  500 906  P222LE LSA47.2L9
SP-D715 715  572 650  520 942  P111LE-S LSA49.1S4
