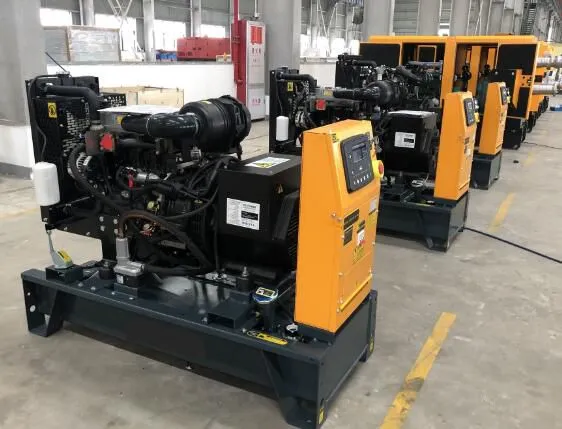

24kw 30kVA 50Hz Soundproof Diesel Power Generator by 1103A-33G PERKINS Engine for Home

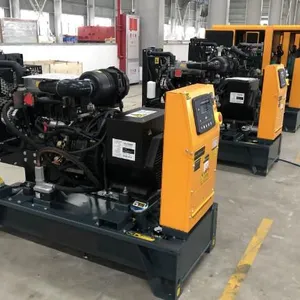

24kw 30kVA 50Hz Soundproof Diesel Power Generator by 1103A-33G PERKINS Engine for Home thumbnail-1
24kw 30kVA 50Hz Soundproof Diesel Power Generator by 1103A-33G PERKINS Engine for Home thumbnail-2
24kw 30kVA 50Hz Soundproof Diesel Power Generator by 1103A-33G PERKINS Engine for Home photo-1
24kw 30kVA 50Hz Soundproof Diesel Power Generator by 1103A-33G PERKINS Engine for Home photo-2
US$ 6000 - 9000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PERKINS
Place of Origin:
China
Model Number:
SP-P
Contact Supplier Request Quote Chat Now
Fuzhou Sinostar Power Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PERKINS
Place of Origin China
Model Number SP-P
Output Type AC Three Phase
Speed 1500/1600RPM
Frequency 50/60HZ
Rated Voltage 220-440V
Rated Power 24KW/30KVA

24kw 30kVA 50HZ Soundproof Diesel Generator Set By  1103A-33G engine

General Features:
Engine ( 1103A-33G )
Radiator 50OC max,fans are driven bybelt, with safety guard
12V charge alternator
Alternator: single bearing alternator
IP23,insulation class H/H
Absorber
Dry type air filter, fuel filter, oil filter
Main line circuit breaker
Standard control panel
batteries, rack and cable
ipple flex exhaust pipe, exhaust siphone,flange, muffler
User manual

Product details:

Model

SP-P33

 Standby Power

kVA

33

kW

26

 Prime Power

kVA

30

kW

24

 Output Voltage

V

400/230

 Oil Consumption

L/H

0.42

 Dimension For Open-type

mm

1740 X 730 X 1565

 Weight For Open-type

kg

762

 Dimension For Soundproof

mm

2330 X 1110 X 1830

 Weight For Soundprof

kg

1300

 Engine Model

1103A-33G

 No.of Cylinder

3 Cylinder in line

 Bore

mm

105

 Stroke

mm

127

 Displacement

L

3.3

 Cooling Fan Air Flow

m3/min

125

 Compress Air Flow

m3/min

2.16

 Exhaust Gas Flow

m3/min

5.7

 Exhaust Gas Temperature

ºC

500

 Lubrication Oil Capacity

L

7.8

 Cooling Water Capacity

L

10.2

 Starting Voltage

V

12

 Engine Max.Output Power

kW

31

 Alternator Model

PI 144G

 Alternator Brand

Stanford

 Rate Output

kVA

30

 Frequency

Hz

50Hz

 Altitude

M

≤1000

 Insulation

Class H

 Protection Grade

IP23

 Alternator for choice

Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.


Sales Promises
Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to the earlier
one.Service and parts are available from distributors in your location.

SPECIFICATIONS(9KVA--2200KVA)

 DIESEL GENSETS| 400V, 1500RPM, 50Hz
Genset Standby Prime Engine Alternator Dimension mm Dimension mm
Model kVA kVA Model Stanford Open Type Soundproof Type
SP-P10 10 9 403D-11G S0L1-H1 1300*690*1320 1710*880*1350
SP-P14 13.75 12.5 403A-15G1 S0L1-L1 1300*690*1320 1710*880*1350
SP-P16 16.5 15 403A-15G2 S0L1-P1 1300*690*1320 1710*880*1350
SP-P22 22 20 404A-22G1 S0L2-G1 1470*690*1320 1910*880*1450
SP-P32 30 27.5 404D-22TG S0L2-P1 1470*690*1320 1910*880*1450
SP-P34 33 30 1103A-33G S0L2-P1 1760*760*1380 2290*1060*1680
SP-P50 50 45 1103A-33TG1 S1L2-N1 1760*760*1380 2290*1060*1680
SP-P65 65 60 1103A-33TG2 S1L2-Y1 1760*760*1380 2290*1060*1680
SP-P68 68.7 62.5 1104A-44TG1 S1L2-Y1 1760*760*1380 2440*1060*1680
SP-P70 71.5 65 1104A-44TG1 UCI 224F1 1760*760*1380 2440*1060*1680
SP-P88 88 80 1104A-44TG2 UCI 224G1 2000*900*1550 2810*1140*1830
SP-P110 110 100 1104C-44TAG2 UCI 274C1 2150*900*1550 2810*1140*1830
SP-P150 148 135 1106A-70TG1 UCI 274E1 2410*930*1650 3250*1170*1800
SP-P165 165 150 1106A-70TAG2 UCI 274F1 2410*930*1650 3250*1170*1800
SP-P200 200 182 1106A-70TAG3 UCI 274G1 2550*930*1670 3590*1150*2050
SP-P220 220 200 1106A-70TAG4 UCI 274H1 2550*930*1670 3590*1150*2050
SP-P250 250 230 1206A-E70TTAG2 UCDI 274J1 2580*930*1670 3590*1310*2050
SP-P275 275 250 1506A-E88TAG3 UCDI 274K1 2580*930*1670 3590*1310*2050
SP-P330 330 300 1506A-E88TAG5 S4L1D-D41 2800*1000*1690 3890*1460*2150
SP-P400 400 350 2206C-E13TAG2 S4L1D-E41 3100*1120*1788 4230*1460*2150
SP-P450 450 400 2206C-E13TAG3 S4L1D-F41 3100*1120*1788 4230*1460*2150
SP-P500 500 450 2506C-E15TAG1 S4L1D-G41 3400*1270*1974 4630*1660*2250
SP-P550 550 500 2506C-E15TAG2 S5L1D-C4 3400*1270*1974 4630*1660*2250
SP-P660 660 600 2806C-E18TAG1A HCI 544E1 3600*1400*2100 5030*1860*2550
SP-P700 700 635 2806A-E18TAG2 HCI 544FS1 3600*1400*2100 5030*1660*2550
SP-P715 715 650 2806A-E18TAG2 S5L1D-F41 3600*1400*2100 5030*1660*2550
SP-P825 825 750 UK 4006-23TAG2A S5L1D-H1 3965*1710*2200 ISO 20'ft GP
SP-P825 825 750 India 4006-23TAG2A S5L1D-H1 3965*1710*2200 ISO 20'ft GP
SP-P880 880 800 UK 4006-23TAG3A S6L1D-C4 3965*1710*2200 ISO 20'ft GP
SP-P880 880 800 India 4006-23TAG3A S6L1D-C4 3965*1710*2200 ISO 20'ft GP
SP-P1100 1100 1000 UK 4008TAG2 S6L1D-E5 4650*2046*2300 ISO 20'ft GP
SP-P1100 1100 1000 India 4008TAG2 S6L1D-E4 4650*2046*2300 ISO 20'ft GP
SP-P1250 1250 1125 UK 4008-30TAG3 S6L1D-F4 4650*2046*2300 ISO 20'ft GP
SP-P1250 1250 1125 India 4008-30TAG3 S6L1D-F4 4650*2046*2300 ISO 20'ft GP
SP-P1375 1375 1250 UK 4012-46TWG2A S6L1D-G4 4700*1780*2400 ISO 20'ft HQ
SP-P1375 1375 1250 India 4012-46TWG2A S6L1D-G4 4700*1780*2400 ISO 20'ft HQ
SP-P1650 1650 1500 UK 4012-46TAG2A S7L1D-C41 5000*2200*2850 ISO 20'ft HQ
SP-P1650 1650 1500 India 4012-46TAG2A S7L1D-C41 5000*2200*2850 ISO 20'ft HQ
SP-P1800 1812.5 1650 UK 4012-46TAG3A S7L1D-D41 5100*2200*2850 ISO 20'ft HQ
SP-P1800 1812.5 1650 India 4012-46TAG3A S7L1D-D41 5100*2200*2850 ISO 20'ft HQ
SP-P1875 1875 1705 UK 4012-46TAG3A S7L1D-E41 5100*2200*2850 ISO 20'ft HQ
SP-P1875 1875 1705 India 4012-46TAG3A S7L1D-E41 5100*2200*2850 ISO 20'ft HQ
SP-P2000 2000 1850 UK 4016TAG1A S7L1D-F41 5400*2650*2650 ISO 40'ft HQ
SP-P2000 2000 1850 India 4016TAG1A S7L1D-F41 5400*2650*2650 ISO 40'ft HQ
SP-P2000(W-A) 2000 1850 4016-61TRG1 S7L1D-F41 5400*2650*2650 ISO 40'ft HQ
SP-P2250(W-A) 2250 2050 4016-61TRG2 S7L1D-F41 5400*2650*2650 ISO 40'ft HQ
SP-P2250 2250 2050 UK 4016TAG2A S7L1D-G41 5400*2650*2650 ISO 40'ft HQ
SP-P2250 2250 2050 India 4016TAG2A S7L1D-G41 5400*2650*2650 ISO 40'ft HQ
SP-P2500 2500 2272.5 UK 4016-61TRG3 S7L1D-J4 or 6000*2700*3400 ISO 40'ft HQ
PI 734H1
SP-P2500 2500 2272.5 India 4016-61TRG3 S7L1D-J4 or 6000*2700*3400 ISO 40'ft HQ
PI 734H1



Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.
