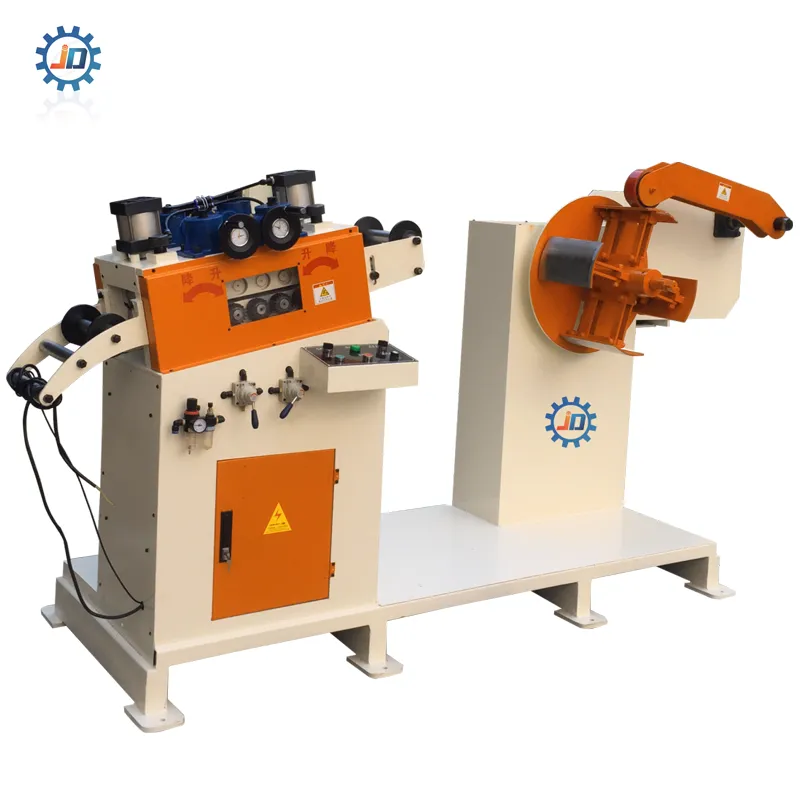

Precision Type Decoiler With Straightener Two-in-one High Precision Variable Straightener
US$ 2000 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Express Machinery
Place of Origin:
China
Model Number:
GL-600D
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days
Related Products
-
Punching Steel Bar Decoiler and Straightening Two-in-one Equipment Two-in-one Straightener Machine PriceUS$ 2000 - 3000MOQ: 1 Set -
Automatic High-precision Three-in-one High Thickness Straightener Feeder Punch Three-in-one High Speed Feeder MachineUS$ 2000 - 3000MOQ: 1 Set
-
Punch Sheet Metal Material Rack Machine Heavy DutyUS$ 2000 - 3000MOQ: 1 Set
-
Precision Type Decoiler With Straightener Two-in-oneUS$ 2000 - 3000MOQ: 1 Set
-
3-in-1 Mid-thickness Straightener Feeder Equipment Three-in-one Straightener Feeder PriceUS$ 2000 - 3000MOQ: 1 Set
Brand Name
Express Machinery
Place of Origin
China
Model Number
GL-600D
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1year
Weight
5000kg
Dimension(L*W*H)
5*2.2*2.5M
Voltage
330v
Condition
New
Power(W)
10kw
CNC or Not
Normal
Power Source
Pneumatic
| Model | GL-200D | GL-300D | GL-400D | GL-500D | GL-600D |
| Width of Material (mm) | 200 | 300 | 400 | 500 | 600 |
| Thickness of Material (mm) | 1-6mm | ||||
| Coil Weight (Kg) | 3000kg | 3000kg | 3000kg | 5000kg | 5000kg |
| Coil I.D.(mm) | 450-530mm | ||||
| Coil O.D.(mm) | 1500mm | ||||
| Straightener Motor(HP) | 5HP | 5HP | 7.5HP | 7.5HP | 7.5HP |
| Feeding Speed (m/min) | 15M/Min | ||||
| Machine Weight (kg) | 3200kg | 3500kg | 4000kg | 4500kg | 5000kg |
| Power Supply | 220V&380V | ||||
| Uncoil Expansion | Hydraulic Expansion | ||||
| Machine Dimension(M) | 5*1.9*2.5M | 5*1.9*2.5M | 5*2.0*2.5M | 5*2.1*2.5M | 5*2.2*2.5M |
| Features and structure The control box uses Japanese electronic parts, with few faults and long life. The two-in-one thick plate leveling machine integrates unwinding and leveling functions. The unwinding speed is controlled by a photoelectric switch. There is no damage to the material surface during operation. It is suitable for unwinding and leveling of 1.0-6.0mm thick plate materials. Suitable for all kinds of production, quick change of coils, saving time and reducing production costs. Use automatic expansion coil device, automatic control of feeding, high safety, labor saving, Precision structural design, suitable for heavy industrial precision product needs. Maintenance and management are simplified, and the safety of the operator is enhanced. The roller is made of solid bearing material, heat treated, chrome-plated and then ground, with high hardness, excellent wear resistance and extremely long life. This machine is equipped with a thick sheet pressing device for better effect. This machine is equipped with a frequency converter. This machine can be designed and manufactured according to customer's special requirements | |||||
| Typical applications: Automated unwinding and leveling of thick plate materials such as automotive parts, fasteners, stapler hardware, and caster hardware. | |||||
| Type | Feeding Width(mm) | ||||||||
| Feeding Thickness (mm) | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm | |
| 1.0-2.5mm | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | |
| 3.2mm | |||||||||
| 4mm | 500 | 550 | 600 | 700 | |||||
| 4.5mm | 400 | 400 | 400 | 420 | 450 | ||||
| 5mm | 250 | 300 | 300 | 300 | 300 | 350 | 350 | ||
| 6mm | 180 | 180 | 200 | 200 | 200 | 200 | 200 | 180 | |
| Features 1. The main shaft adopts hydraulic expansion system to tighten the material with large tightening force and good safety. 2. There are 7 leveling rollers (arranged 4/3 on ￠85), made of high-strength rolling bearing steel GCr15, tempered and quenched by frequency modulation. The hardness can reach HRC60~62° after hard chrome plating on the surface, and the dimensional accuracy can reach 0.01mm, ensuring high-precision leveling. 3. The feeding and relaxation adopts pneumatic compression and relaxation, which can generate enough pulling force to send the material to the leveling roller and rotate synchronously. 4. A folding device is installed at the front end of the leveling feeding roller, and the movable roller is pulled by the cylinder. When the material is first fed, it is not easy to enter the straightening machine due to the bending of the material head. The material head is forced into the flattening device and then sent to the straightening machine. 5. The leveling roller uses a high-power motor (5-16HP) with a worm gear reducer (30:1) to transmit the leveling material to the leveling machine through a sprocket chain, which can generate a large leveling force. The operating speed of the motor is controlled by the inverter, which is convenient and reliable. 6. The upper and lower leveling rollers use large-modulus gear synchronous transmission, which has a large correction force, does not rub the material surface, and will not scratch the material. The fine-tuning part uses a worm gear fine-tuning device. It has high adjustment accuracy, high pressure, and easy operation. |
