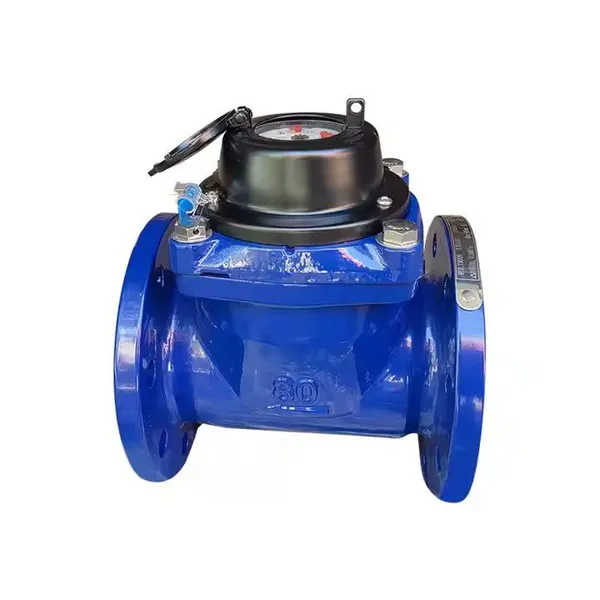

Help CenterManufacture Price Woltman Type Dry Dial Cast Iron Body Flange Water Meter
Related Products
-
65mm Irrigation Cast Iron Cold Woltmann Water MeterNegotiableMOQ: 1 Ton -
ISO 4064 Class B Smart 50mm Removable Woltman Water MeteNegotiableMOQ: 1 Ton
-
Dn50-300 Bulker Flow Meter Woltmann Type Flange Water MeterNegotiableMOQ: 1 Ton
-
Factory Price Woltman Type Irrigation Water Meter Flanged Type Water MeterNegotiableMOQ: 1 Ton
-
LXLC(R)-50~300(mm) Factory Price Removable Dry Dial Type Bulk Meter Woltman Water Meter ManufacturerNegotiableMOQ: 1 Ton
Application
Measuring the volume of cold (hot) water passing through the pipeline.
Note
This water can be used for a remote reading transmission system as equipped with a built-in sensor.
Feature
a)Removable element structure,easy installation and maintenance,registerfor universal use within this range detachable without removing the meter from the pipeline;
b)Dry-dial,magnetic driven,with sensitive action,small pressure loss;
c)Vacuum sealed register ensures the dial face keep free from fog and reading clearly in a long time;
d)High quality materials for steady and reliable characteristic;
e)echnical data conform to ISO 4064 Class B,and ISO4064-1:2005.
Working condition
Water temperature:0.1℃~50℃(cold water meter) 0.1℃~90℃(hot water meter)
Water pressure:≤1.0MPa(1.6MPa)
Maximum permissible errors
From Q1 to Q2:±5%
From Q2 to Q4:±2%(±3% for water meter)
MAIN TECHNICAL SPECIFICATIONS
Type |
Size(mm) |
Q3/Q1 |
Overload Flow |
Permanent Flow |
Transitional Flow |
Min. Flow |
Min. Reading |
Max. Reading |
m3/h |
M3 |
|||||||
LXLC-50 |
50 |
50 |
31.25 |
25 |
2 |
0.5 |
0.0005 |
999,999 |
LXLC-65 |
65 |
50 |
40 |
3.2 |
0.8 |
0.0005 |
999,999 |
|
LXLC-80 |
80 |
78.75 |
63 |
5.04 |
1.26 |
0.002 |
999,999 |
|
LXLC-100 |
100 |
125 |
100 |
8 |
2 |
0.002 |
999,999 |
|
LXLC-125 |
125 |
200 |
160 |
12.8 |
3.2 |
0.002 |
999,999 |
|
LXLC-150 |
150 |
312.5 |
250 |
20 |
5 |
0.002 |
999,999 |
|
LXLC-200 |
200 |
500 |
400 |
32 |
8 |
0.002 |
999,999 |
|
LXLC-250 |
250 |
787..5 |
630 |
50.4 |
12.6 |
0.02 |
9,999,999 |
|
LXLC-300 |
300 |
1250 |
1000 |
80 |
20 |
0.02 |
9,999,999 |
|
DIMENSION
Type |
Size |
Length |
Height |
Connecting flange |
||
mm |
ΦD1 outside diameter |
ΦD2Bolt circle diameter |
Connecting Bolts(n-M) |
|||
LXLC-50 |
50 |
200 |
261 |
165 |
125 |
4-M16 |
LXLC-65 |
65 |
200 |
271 |
185 |
145 |
4-M16 |
LXLC-80 |
80 |
225 |
276 |
200 |
160 |
8-M16 |
LXLC-100 |
100 |
250 |
289 |
220 |
180 |
8-M16 |
LXLC-125 |
125 |
250 |
299 |
250 |
210 |
8-M16 |
LXLC-150 |
150 |
300 |
319 |
285 |
240 |
8-M20 |
LXLC-200 |
200 |
350 |
346 |
340 |
295 |
8-M20(1.0MPa) |
12-M20(1.6MPa) | ||||||
LXLC-250 |
250 |
400 |
434 |
395 |
350 |
12-M20(1.0MPa) |
450 |
434 |
405 |
355 |
12-M24(1.6MPa) |
||
LXLC-300 |
300 |
450 |
459 |
445 |
400 |
12-M20(1.0MPa) |
500 |
459 |
460 |
410 |
12-M24(1.6MPa) |
||
