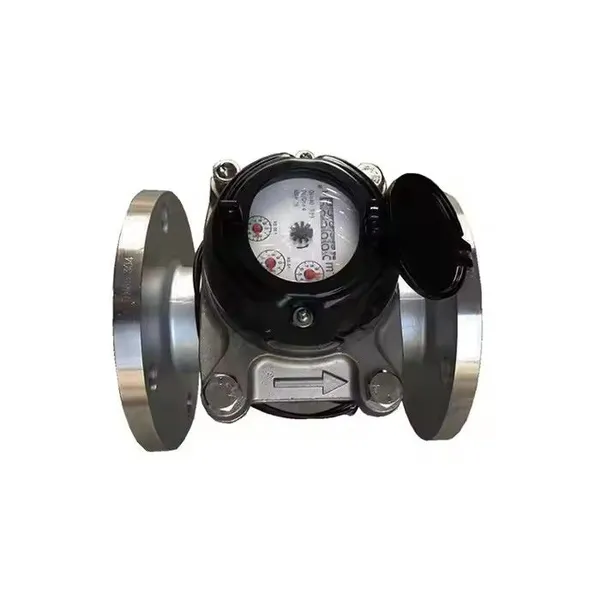

Help CenterFactory Large Diameter Stainless Steel SS304 Woltmann Type Flanged Water Meter
Related Products
-
China Professional Supplier Stainless Steel Woltman Flanged Water MeterNegotiableMOQ: 1 Ton -
DN32mm Stainless Steel 304 Multi Jet Water Meter Dry Dial , Pulse Output Water MeterNegotiableMOQ: 1 Ton
-
High Accuracy MBus RS485 RS232 Pulse Output Ultrasonic Heat Water Flow MeterNegotiableMOQ: 1 Ton
-
China Manufacturer Black PP Plastic Water Meter Protect Box With KeyNegotiableMOQ: 1 Ton
-
High Quality Removable 15mm-20mm Plastic Protection Water Meter Box With KeyNegotiableMOQ: 1 Ton
Application:
--Measuring the volume of cold (hot) water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance;
--Dry-dial, Magnetic drive;
--Large flow capacity, small pressure loss;
--Resist water hummer and pollution;
--Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
--Selected high quality materials for steady and reliable characteristic;
--Technical data conform to international standard ISO 4064.Class B
The meters can be equipped with a kind of remote transmission device, the pulse generating volume could be 10,1000 or 10000 L/pulse.
Water temperature: 0.1ºC~50ºC (0.1ºC~90ºC for hot water meter)
Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum permissible errors:
in the lower zone from qmin inclusive up to but excluding qt is ±5%
in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
